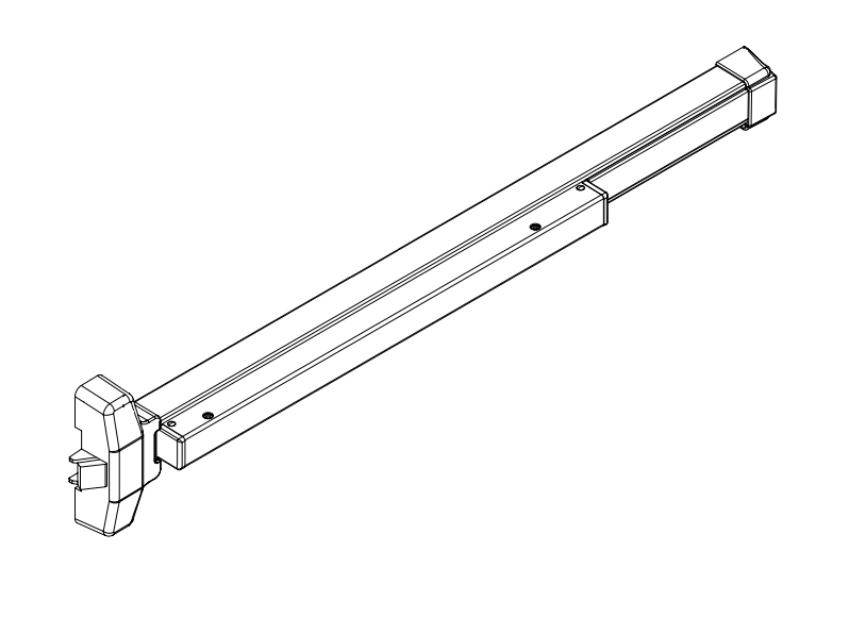

Falcon Door Hardware Parts 19 and F-19 rim exit device

Diagram List

Fire and Panic

Falcon Door Hardware Parts 19 and F-19 rim exit device

19 Series: Optional Equipment

Falcon Door Hardware Parts 19 and F-19 rim exit device

Products by Part Type

Exit Device General Parts

• Center Case Kits & Parts
  • 650307, 19-R Series Head Assembly
  • 650374, 19-R Fire Rated Center Case
  • 650384, 19-R Series Center Case Cover Kit, with Screws
• Cover Plate Kits & Parts
  • 650297, 19 Series Hex Dogging Kit, 4 Ft. Door
  • 090085, 227 Dog Key 5/32", Package of 10
  • 060110, 19 Series Panic Dogging Pin (Package of 10)
  • 650360, F-19 Channel Cover Plate 3 Ft Door
  • 650361, F-19 Channel Cover Plate 4'
  • 650060, 19 Cylinder Dogging Kit 3’ Device
  • 650063, 19 Cylinder Dogging Kit 4’ device
• Mechanism Case & Parts
  • 4107, 19 Channel 3’ Door
  • 4108, 19 Channel 4’ Door
• End Cap Kit & Parts
  • 650343, 19 Series Channel End Cap, with Screws
  • 650320, 19 Series End Cap Bracket, with Sex Nut Bolts
• Mounting Pkg.
  • 650328, 19-R Mounting Package
  • 650329, F-19-R Mounting Package
• Strikes
  • F570 Strike, 19-R Panic and Fire Devices - Std
  • F490 Roller Strike
  • 565 Low Profile Rim Strike
  • 571 Double Door Rim Strike
  • 571A, 19/XX-R Series Inactive Leaf, 2-3/8 In. Backset

Exit Device Mechanical Options Parts

• CD - Cylinder dogging
  • 650060, 19 Cylinder Dogging Kit 3’ Device
  • 650063, 19 Cylinder Dogging Kit 4’ device

Exit Device Accessories

• Cylinders
  • 985, 1-1/8" Mortise Cylinder, Falcon MA Cam (5622-STD (F1)), 6-Pin G Keyway, Keyed Different, 2 Cut Keys
  • 986, 1-1/4" Mortise Cylinder, Falcon MA Cam (5622-STD (F1)), 6-Pin G Keyway, Keyed Different, 2 Cut Keys
  • 951, Rim Cylinder
• Shim Kits
  • 650022, 19-R 1/4” Rim Shim Kit
