• Detex 09D/DV Series Trim

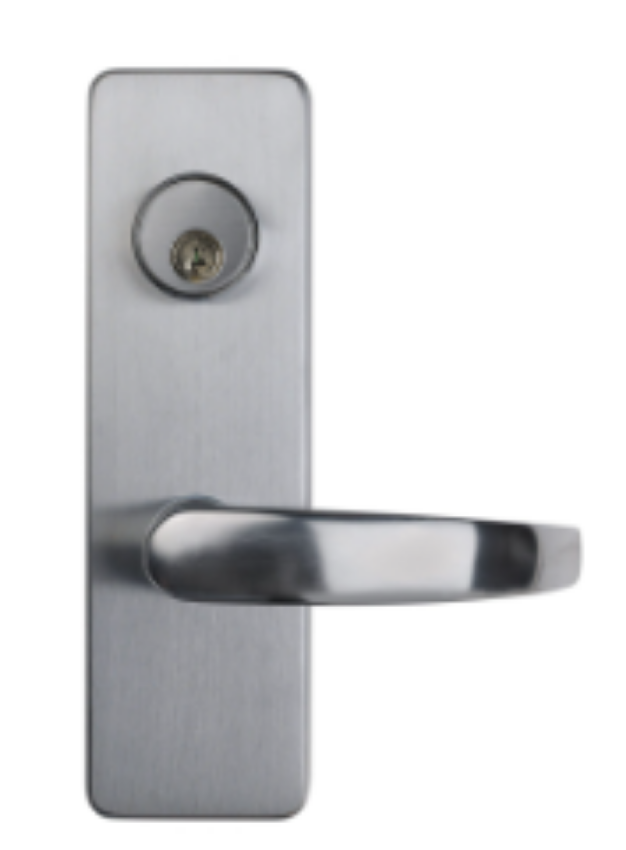

Detex 09D/DV Series Trim

Looking to buy a new set? Buy here

Diagram List

Detex 09D/DV Series Parts Diagram

Detex 09D/DV Series Trim

Products by Part Type

Exit Device General Parts

• Lever Arms Kits & Parts
  • 106264-7 Lever Assy, Q, 626
  • 106264-14 Lever Assy, Q, 693
  • 106264-15 Lever Assy, Q, 695
  • 101376-7 Lever Assy, S, 626
  • 101376-14 Lever Assy, S, 693
  • 101376-15 Lever Assy, S, 695
  • 101375-7 Lever Assy, U, 626
  • 101375-14 Lever Assy, U, 693
  • 101375-1 Lever Assy, U, 695
  • 105673-1 Lever Trim Hardware Kit, Rim/SVR
  • 105673-3 Lever Trim Hardware Kit, CVR
• Cylinders
  • 102281-7 Mortise Cylinder, 5 pin
  • 103800-626 Mortise Cylinder Housing, SFIC, 7 pin
  • 100572-9 Cylinder Collar, Short
  • 100752-9 Cylinder Collar, Tall
  • 100754 Cylinder Plate Exit Trim
  • 100753 Cover Plate
• Escutcheon
  • 101373-9 Escutcheon Assy, 08W/09W, BP1
• Internal Trim Mechanism Parts
  • 103047 Clutch Spring
  • 103043 Bottom Gear, Wide
  • 103044 Torque Plate, Wide
  • 103994 Key, Shear Pin, Steel
  • 100821 Washer Clutch
  • 101997 Return Spring, Locking Bar Return Spring, for 09 Function Trim
  • 100766 Return Spring
  • 101509 Return Spring Helper
  • 101436 Rack Assembly
  • 100762 Top Gear
  • 101993 Lock Slide
  • 101478 Shaft Extension Assembly, 08/09BN Trim
  • 100771 Stop, Rotational
  • 100777 Hex Stand Off
  • 100753 Cover Plate
• Fasteners
  • 106603 Washer, Flat, 1"x0.02 THK, J lever only
  • 100851 Washer, Flat, 1"x0.06 THK, All except J lever
  • 100775 Flat Washer
  • 105964 Wave Washer
• Tailpiece
  • 106694 Tailpiece Assembly, D Trim, CVR Universal
• Screw Packs
  • PP-5305-108 Screw, Mach, 10-24 x 1/2 PFH
  • 102536-1 Screw, 10-24, Custom
  • PP-5378-106 Screw, Mach, 8-32 x 3/8 PPH
  • PP-5367-108 Screw, Mach, 6-32 x 1/2 PPH
• Dogging Parts
  • 100783 Cylinder Hex Nut
