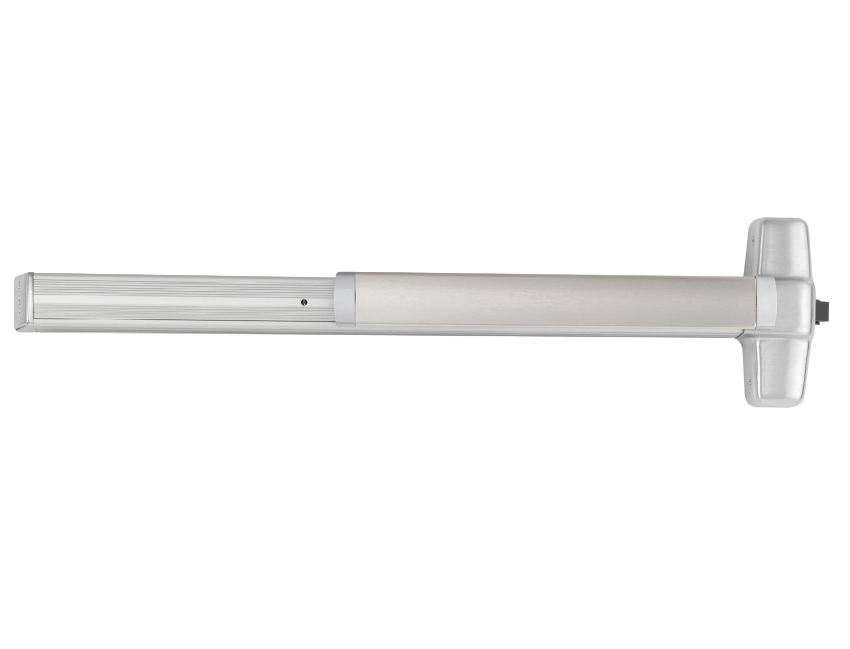

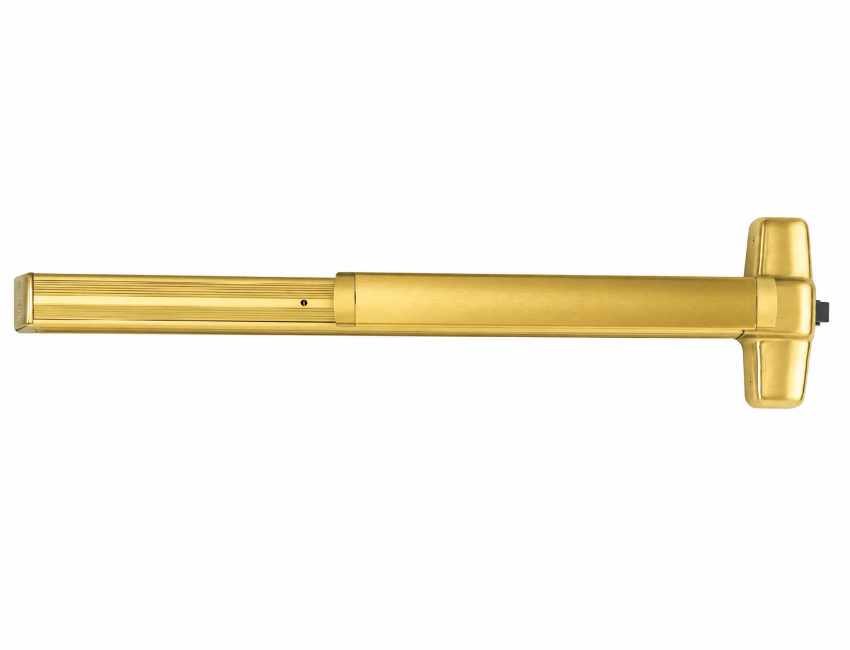

Product Overview:

• XP98/99 Rim exit devices are designed for single and double doors with mullion that require increased security.
• The “smart” latch changes shape when subjected to external forces.
• This design enables the exit door to withstand an external attack and remain secure.
• Additionally, the patented latch bolt design provides greater, longer-lasting latch bolt to strike contact which is not easily affected by the twisting motion of a weakened frame, resulting in an opening that will remain strong.
• Devices are certified to ANSI/BHMA A156.3 Grade 1 and UL listed for panic exit hardware.
• The rim device is non-handed except when the following device options are used: SD (special dogging) or -2 (double cylinder).
• Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).

Click Here for XP98/99EO-F Rim Fire Rated Exit Device

Specifications:

Device Functions:

• • Device ships EO/DT/NL; Field selectable;
  • For TP, K or L remove NL drive screw from device

Device Length

• • 36" - 2'4" to 3' (711mm to 914mm) Door size
  • 48" - 2'10" to 4' (864mm to 1219mm) Door size

Device Centerline from finished floor

• • 39 13/16" (1011mm)
  • 39 11/16" (1008mm) with mullion

Center case

• • 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case

• • 2 1/4" x 2 1/4" (57mm x 57mm)

Projection

• • Pushbar neutral – 3 13/16" (97mm)
  • Pushbar depressed – 3 1/16" (78mm)

Latch bolt

• • Deadlocking, 3/4" (19mm) throw

Finishes

• • 605 (US3), 606 (US4), 612 (US10), 625 (US26), 626 (US26D) / 626AM, 628 (US28), 710 (313), 711 (315), 613 (US10B) and 643e (619 (US15) and 630 (US32D) available with 98 Series only)

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)

Features and Options

Electrified Options

• • LX-LC - Latch bolt monitor switch, low current
  • RX - Request to exit
  • RX2 - Double request to exit
  • ESL - Emergency secure lockdown
  • QEL - Quiet electric latch retraction
  • CXA - Chexit delayed exit
  • ALK - Alarm exit kit
  • WP-RX - Waterproof request to exit (option available to order with Outdoor Defense)
  • CON - Allegion Connect

Mechanical Options

• • -2 - Double cylinder
  • AX - Accessible device
  • GBK - Glass bead kit
  • SNB - Sex bolts
  • SEC - Security screws
  • WH - Weep holes (option available to order with Outdoor Defense)

Dogging Features

• • Hex key dogging standard
  • Comes standard on 98/99 rim exit devices.

Dogging options

• • HD - Hex Dogging (Standard)
  • CD - Cylinder dogging
  • CD-CXA - Chexit cylinder dogging
  • CDSI - Cylinder dogging with security indicator
  • HDSI - Hex dogging with security indicator
  • SD - Special center case dogging
  • LD - Less dogging
  • DI - Dogging indicator
  • CI - Cylinder dogging indicator

Strike

• • 909 Strike - Ships standard for single or double doors. (Dull Black)
