Product Overview

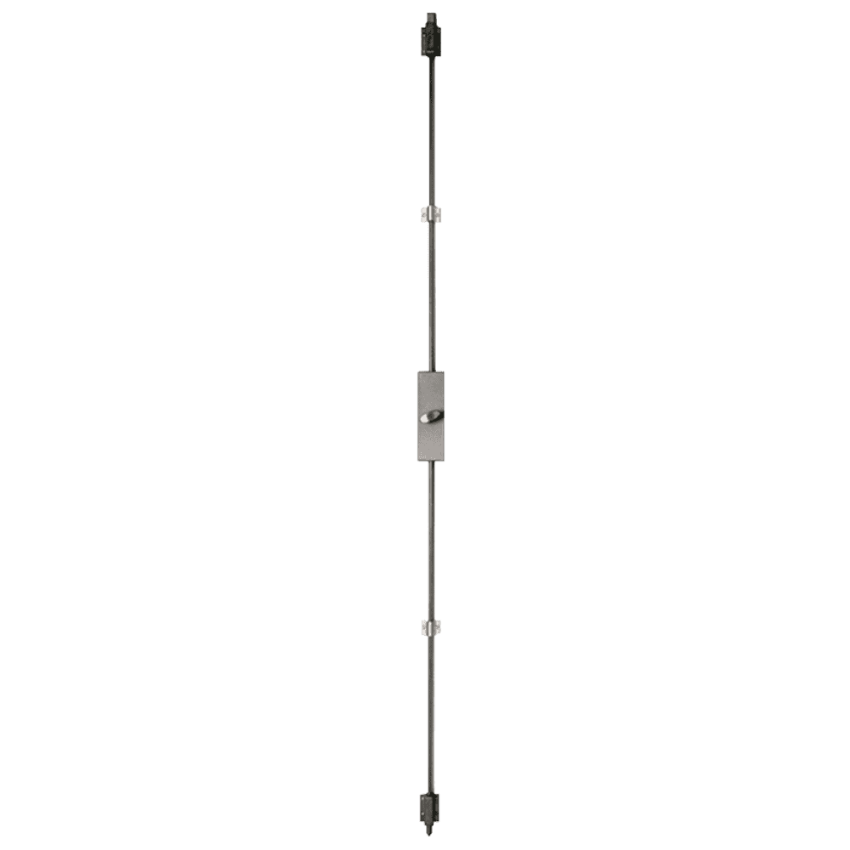

The Detex VRA-143 Vertical Rod Assembly is a commercial two-point locking accessory manufactured by Detex for use with the Detex ECL-230D Exit Control Lock system. It provides top and bottom latching on outswinging double doors and may also be installed on single doors where two-point locking is required instead of the standard single-point latch provided by the exit control lock. The surface-mounted design eliminates the need for mortising, while the rods automatically retract when the ECL-230D is activated for authorized egress.

We are your trusted source for commercial door hardware, security hardware, access control products, and OEM Detex replacement components.

Features

• Heavy-duty 3/8" diameter bolts
• Two-point locking security
• Surface-applied installation (no mortise required)
• Automatically released when the ECL-230D device is activated
• Non-handed design
• Accommodates 80"–120" doors
• Steel rods and housing with zinc plating
• UL Listed Exit Hardware

Benefits

• Extra security through top and bottom latching
• Easy installation
• Improved exit control for outswinging doors
• Durable commercial-grade construction
• Suitable for various door configurations
• Reliable emergency egress operation

Compatibility

• Detex 230 Series Exit Control Locks

Variation Descriptions

VRA-143B

• • Secures a single door or a pair of doors using one ECL-230D Exit Control Lock.
  • Allows outside access to the active door.
  • Active leaf opens both doors when activated.

VRA-143C

• • Designed for paired doors using two ECL-230D Exit Control Locks.
  • Active leaf opens first.
  • Inactive leaf remains locked until the ECL-230D is activated.
  • Provides enhanced security for double-door applications.

VRA-143D

• • Uses two ECL-230D Exit Control Locks and two VRA assemblies.
  • Each door leaf operates independently.
  • Ideal for facilities requiring separate operation of each door.
