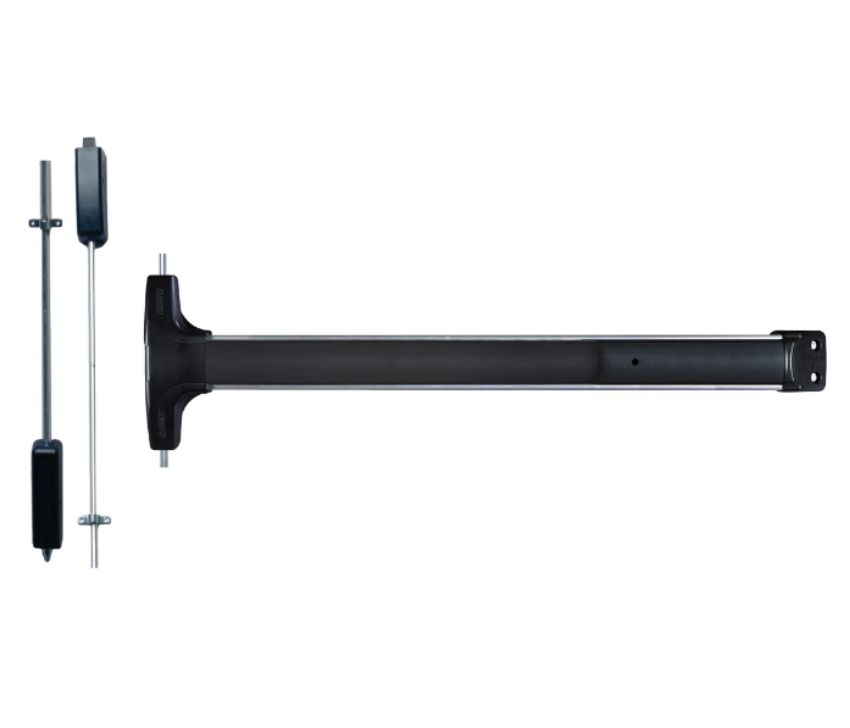

Detex V50/V51 SVR Exit Device

Picture of V50/V51 SVR Exit Device

Detex

SKU: V50/V51

Detex V50/V51 SVR Exit Device

The V50 Series surface vertical rod exit device and V51 Series top rod exit device provide heavy-duty panic and fire exit performance for all types of double doors without a mullion. They feature a patented mounting plate and strike locator system for fast, accurate installation in an economical exit device.
*
*
  • 628 / US28 - Aluminum Anodized
    628 / US28 - Aluminum Anodized
    Not available
  • 711 / 315 - Black Anodized
    711 / 315 - Black Anodized
    Not available
*

Features

  • Stainless steel 3/4" deadlocking top latch bolt
  • Bottom drop bolt, 5/8" dia. x 5-5/8" long secures into strike plate
  •  Handed, field reversible
  • Field sizable
  • 1/8 turn dogging
  • Ribbed aluminum rail extrusion
  •  Impact resistant ABS and anodized surfaces
  • Modular design accepts a variety of outside trims and functions
  • Standard and narrow stile pull trims available

Benefits

  • Priced to be the best value for durable and attractive loss prevention panic hardware
  • Patented mounting plate and strike locator replaces paper templates
  • Minimal door prep saves time and money
  • Fast and easy installation saves time and money
  • Angled end cap deflects damage away from device
  • Fits any door in almost any décor
  • Outside trims are easily changed or rekeyed without removing device from door

Mechanical Options

  • F - Fire Rated
  • H - Hurricane Rated
  • FH - Fire-Rated / Hurricane Rated
  • W - Weatherized

Electrical Options

  • EA - Exit Alarm
  • EB - Exit Alarm with 9 volt Battery

Custom Length

  • 36 - Fits 36" Door Width (Std.)
  • 48 - Fits 48" Door Width

Dogging Option

  • HD - Hex Dogging (Std.)
  • CD - Cylinder Dogging
  • LD - Less Dogging

Finishes

  • 628 / US28 - Aluminum Satin
  • 711 / / 30 - Satin Black Anodized

Technical Information

  • Door Stile - Fits 3-1/2" stile doors (Std.)
  • Door Stile - Fits 2" narrow stile doors - specify NS
  • Fasteners - Machine and Self-

$1,302.00
$1,054.62
minus minus

Catalogs
