Detex V40 Rim Exit Device

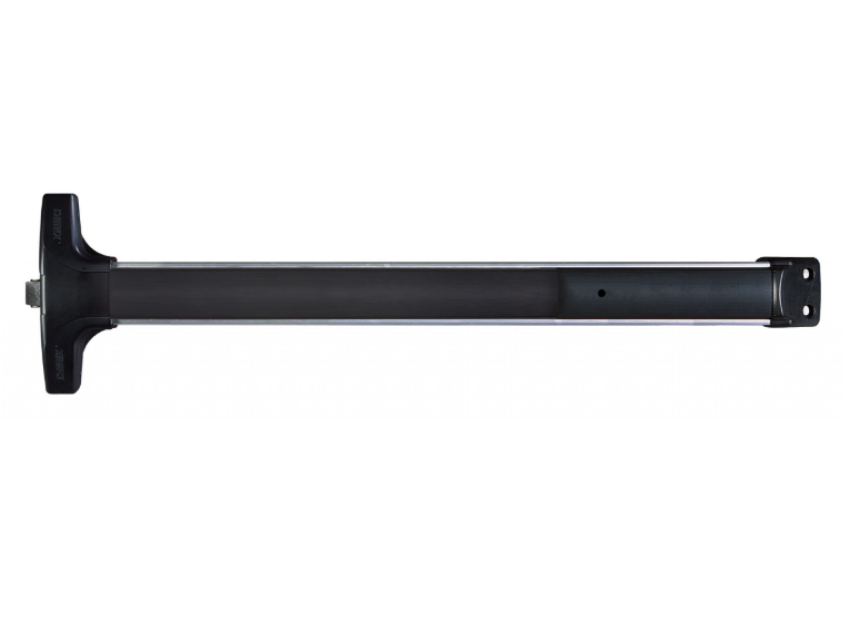

Picture of V40 Rim Exit Device

Detex

SKU: V40

Detex V40 Rim Exit Device

The V40 Series rim exit device delivers secure and durable panic and fire exit performance at an economical price. Designed for all types of single and double doors with mullions, it features a patented mounting plate and strike locator system for fast and accurate installation.
*
  • 628 / US28 - Aluminum Anodized
    628 / US28  - Aluminum  Anodized
    Not available
  • 711 / 315 - Black Anodized
    711 / 315 - Black Anodized
    Not available
*

Features

  • Covers a 161 door prep
  • 1/8 turn hex key dogging
  • Withstands over 1400 pounds of static pull force for greater security
  • Stainless steel, 3/4" deadlocking Pullman-type latch bolt
  • Heavy-duty ribbed aluminum rail extrusion
  • Modular design accepts a variety of outside trims and functions
  • Non-handed
  • Field sizeable
  • High impact ABS and anodized surfaces
  • Standard and narrow stile pull trims available

Benefits

  •  Priced to be the best value for durable and attractive loss prevention panic hardware
  • Patented mounting plate and strike locator replaces paper templates
  • Minimal door prep saves time and money
  • Fast and easy installation saves time and money
  • Fits almost any door in any décor
  • Outside trims are easily changed or rekeyed without removing device from door
  • Angled end cap deflects damage away from device

Mechanical Options

  • F - Fire Rated
  • H - Hurricane Rated
  • FH - Fire-Rated / Hurricane Rated
  • W - Weatherized

Electrical Options

  • EA - Exit Alarm
  • EB - Exit Alarm with 9 volt Battery

Custom Length

  • 36 - Fits 36" Door Width (Std.)
  • 48 - Fits 48" Door Width

Dogging Option

  • HD - Hex Dogging (Std.)
  • CD - Cylinder Dogging
  • LD - Less Dogging

Finishes

  • 628 / US28 - Aluminum Satin
  • 711 / / 30 - Satin Black Anodized

Technical Information

  • Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
  • Door Thickness - Fits standard 1-3/4” - 2-1/4”
  • Single Door Stile - Fits 3-1/2” minimum stile doors with 99 surface strike (Std.)
  • Pairs of Doors Stile - Fits 4” minimum stile doors with 99 surface strike
  • Door Stile - Fits 2” narrow stile doors - specify NS
  • Machine and Self-Drilling Screws (Std.)
$626.00
$507.06
