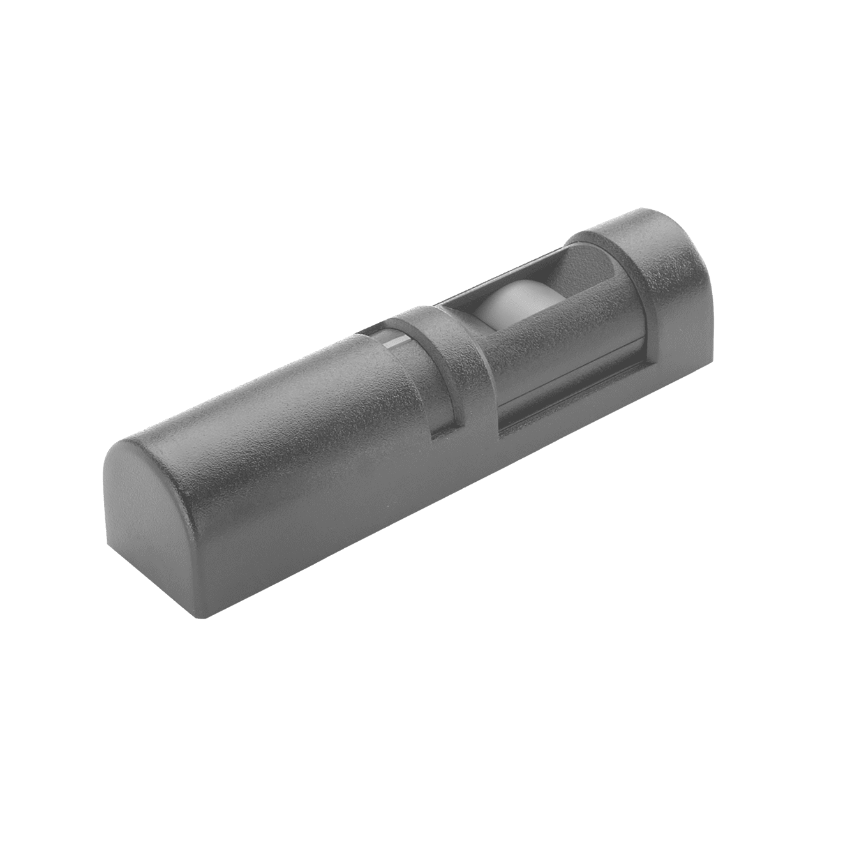

Schlage Scan-2B Motion Sensor, Black

Schlage Scan-2B Motion Sensor, Black

Schlage

SKU: Scan-2B

Schlage Scan-2B Motion Sensor, Black

Available (3 - 4 Weeks)

Schlage Scan-2B Motion Sensor, Black is a passive infrared detector for request-to-exit applications, with two Form C relay contacts and adjustable relay latch time.

Schlage Scan II-B is a black passive infrared motion sensor designed specifically for request-to-exit applications in electronic access control systems. The Scan II-B is intended for indoor use and can be mounted at heights from 7 to 15 feet. The black enclosure is made from high-impact ABS plastic.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: Scan-2B (Scan II-B)
Product Name: Motion Sensor, Black
Color: Black
Sensor Type: Passive Infrared
Mounting: Wall or Ceiling
Mounting Height: 7-15 ft.
Relay Contacts: Two (2) Form C
Relay Rating: 2.0 A @ 30 VDC or VAC maximum for DC resistive loads
Relay Latch Time: 0.5–64 seconds
Relay Mode: Resettable or non-resettable
Relay Security Mode: Field-selectable fail-safe or fail-secure
Activation Indicator: Externally visible LED
Enclosure: High-impact ABS plastic
Intended Use: Indoor
Primary Function: Detects motion for request-to-exit (REX) applications in electronic access control systems
Application: Used for request-to-exit detection in commercial electronic access control installations
OEM Part: Yes
Warranty: 12 months from date of installation or 18 months from date of shipment from the manufacturer's factory
$977.00
$683.90
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage Scan-2B Motion Sensor?
The Scan II-B is a black passive infrared motion sensor designed for request-to-exit applications.
Is the Scan-2B intended for indoor or outdoor use?
It is intended for indoor use only.
What type of relay contacts does the Scan II-B have?
The sensor has two Form C relay contacts, rated at 2.0 A at 30 VDC or VAC maximum for DC resistive loads.
What voltage does the Scan II-B require?
The Schlage Scan II-B operates on 12/24 VAC or 12/24 VDC power.
Is the Schlage Scan II-B an OEM replacement part?
Yes. Scan II-B is a genuine Schlage part.

Schlage Scan-2B Motion Sensor, Black is a passive infrared REX sensor for Scan II systems with two Form C relays and adjustable latch time.
