Schlage RLBD Relay Board

Schlage RLBD AD Series Dry Contact Relay Board

Schlage

SKU: Schlage-RLBD

Schlage RLBD Relay Board

In stock

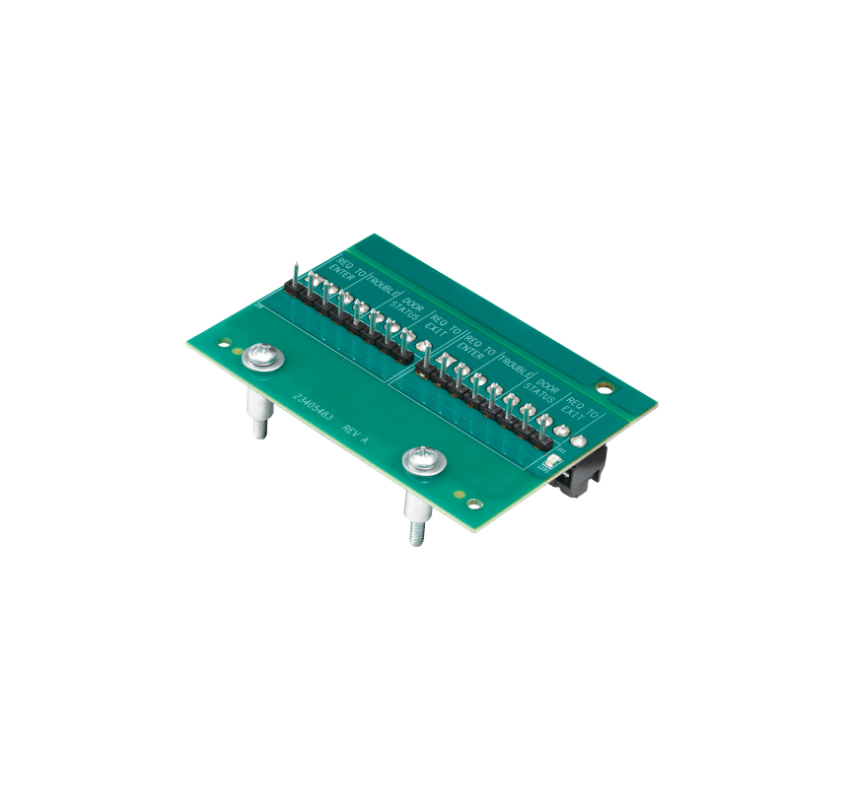

Schlage RLBD is a genuine OEM AD Series dry contact relay board designed to provide relay-based interface capability for access control applications requiring dry contact closures.

The Schlage RLBD Relay Board is an add-on component for PIM400-TD2 and PIB300-2D panel interface devices. The board provides access point status signals including request-to-enter, request-to-exit, door position/status, and tamper switch signals.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: RLBD
Product Name: Relay Board
Compatible Interface Devices: PIM400-TD2, PIB300-2D
Maximum Contact-to-Contact Voltage: 28V
Maximum Contact Current: 110 mA
Open State Resistance: 5 mega-ohms
Closed State Resistance: 2 ohms
Dimensions: 2.1" × 3.5" × 1.0" (5.33 × 8.89 × 2.54 cm)
Operating Temperature: −31°F to 151°F (−35°C to 66°C)
Operating Humidity: 0–100% non-condensing
Power Indicator: Red LED
Primary Function: Provides dry contact closures for supervised access control inputs
Application: Access control systems requiring dry contact interface
OEM Part: Yes
