Schlage PIB300-2D Panel Interface Board – 2 Door

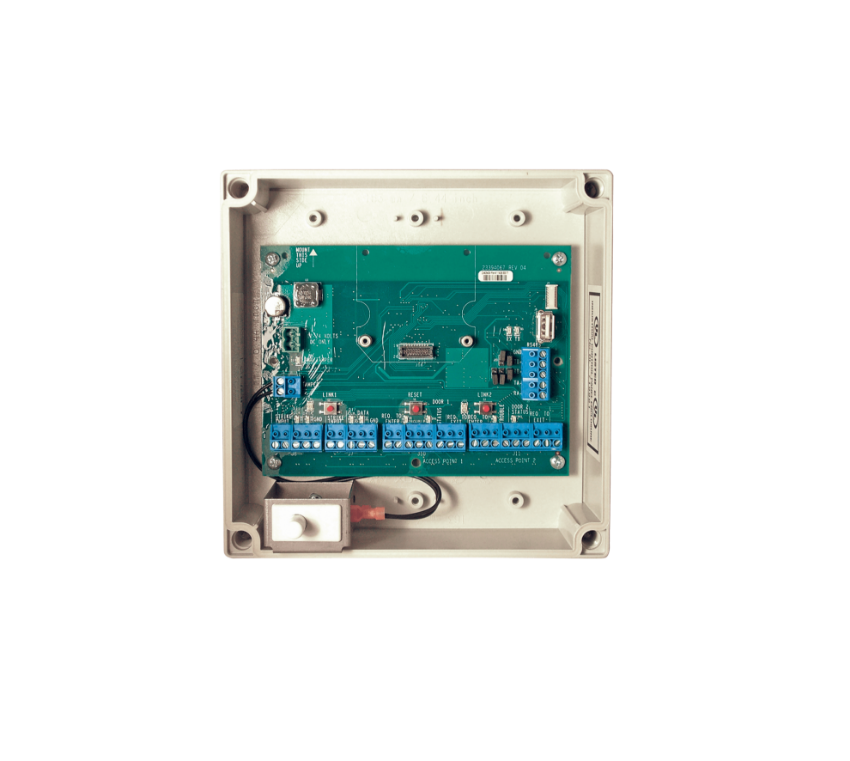

Schlage PIB300-2D Panel Interface Board

Schlage

SKU: PIB300-2D

Schlage PIB300-2D Panel Interface Board – 2 Door

In stock

Schlage PIB300-2D is a genuine OEM panel interface board for connecting AD-300 electronic locks to an access control panel using Wiegand or Clock & Data communication.

The Schlage PIB300-2D is a panel interface board designed to support up to two AD-300 networked hardwired electronic locks. The PIB300-2D includes a weatherproof enclosure and requires a 12 VDC or 24 VDC power supply. It supports RS-485 communication from the PIB300 to the lock for distances up to 4,000 feet and Wiegand or Clock & Data communication from the PIB300 to the access control panel for distances up to 500 feet.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: PIB300-2D
Product Name: Panel Interface Board (supports 2 doors)
Device Function: Wiegand or Clock & Data interface
Dimensions: 7.1" x 7.1" x 3.0" (18.0 cm x 18.0 cm x 7.6 cm)
Communication Range to Lock: Up to 4,000 ft (1,219 m) via RS-485
Communication Range to Access Control Panel: Up to 500 ft (152 m) via Wiegand or Clock & Data
Status Indicators: 13 LEDs
Enclosure: Weatherproof enclosure
Primary Function: Interfaces AD-300 locks with an access control panel
Application: Networked hardwired access control

$816.00
$489.60
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage PIB300-2D?
The PIB300-2D is a Schlage panel interface board that supports connection of up to two AD-300 locks to an access control panel.
What does the PIB300-2D do?
It provides an interface between AD-300 locks and an access control panel using Wiegand or Clock & Data communication.
What communication does the PIB300-2D use with the locks?
The PIB300-2D communicates with the locks through RS-485.
Does the PIB300-2D have status indicators?
Yes. The PIB300-2D has 13 LEDs for status indication.
Is the PIB300-2D a Schlage OEM component?
Yes. The PIB300-2D is a genuine Schlage OEM panel interface board for the AD-300/302 hardwired access control system.
