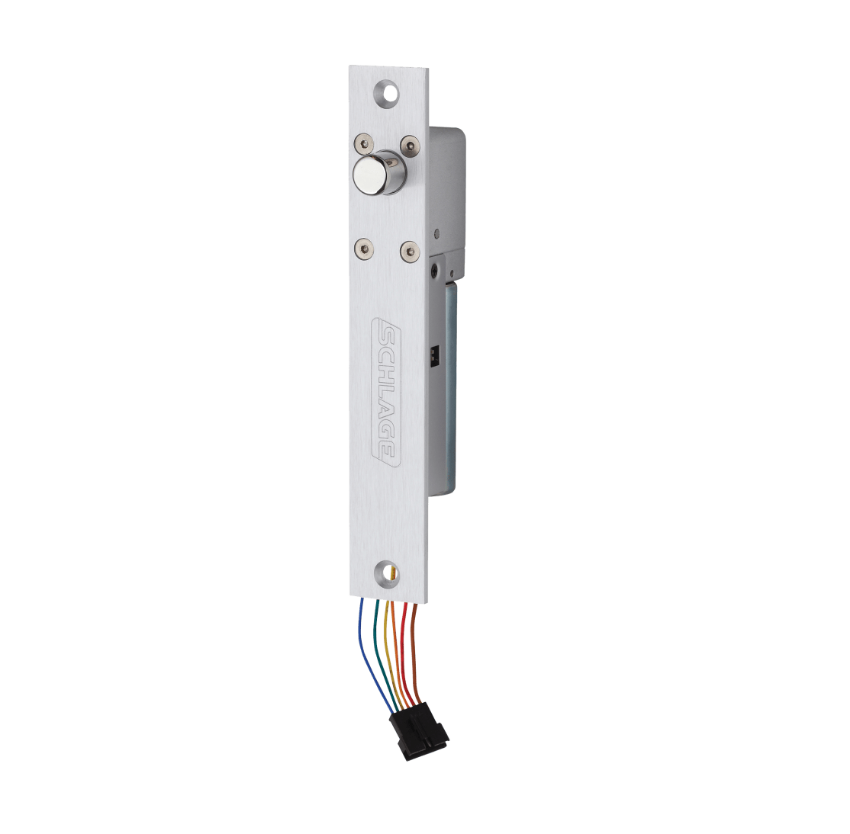

Schlage PB405S Electrified Deadbolt Lock – Fail Secure

Schlage PB405S Electrified Deadbolt Lock

Schlage

SKU: Schlage-PB405S

Schlage PB405S Electrified Deadbolt Lock – Fail Secure

In stock

The Schlage PB405S is a fail-secure electrified deadbolt lock with 12/24 VDC operation, a door position switch, built-in relocking, and MOV surge protection.

The Schlage PB405S is an electrified powerbolt lock with a mortise, right-angle deadbolt design for electronic access control. It is the fail-secure version of the PB405 series and requires power to unlock. The PB405S can be installed in the top or side of a door frame and can be mounted horizontally or vertically.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: PB405S
Product Name: Electrified Deadbolt Lock – Fail Secure
Locking Mode: Fail-secure; power to unlock
Voltage: 12 or 24 VDC, field selectable
Dimensions: 7-7/8" L × 1-1/4" W × 1-5/8" D
Mounting: Mortise mount
Bolt Diameter: 0.61 in.
Bolt Throw: 0.67 in.
Door Position Switch: SPDT, 0.5 A @ 30 VDC
Relock Delay: 0, 3, 6, or 9 seconds, field selectable
Finish: Satin aluminum strike plate and mortise face
Primary Function: Provides electronic access control
Application: Designed for doors, swinging or sliding cabinets, and drawers
OEM Part: Yes
Warranty: 12 months from date of installation or 18 months from date of shipment from the manufacturer's factory
$1,248.00
$873.60
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage PB405S?
The PB405S is a Schlage electrified powerbolt lock with a mortise, right-angle deadbolt design and fail-secure operation.
Is the Schlage PB405S fail secure?
Yes. The PB405S is fail secure and requires power to open or unlock.
What voltage does the PB405S use?
The PB405S uses 12 or 24 VDC, with the voltage field selectable.
Does the PB405S have a door position switch?
Yes. Schlage specifies a door position switch as a standard feature, with an SPDT contact rating of 0.5 A at 30 VDC.
Is the PB405S an OEM Schlage product?
Yes. PB405S is anOEM Schlage replacement product.

Schlage PB405S fail-secure electrified deadbolt lock for electronic access control, with 12/24 VDC operation and door position switch.
