Schlage PB405 Electrified Deadbolt Lock – Fail Safe

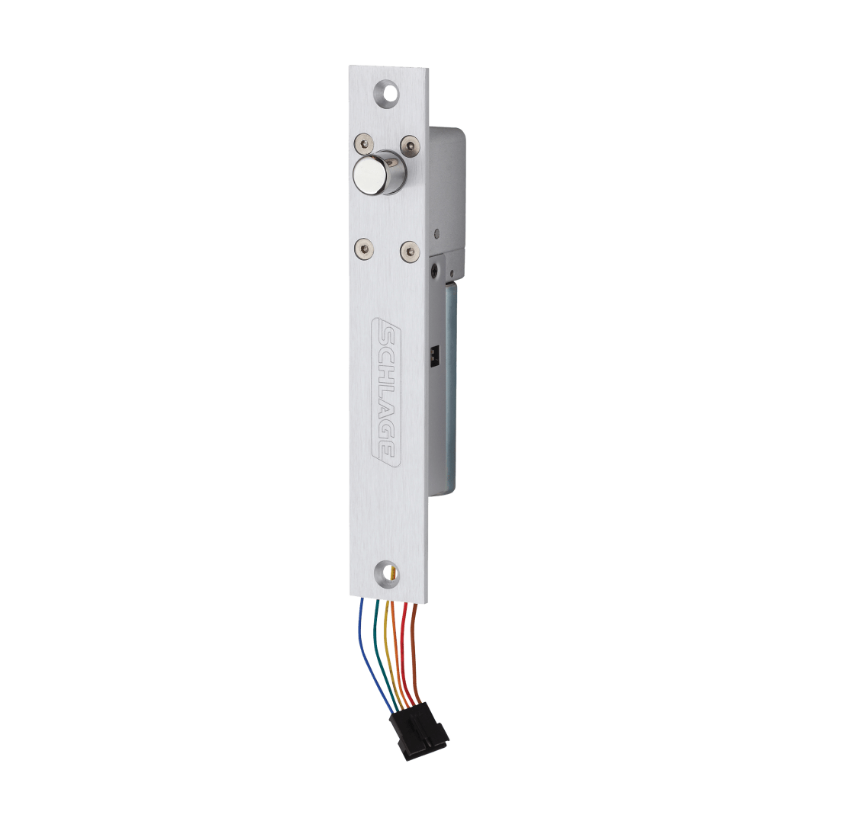

Schlage PB405 electrified deadbolt lock

Schlage

SKU: Schlage-PB405

Schlage PB405 Electrified Deadbolt Lock – Fail Safe

In stock

Schlage PB405 is a fail-safe electrified mortise deadbolt with a right-angle design, 12/24 VDC operation, and electronic access control capability for doors, cabinets, and drawers.

Schlage PB405 is a fail-safe electrified mortise deadbolt designed to provide electronic access control where minimal structural or hardware alteration is desired. It can be installed horizontally or vertically in the top or side of a door frame and can be used to control swinging or sliding cabinets and drawers.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: PB405
Product Name: Electrified Deadbolt Lock – Fail Safe
Locking Mode: Fail-safe; power to lock
Voltage: 12 or 24 VDC, field selectable
Dimensions: 7-7/8" L × 1-1/4" W × 1-5/8" D
Mounting: Horizontal or Vertical
Bolt Diameter: 0.61 in.
Bolt Throw: 0.67 in.
Door Position Switch: SPDT, 0.5 A @ 30 VDC
Relock Delay: 0, 3, 6, or 9 seconds, field selectable
Finish: Satin aluminum strike plate and mortise face
Primary Function: Provides electronic access control
Application: Designed for doors, swinging or sliding cabinets, and drawers
OEM Part: Yes
Warranty: 12 months from date of installation or 18 months from date of shipment from the manufacturer's factory
$1,006.00
$704.20
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage PB405 used for?
It is used for electronic access control on doors, swinging or sliding cabinets, and drawers.
Is the Schlage PB405 fail-safe or fail-secure?
The Schlage PB405 is a fail-safe electrified deadbolt lock.
What voltage does the Schlage PB405 use?
The Schlage PB405 operates at 12 or 24 VDC, with the voltage field selectable.
What is the relocking delay of the Schlage PB405?
The relocking delay can be field selected for 0, 3, 6, or 9 seconds.
Is the Schlage PB405 an OEM replacement part?
Yes. The Schlage PB405 is an OEM Schlage replacement part.
