Product Overview

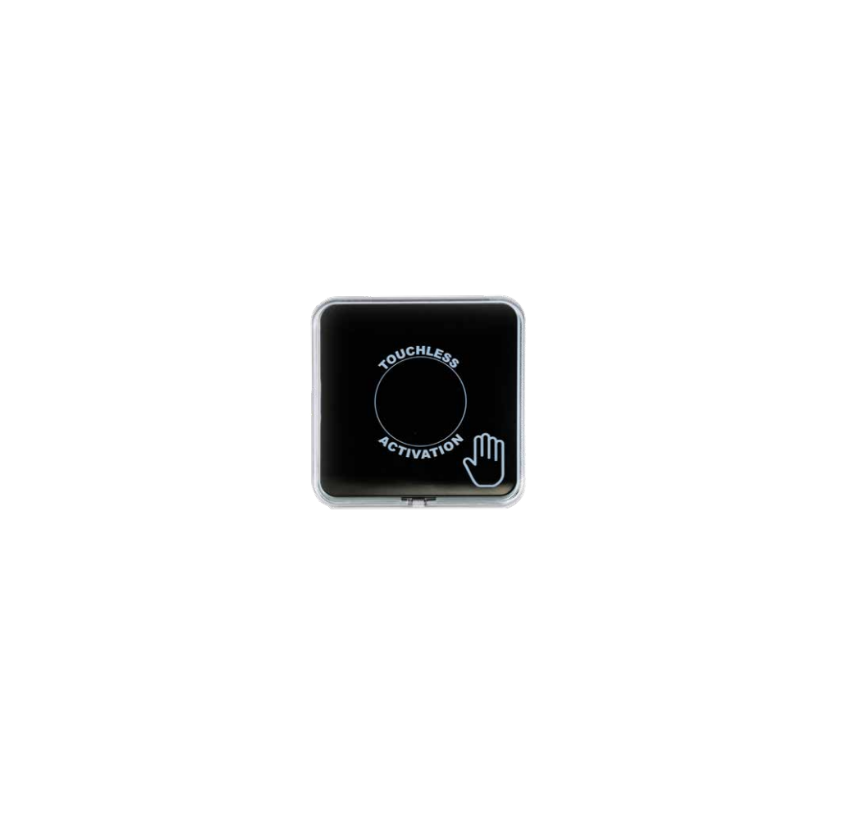

The Detex NXG-IR-A Touchless Activation Switch is a hardwired infrared activation device manufactured by Detex for hands-free door activation in ADA-compliant applications. Using NexGen rapid infrared pulse technology, it detects motion without physical contact, making it suitable for healthcare facilities, operating rooms, clean rooms, and other environments where hygiene is important. The switch features an adjustable detection range and reaction time, a Form C relay output, and a low-profile design with an illuminated bezel that activates upon use. The NXG-IR-A is designed for use with automatic door systems requiring touchless activation and is not recommended for outdoor use.

We are a trusted source for commercial door hardware, security hardware, access control products, and OEM replacement parts.

Features

• Hardwired touchless activation switch
• NexGen rapid infrared pulse detection technology
• Adjustable operating range from 5" to 12"
• Adjustable reaction time from 0.05 to 3 seconds
• ADA-compliant hands-free operation
• Illuminated bezel edge activates upon use
• Thin design with no moving parts
• Form C relay output
• Heavy-duty 1 Amp contact
• Operates on 12V to 24V AC or DC input voltage
• Not polarity sensitive on AC input

Benefits

• Provides hands-free door activation to support ADA accessibility requirements
• Reduces physical contact in hygiene-sensitive environments
• Allows customization of detection range for application requirements
• Adjustable response timing helps optimize door activation performance
• Illuminated activation indication provides clear user feedback
• No moving parts help reduce mechanical wear
• Compatible with multiple low-voltage AC or DC power sources
