SKU: ND10

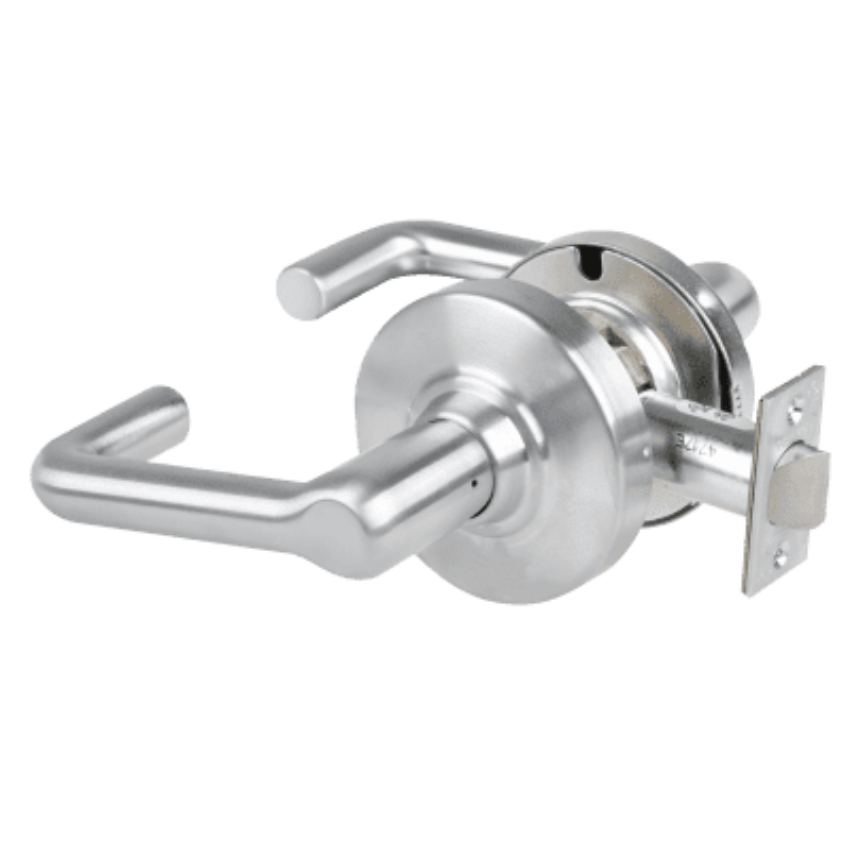

Schlage ND10 Passage latch lock

Picture of ND10 Passage latch lock
Picture of ND10 Passage latch lock
Picture of ND10 Passage latch lock
Picture of ND10 Passage latch lock
Dynamic Image
Picture of ND10 Passage latch lock
Picture of ND10 Passage latch lock
Picture of ND10 Passage latch lock
Picture of ND10 Passage latch lock

Schlage

SKU: ND10

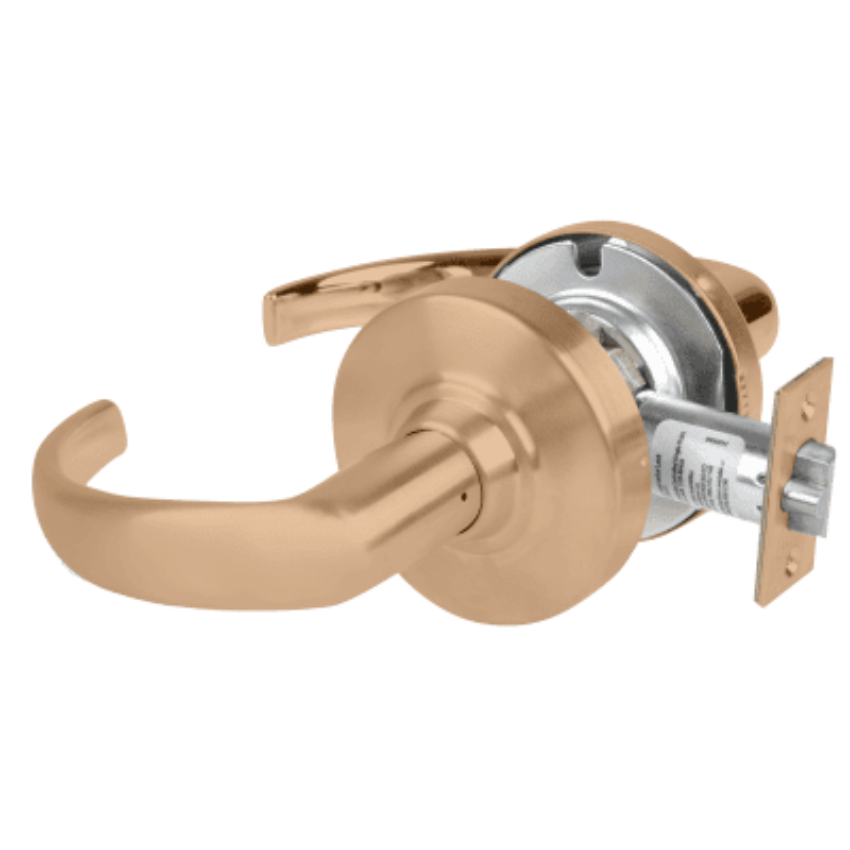

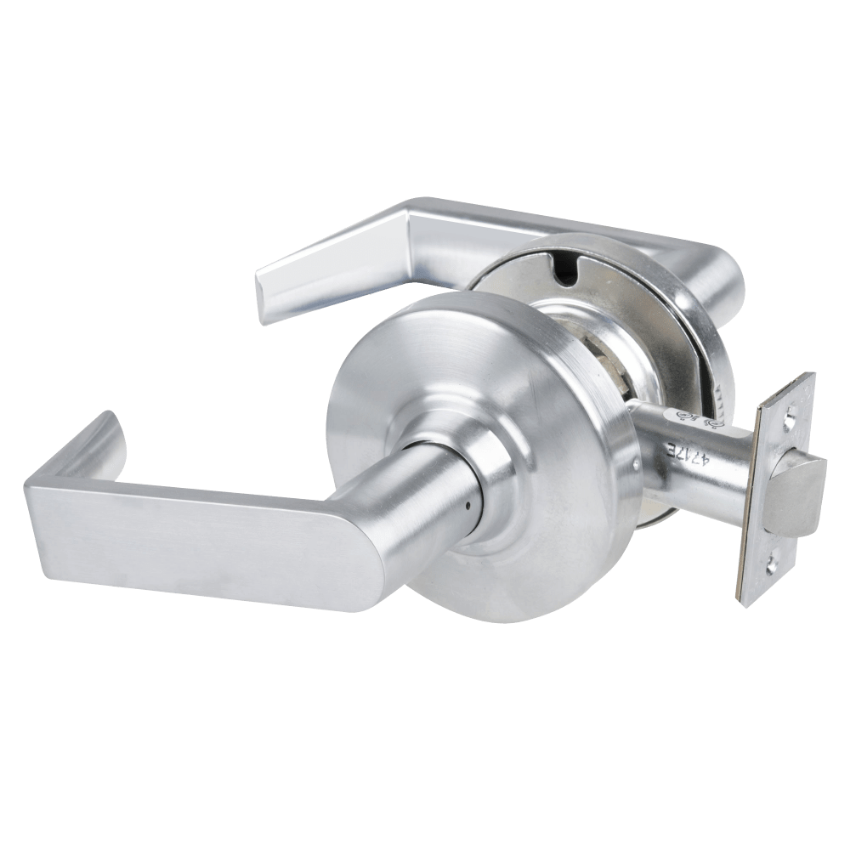

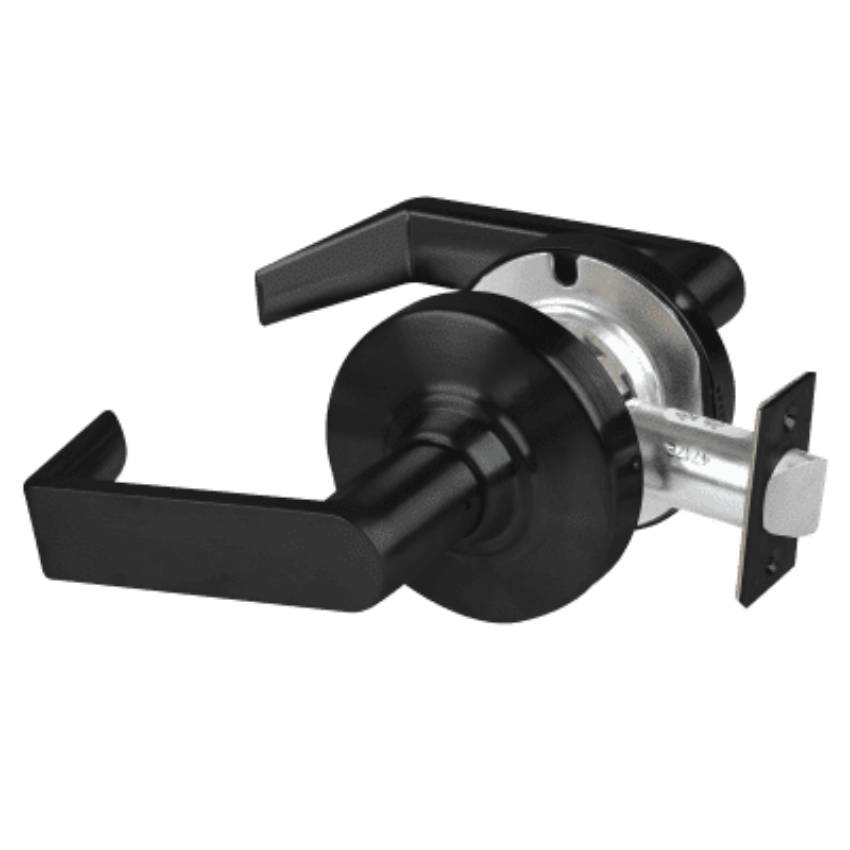

Schlage ND10 Passage latch lock

In stock

The Schlage ND10 is a heavy-duty, commercial-grade passage cylindrical lock designed for high-traffic areas where no locking mechanism is required, such as hallways or closets
*

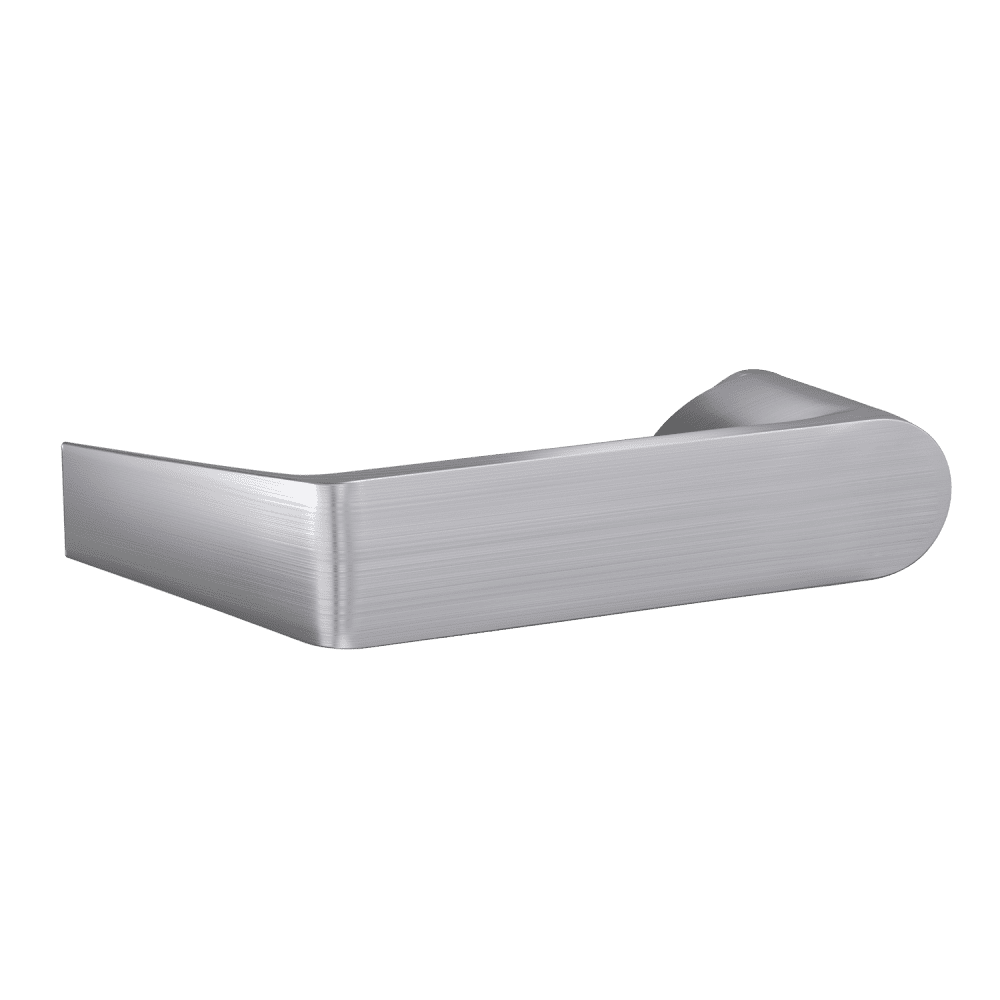

  • RHO - Rhodes
    RHO - Rhodes
    Not available

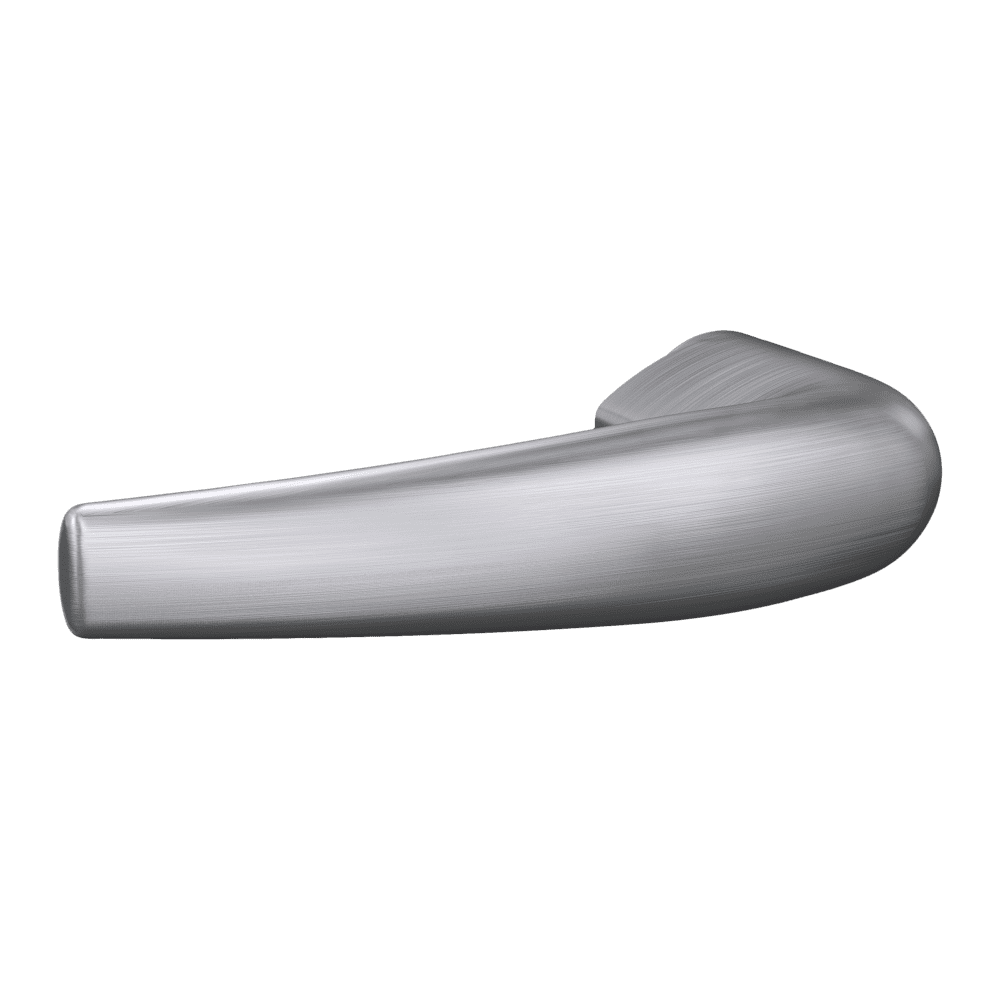

  • ATH - Athens
    ATH - Athens
    Not available

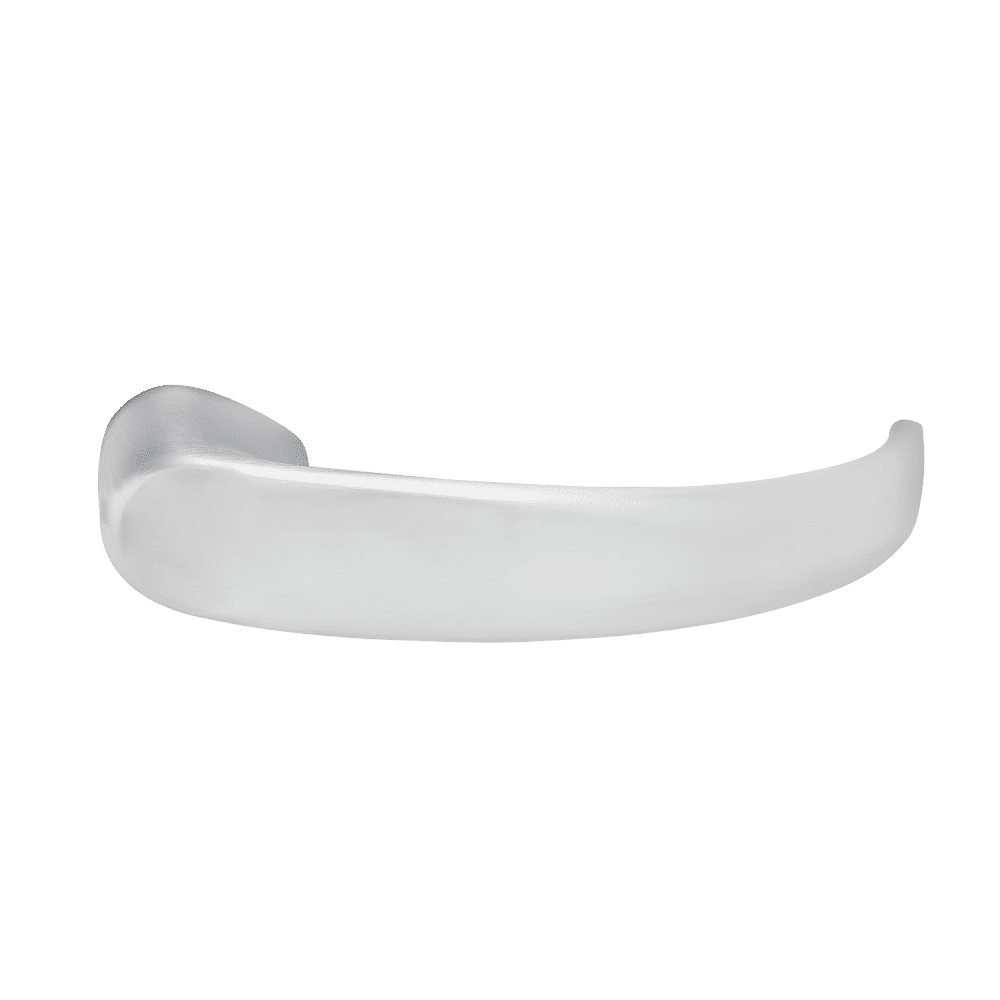

  • SPA - Sparta
    SPA - Sparta
    Not available

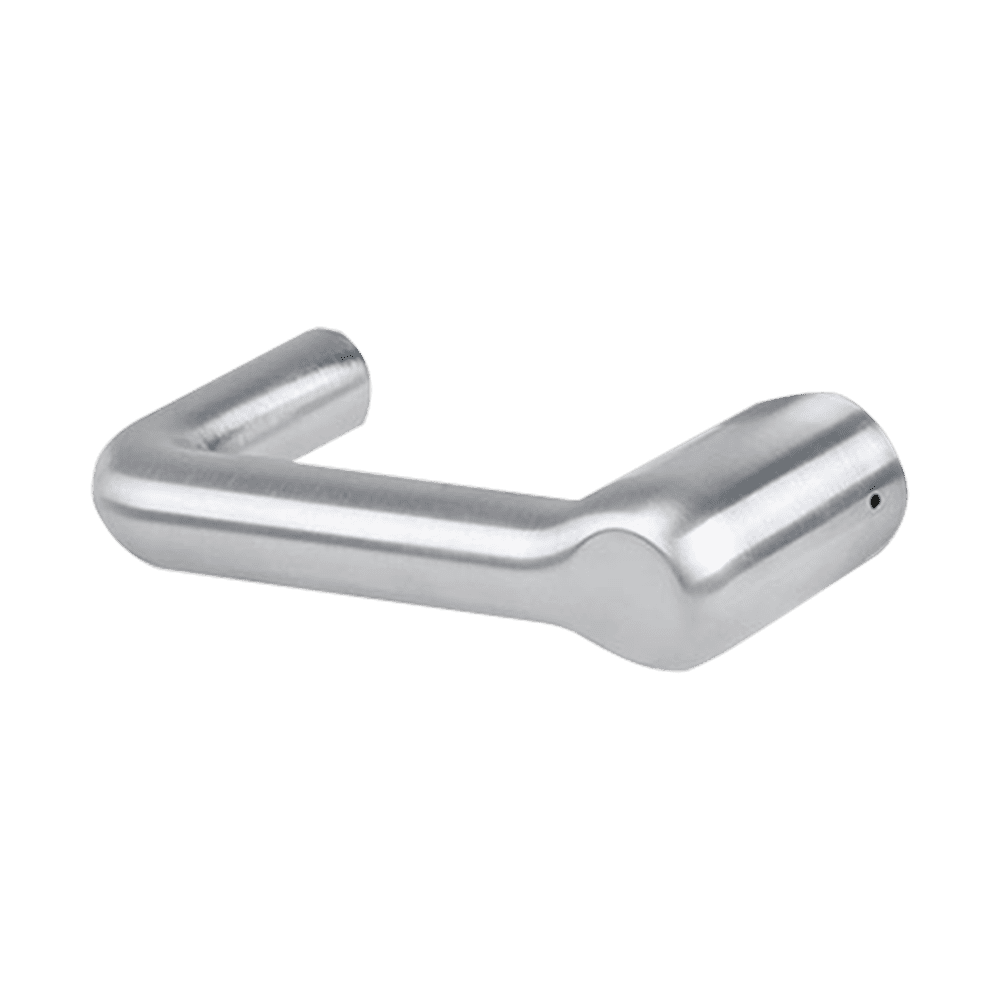

  • TLR - Tubular
    TLR - Tubular
    Not available

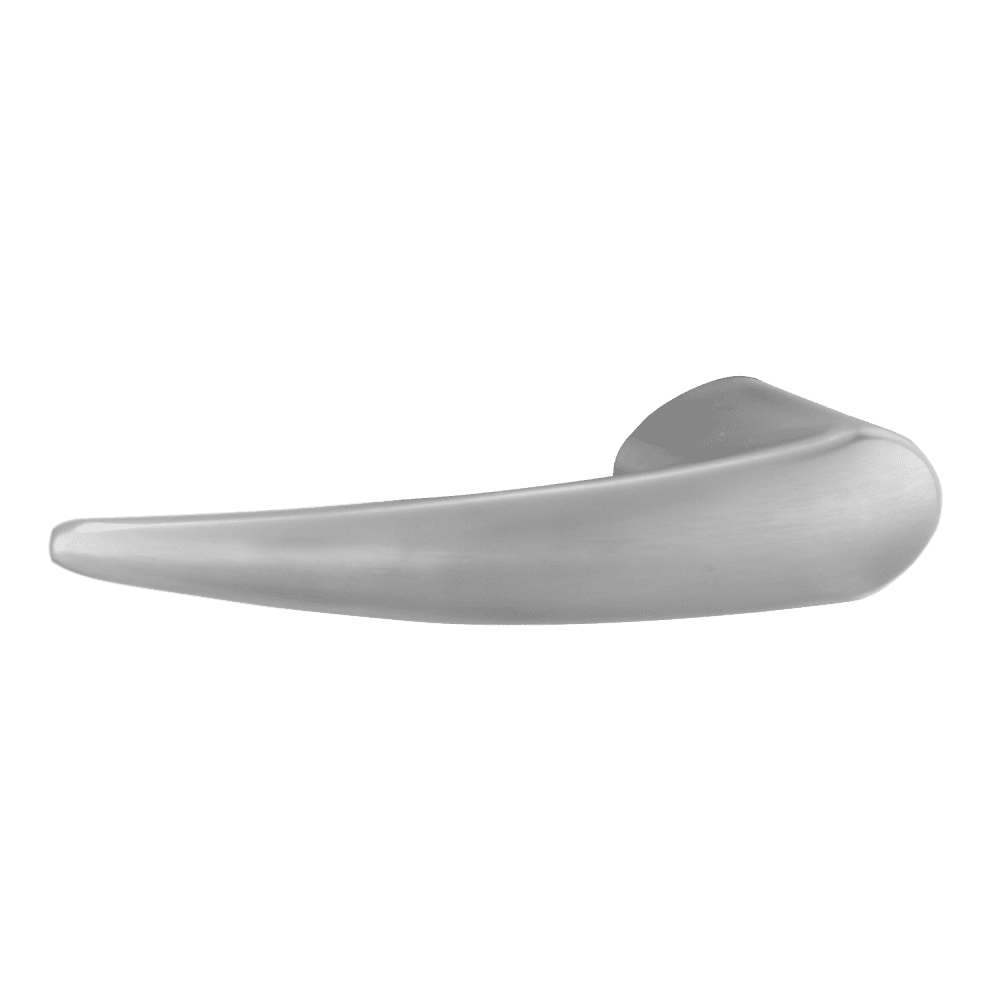

  • OME - Omega
    OME - Omega
    Not available

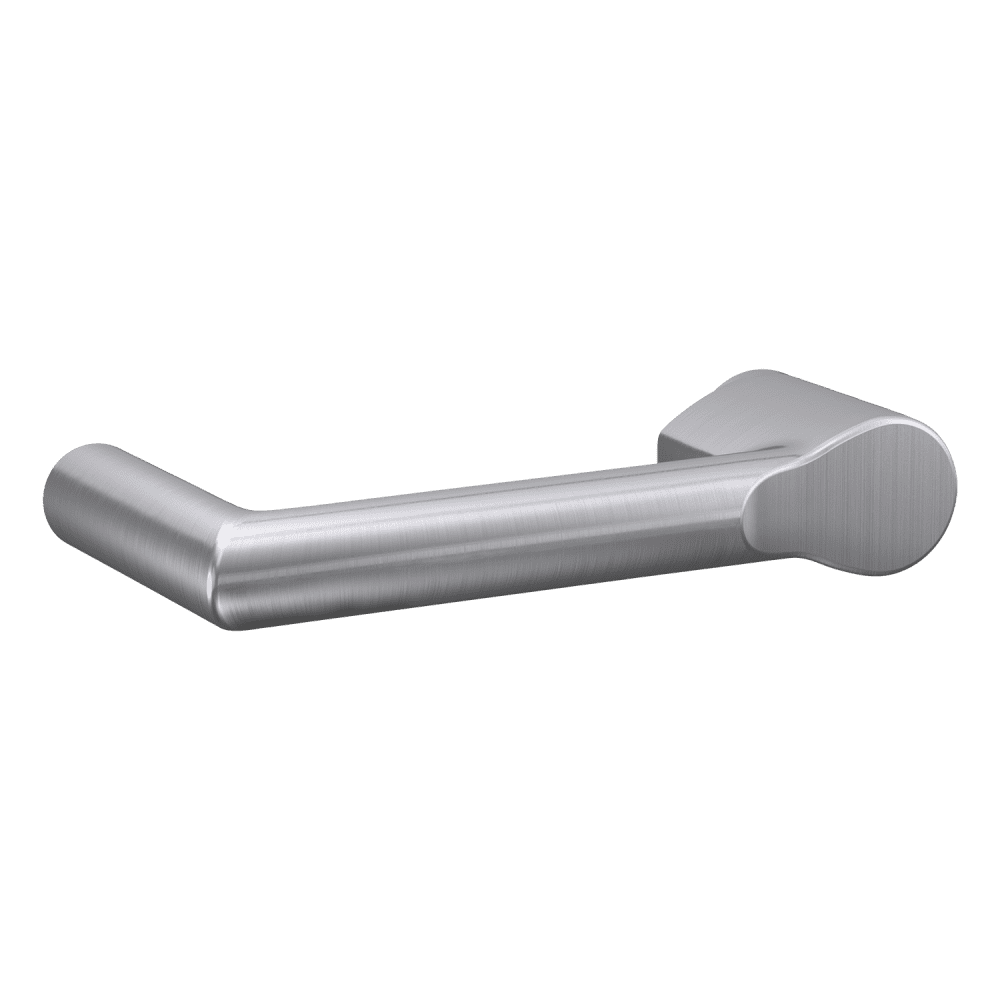

  • BRK - Boardwalk
    BRK - Boardwalk
    Not available

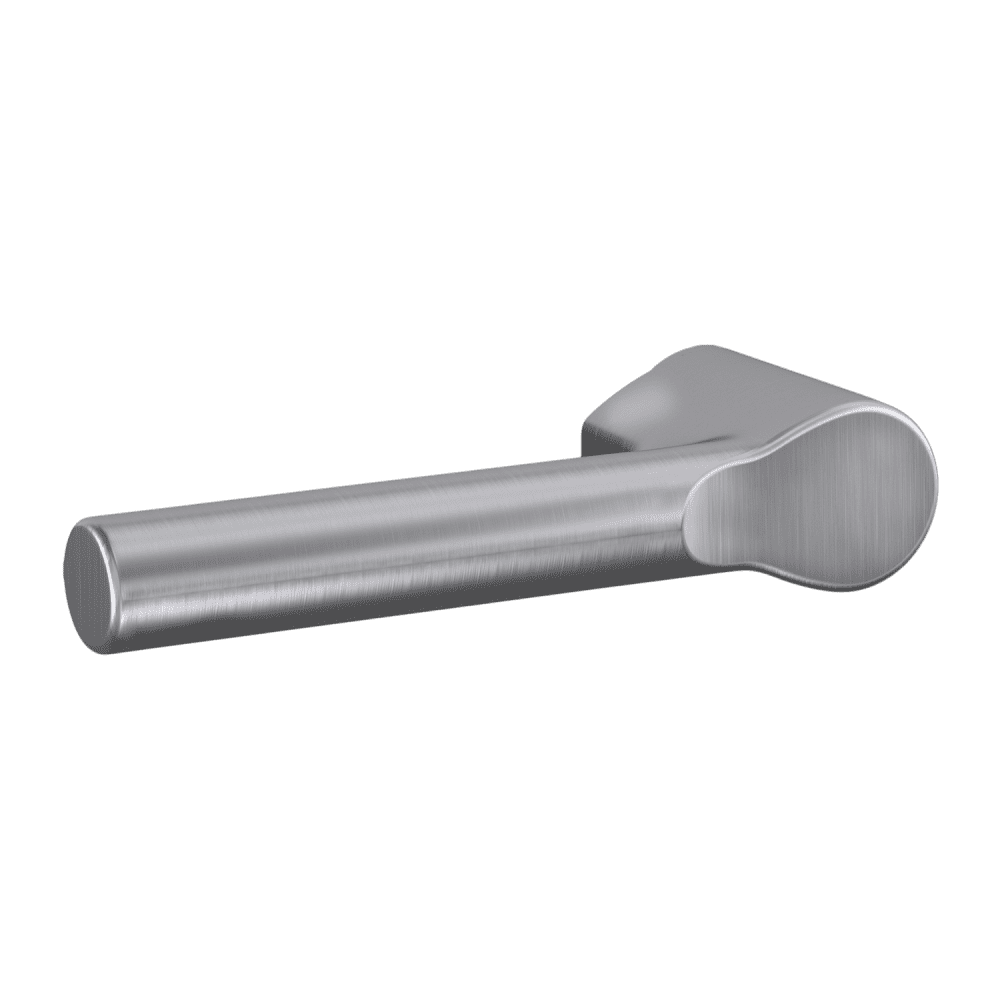

  • BRW - Broadway
    BRW - Broadway
    Not available

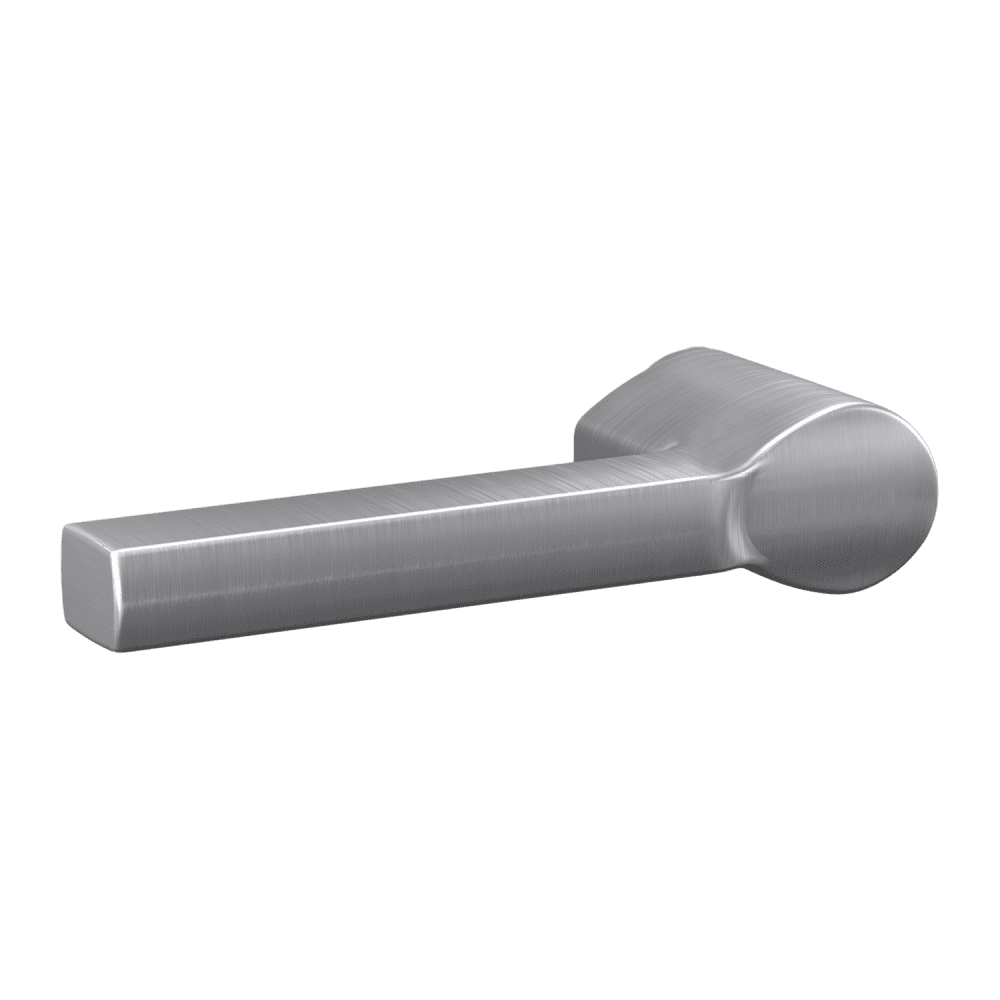

  • LAT - Latitude
    LAT - Latitude
    Not available

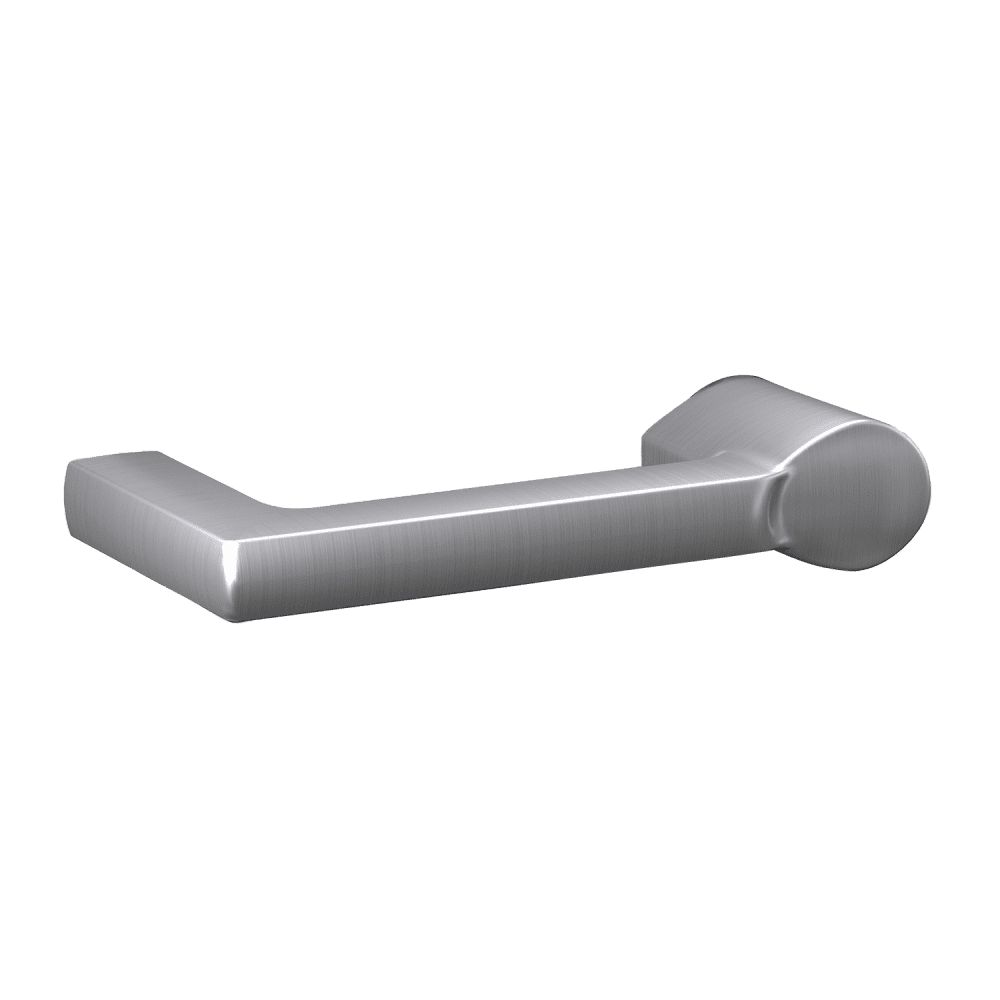

  • LON - Longitude
    LON - Longitude
    Not available
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 622 - US19 - Powder-Coated Matte Black
    622 - US19 - Powder-Coated Matte Black
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 626AM - Satin Chrome, Antimicrobial
    626AM - Satin Chrome, Antimicrobial
    Not available

Function: ND10 Passage latch - ANSI F75
• Levers both sides; springlatch
• Latch retracted by lever from either side at all times
• Inside lever always free for immediate egress

Standard Features
Latch: 11/8” x 21/4”, Square corner faceplate, 1” housing diameter, 1/2” throw
Strike: 11/4” x 47/8”, ANSI, Square corner, no box
Backset: 2 3/4”, 2 3/8" optional
Certifications:
Exceeds BHMA A156.2 requirements for Grade 1 cylindrical locks.
Exceeds BHMA A156.25 requirements for indoor electrified locks.
UL10C listed for 3-hour fire doors up to 4'0" x 10'0"
Meets Florida Building Code (ASTM E330, E1886, E1996) and Miami-Dade (TAS 201, 202, 203) requirements for hurricanes.

$295.65
$156.69
