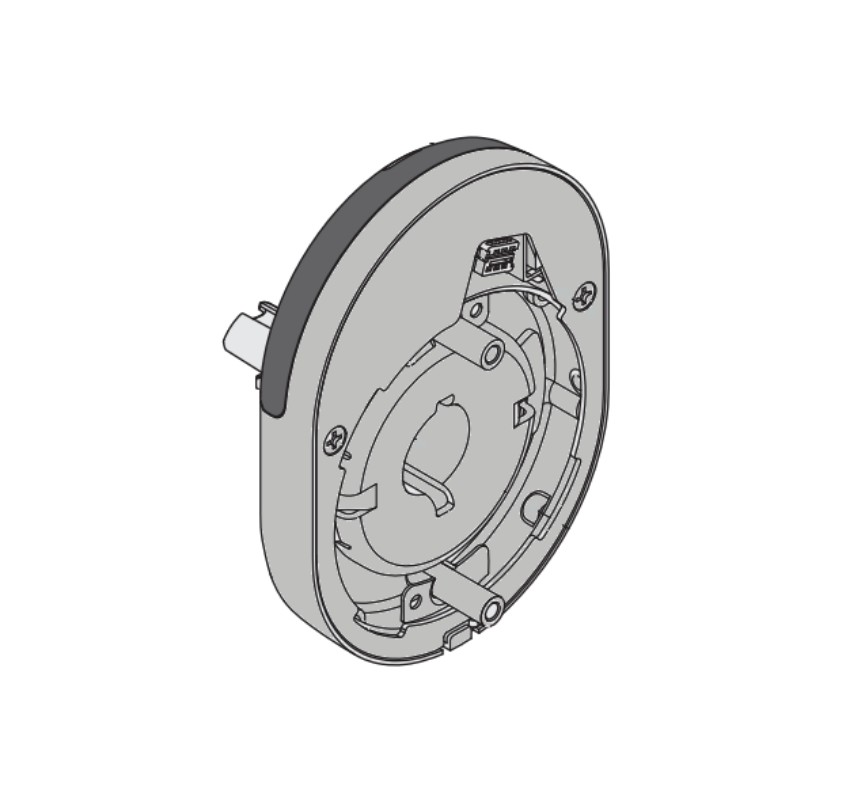

Schlage N223-045 Outside Escutcheon Subassembly

Schlage N223-045 Outside Escutcheon Subassembly

Schlage

SKU: N223-045

Schlage N223-045 Outside Escutcheon Subassembly

In stock

Schlage N223-045 is an OEM outside escutcheon subassembly for Schlage NDE Series electronic locks. This replacement assembly is supplied without the reader PCBA and includes the required mechanical housing components.
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 626AM - Satin Chrome, Antimicrobial
    626AM - Satin Chrome, Antimicrobial
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available

Schlage N223-045 Outside Escutcheon Subassembly is a genuine OEM replacement assembly designed for Schlage NDE Series wireless electronic cylindrical locks. It restores the exterior escutcheon assembly while allowing the existing reader electronics to be reused when appropriate.

We are your trusted source for commercial door hardware, security hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: N223-045
Product Type: Outside Escutcheon Subassembly
Product Series: NDE Series
Function: Exterior escutcheon replacement
Application: Commercial electronic cylindrical lock
OEM Part: Yes

Includes

  • 3x #6-32 x .25 FH PD TC screws
  • 1x Outside escutcheon
  • 1x Outside RF window assembly
  • 1x Adjustment spring
  • 1x Outside backplate
$176.00
$158.40
minus minus

Catalogs

Frequently Asked Questions

What is Schlage N223-045?
It is a genuine OEM outside escutcheon subassembly for Schlage NDE Series electronic locks.
Does this part include the reader PCBA?
No. The reader PCBA is not included.
Which lock series is this compatible with?
It is compatible with Schlage NDE Series wireless electronic locks.
What components are included?
The package includes the outside escutcheon, RF window assembly, adjustment spring, outside backplate, and three mounting screws.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
