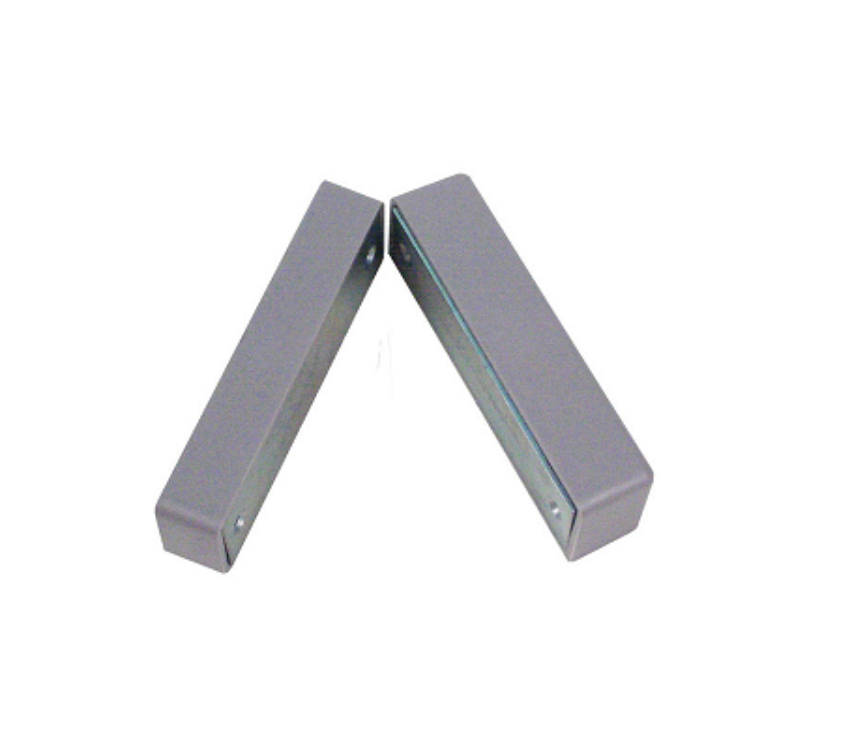

Detex MS-2049SI Heavy Duty Form C Magnetic Switch

Detex MS-2049SI Heavy Duty Form C Magnetic Switch for Surface Inswinging Doors

Detex

SKU: MS-2049SI

Detex MS-2049SI Heavy Duty Form C Magnetic Switch

In stock

The Detex MS-2049SI Heavy Duty Form C Magnetic Switch is a surface-mounted magnetic switch for inswinging doors designed to detect door openings, monitor protected openings, and trigger compatible alarm or monitoring systems. It features tamper protection and a heavy-duty SPDT switch.

Product Overview

The Detex MS-2049SI Heavy Duty Form C Magnetic Switch is a heavy-duty surface-mounted magnetic switch designed by Detex for inswinging commercial doors. It serves as a sensing device that detects door openings, helps keep protected doors under surveillance, triggers compatible Detex exit alarms, signals doors left open, and interfaces with various audio and visual alarm systems.

We are your trusted source for Detex commercial security hardware, magnetic switches, access control products, and OEM replacement parts.

Features

  • Heavy-duty magnetic door position switch
  • Single Pole Double Throw (SPDT) switch configuration
  • Tamper-resistant mounting design
  • Concealed, color-coded wiring leads
  • Components potted for shock and moisture protection
  • Surface models housed in durable ABS thermoplastic
  • Compatible with steel, aluminum, and wood doors
  • Suitable for narrow door stiles as small as 1-3/8 inches
  • Overhead or latch-side mounting options
  • Rated for more than one million operations under load
  • UL Listed Door Position Switch
  • UL Listed for fire-rated door assemblies
  • 24VDC, 0.5A maximum contact rating
  • 12-inch color-coded wiring leads included
  • 3-Year Limited Manufacturer Warranty

Benefits

  • Provides reliable door position monitoring
  • Helps ensure protected openings remain under surveillance
  • Reduces false alarm conditions caused by improperly closed doors
  • Integrates easily with security, alarm, and access control systems
  • Supports fire-rated opening compliance requirements
  • Offers long service life in demanding commercial environments
  • Simplifies installation and maintenance
  • Enhances building security and door monitoring capabilities
  • Suitable for a wide variety of alarm and signaling applications
  • Provides dependable performance in high-traffic facilities

Model

MS-2049SI (Surface Mounted Magnetic Switch for In-Swinging Doors)

    • Designed specifically for in-swing door applications
    • Maintains reliable monitoring on inward-opening doors
$233.00
$186.40
minus minus

Catalogs

Frequently Asked Questions

What is the Detex MS-2049SI used for?
It is used to detect the opening of protected doors and trigger compatible alarm or monitoring systems.
Is the MS-2049SI designed for inswinging doors?
Yes. The MS-2049SI is specifically designed for surface mounting on inswinging doors.
What type of switch does the MS-2049SI use?
It uses a heavy-duty Form C Single Pole Double Throw (SPDT) magnetic switch.
What door materials is it compatible with?
It is designed for use on steel, aluminum, and wood doors and frames.
Does the MS-2049SI include tamper protection?
Yes. It features concealed mounting screws that are inaccessible when the door is closed to help resist tampering.
