Detex MS-2049F Flush Mount Magnetic Switch

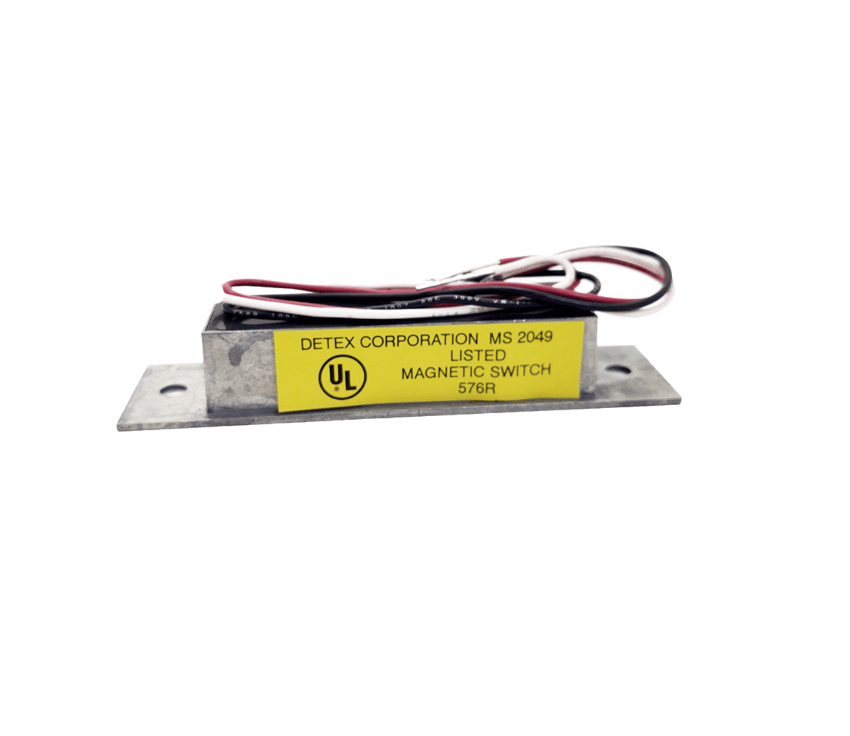

Detex MS-2049F flush mount magnetic switch

Detex

SKU: MS-2049F

Detex MS-2049F Flush Mount Magnetic Switch

In stock

The Detex MS-2049F is a flush-mounted magnetic switch designed to detect door or window openings for commercial security systems. It serves as a sensing device for exit alarms, remote monitoring, and audio or visual alarm activation.

Product Overview

The Detex MS-2049F is a flush-mounted magnetic switch designed to detect the opening of doors or windows in commercial security applications. Manufactured by Detex, it functions as a sensing device that helps keep protected openings under surveillance, triggers compatible exit alarms, signals doors left open, and activates remote audio or visual alarm systems. The flush-mounted design conceals the switch within the door frame while the magnet is installed in the door edge for a clean appearance and added tamper resistance.

We are your trusted source for Detex commercial door hardware, access control products, and OEM security solutions.

Features

  • Heavy-duty magnetic door position switch
  • Single Pole Double Throw (SPDT) switch configuration
  • Tamper-resistant mounting design
  • Concealed, color-coded wiring leads
  • Components potted for shock and moisture protection
  • Surface models housed in durable ABS thermoplastic
  • Compatible with steel, aluminum, and wood doors
  • Suitable for narrow door stiles as small as 1-3/8 inches
  • Overhead or latch-side mounting options
  • Rated for more than one million operations under load
  • UL Listed Door Position Switch
  • UL Listed for fire-rated door assemblies
  • 24VDC, 0.5A maximum contact rating
  • 12-inch color-coded wiring leads included
  • 3-Year Limited Manufacturer Warranty

Benefits

  • Provides reliable door position monitoring
  • Helps ensure protected openings remain under surveillance
  • Reduces false alarm conditions caused by improperly closed doors
  • Integrates easily with security, alarm, and access control systems
  • Supports fire-rated opening compliance requirements
  • Offers long service life in demanding commercial environments
  • Simplifies installation and maintenance
  • Enhances building security and door monitoring capabilities
  • Suitable for a wide variety of alarm and signaling applications
  • Provides dependable performance in high-traffic facilities

Model

S-2049F (Flush Mount Magnetic Switch)

    • Flush-mounted design for concealed installation
    • Switch housed in the door frame with magnet mortised into the door edge
    • Ideal for clean, unobtrusive installations
    • Suitable for overhead or latch-side mounting
$226.00
$180.80
minus minus

Catalogs

Frequently Asked Questions

What is the Detex MS-2049F used for?
The MS-2049F is used to detect door or window openings for surveillance, exit alarms, remote monitoring, and alarm activation.
Is the MS-2049F flush mounted?
Yes. The switch is installed inside the door frame while the magnet is mortised into the edge of the door.
What types of doors can the MS-2049F be installed on?
It is designed for steel, aluminum, and wood doors and frames.
What type of electrical contacts does the MS-2049F use?
It uses a Single Pole Double Throw (SPDT) switch with a maximum contact rating of 24 VDC at 0.5 A.
Is the Detex MS-2049F approved for fire-rated door assemblies?
Yes. It is UL Listed as a Door Position Switch and UL Listed for use on fire-rated doors and assemblies.
