Picture of Detex

SKU: MS-1059F

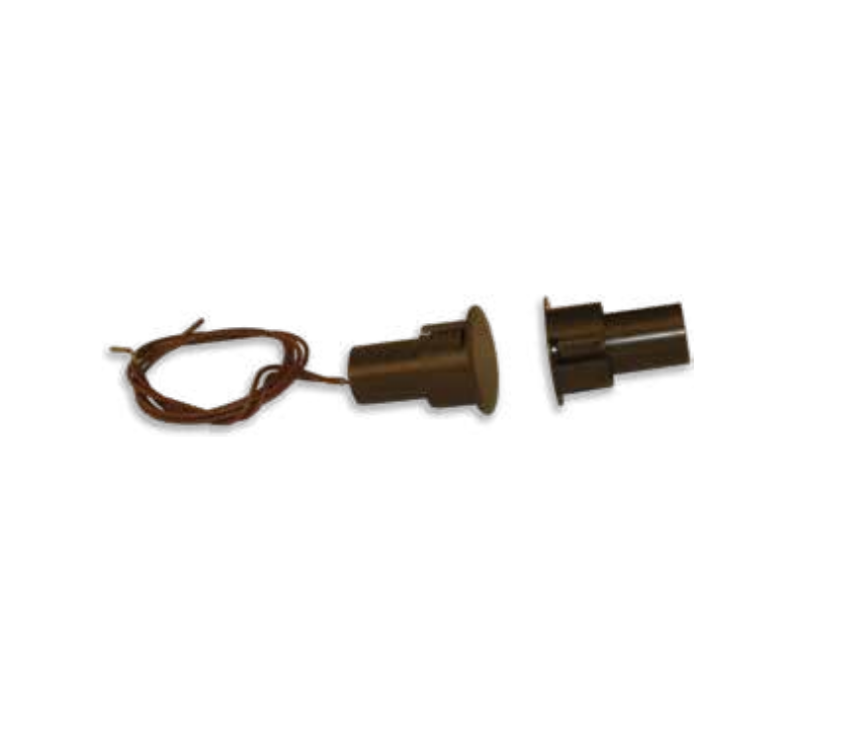

Detex MS-1059F Flush Magnetic Switch

Detex MS-1059F flush magnetic switch

Detex

SKU: MS-1059F

Detex MS-1059F Flush Magnetic Switch

In stock

The Detex MS-1059F is a flush-mounted magnetic switch designed to detect door or window openings for alarm and remote monitoring systems. This brown magnetic switch is intended for use on steel, aluminum, or wood doors and frames.

Product Overview

The Detex MS-1059F is a flush-mounted magnetic switch manufactured by Detex that detects the opening of doors or windows for use with alarm and monitoring systems. Designed for commercial security applications, it serves as a sensing device to trigger alarms or remote monitors, verify that protected openings remain under surveillance, and signal when a door has been left open. The flush, one-piece design eliminates the need for additional donut adapters and features a self-locking installation.

We are your trusted source for commercial door hardware, security products, and OEM Detex components.

Features

  • Flush-mounted magnetic switch
  • Brown finish
  • Anti-tamper design
  • One-piece flush switch construction
  • No additional donut adapter required
  • Self-locking flush switch
  • Durable magnet
  • Normally closed (NC) contact
  • Single pole, single throw (SPST) switch
  • Polarity selection is non-critical
  • Supports overhead (preferred) or latch-stile mounting

Benefits

  • Detects door or window openings for security monitoring
  • Triggers compatible alarm or remote monitoring systems
  • Helps keep protected openings under continuous surveillance
  • Simplifies installation with a one-piece flush design
  • Offers flexible installation on multiple door and frame materials
  • Anti-tamper design enhances security applications
$55.00
$44.00
minus minus

Catalogs

Frequently Asked Questions

What is the Detex MS-1059F used for?
The MS-1059F is used to detect the opening of doors or windows and trigger compatible alarm or remote monitoring systems.
Is the MS-1059F a flush-mounted magnetic switch?
Yes. The MS-1059F is a flush-mounted magnetic switch with a one-piece design.
What door materials are compatible with the MS-1059F?
It is designed for use on steel, aluminum, and wood doors and frames.
What type of electrical contact does the MS-1059F use?
The switch uses a normally closed (NC), single pole single throw (SPST) contact rated at 28 VDC, 0.5 A, 10 W.
