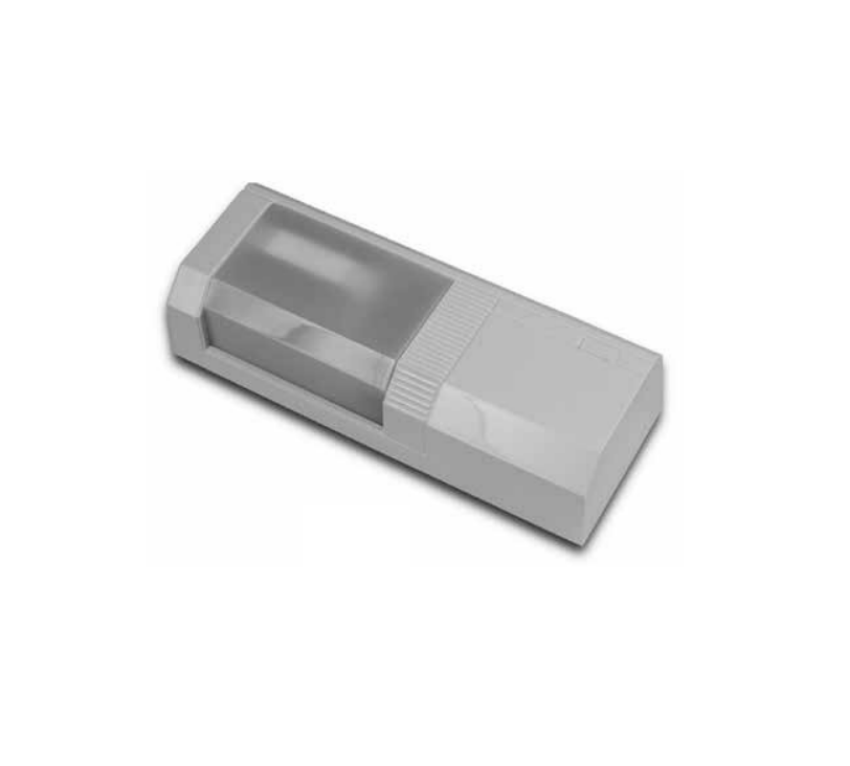

Detex MN01 PIR Request-to-Exit Motion Sensor

Detex MN01 passive infrared request-to-exit motion sensor with Form C relay

Detex

SKU: Detex-MN01

Detex MN01 PIR Request-to-Exit Motion Sensor

The Detex MN01 is a passive infrared (PIR) request-to-exit motion sensor designed for commercial access control applications. Featuring dual-pyroelectric detection technology, Form C relay output, and 12/24V operation, it provides reliable hands-free egress activation with superior RFI and white-light immunity.

Product Overview

The Detex MN01 Passive Infrared Motion Sensor is engineered for request-to-exit applications in commercial access control systems. Utilizing dual-pyroelectric detection elements and advanced circuitry, the sensor delivers dependable motion detection while maintaining excellent resistance to radio frequency interference and white-light disturbances. Designed for single- or double-door coverage, the MN01 operates on 12/24V power and features a Form C relay output, making it suitable for integration with a variety of access control, locking, and door monitoring systems.

Features

  • Passive infrared (PIR) motion detector
  • Designed for request-to-exit (REX) applications
  • Dual-pyroelectric detection elements
  • Form C relay output (SPDT)
  • Operates on 12/24V AC or DC
  • Surface-mounted installation
  • Superior RFI immunity
  • White-light immunity
  • SMD circuitry for enhanced reliability
  • Supports single- or double-door coverage
  • Commercial-grade construction
  • 1-year limited manufacturer warranty

Benefits

  • Enables hands-free exit activation
  • Improves access control system functionality
  • Reduces accidental false triggering from interference
  • Simplifies integration with access control systems
  • Supports flexible commercial installation requirements
  • Provides dependable motion detection performance
  • Enhances occupant convenience while maintaining security
  • Built for long-term commercial use
$441.00
$352.80
minus minus

Catalogs

Frequently Asked Questions

What is the primary application of the Detex MN01?
The MN01 is designed for request-to-exit applications in commercial access control systems.
What sensing technology does the MN01 use?
The sensor uses passive infrared (PIR) technology with dual-pyroelectric detection elements.
What type of relay output does the MN01 provide?
The MN01 features a Form C (SPDT) relay output.
What power input does the MN01 require?
The MN01 operates on 12/24V AC or DC power.
Can the MN01 be used on single and double doors?
Yes. The sensor is designed to provide coverage for both single-door and double-door installations.
