Von Duprin

SKU: M996L-M

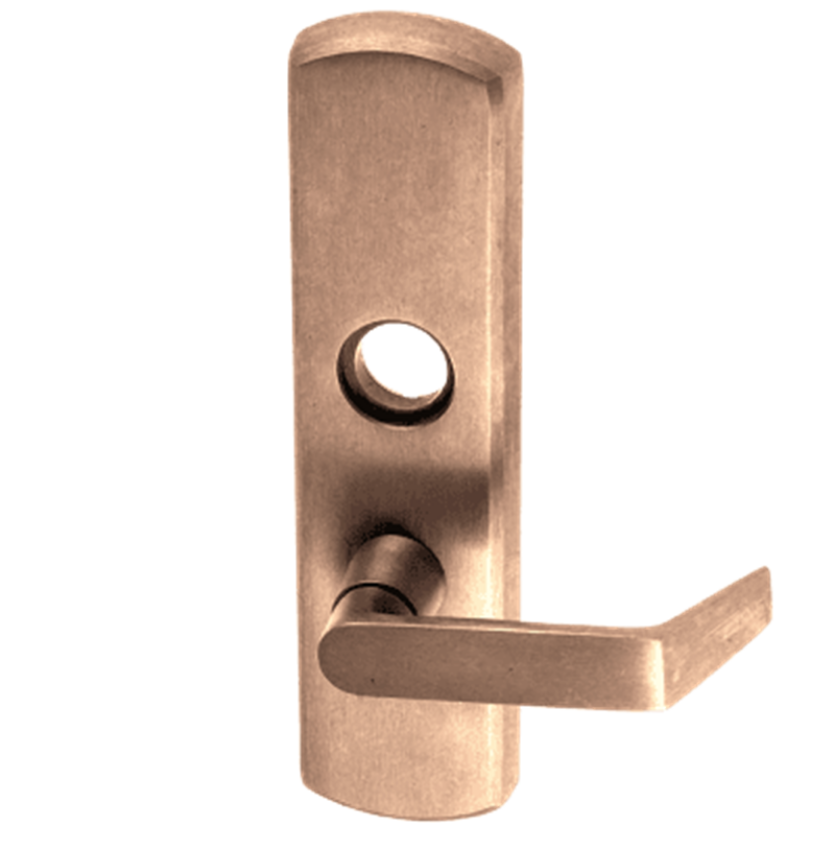

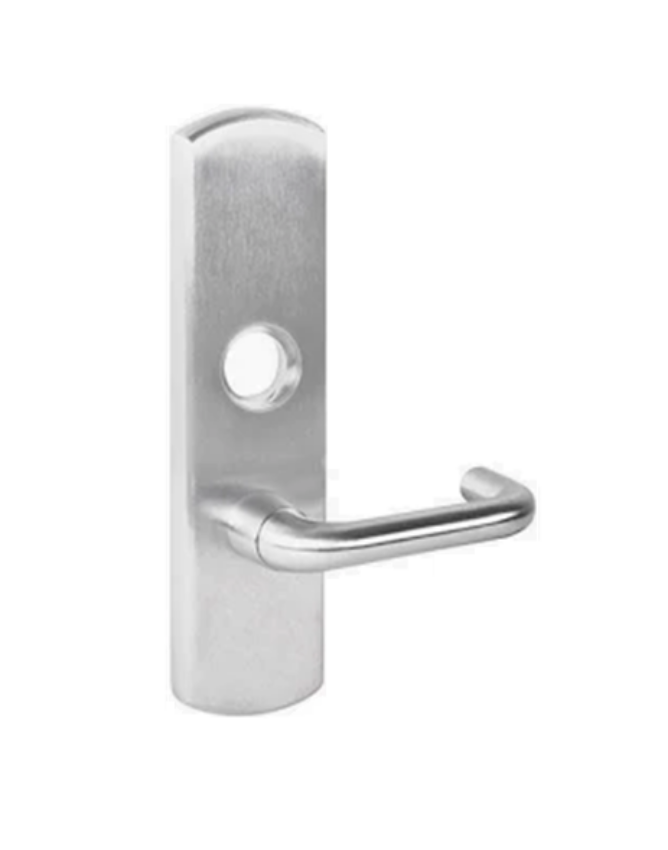

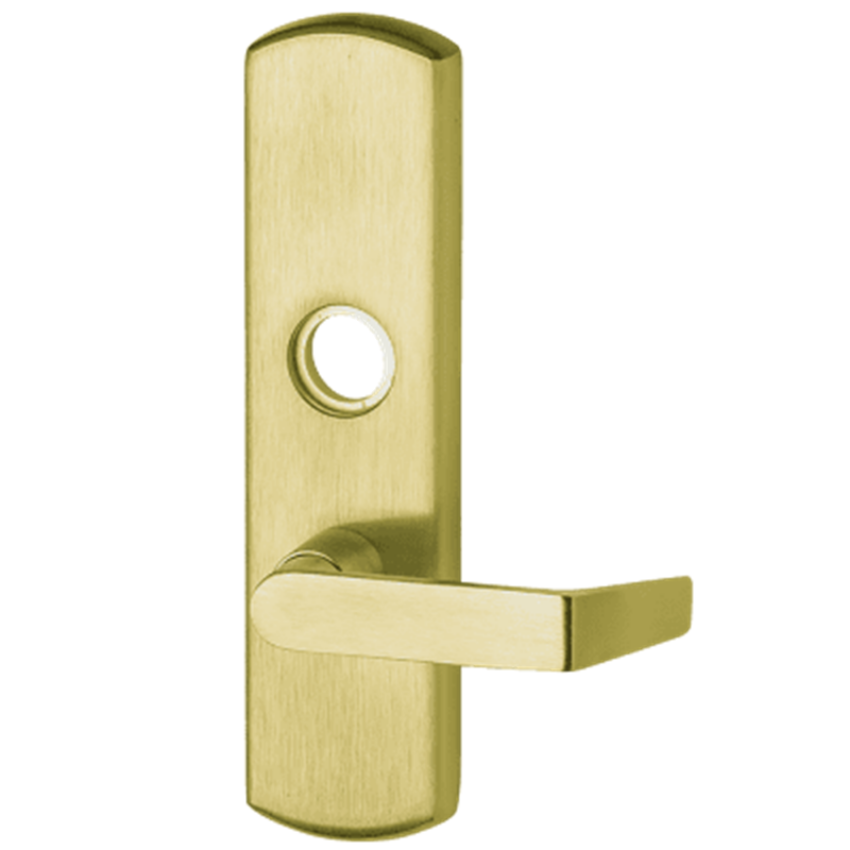

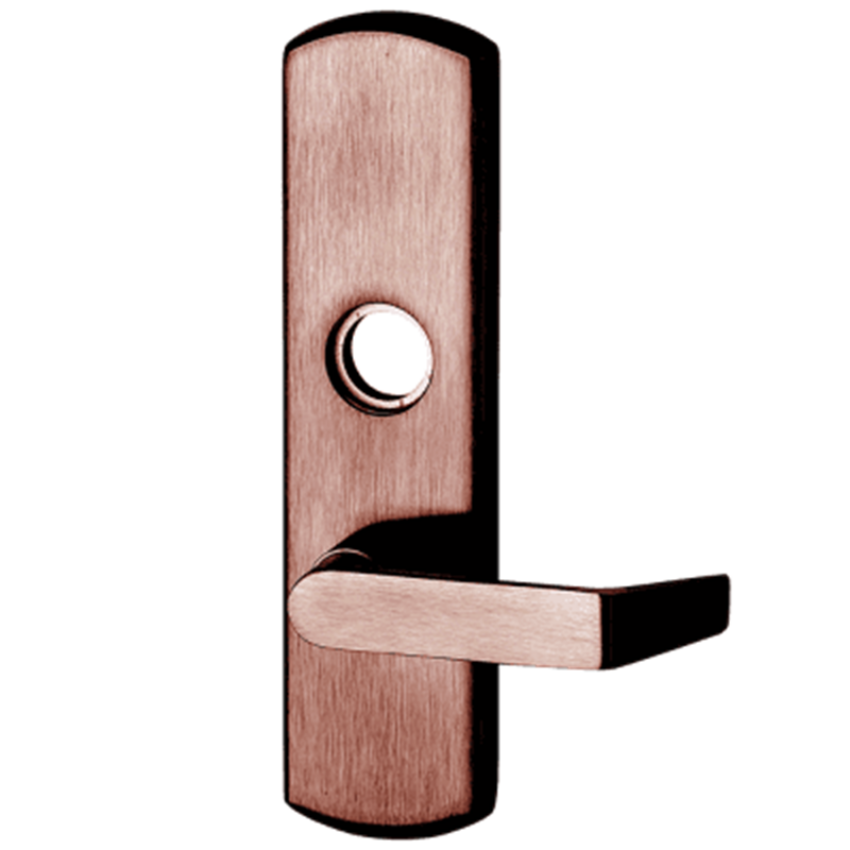

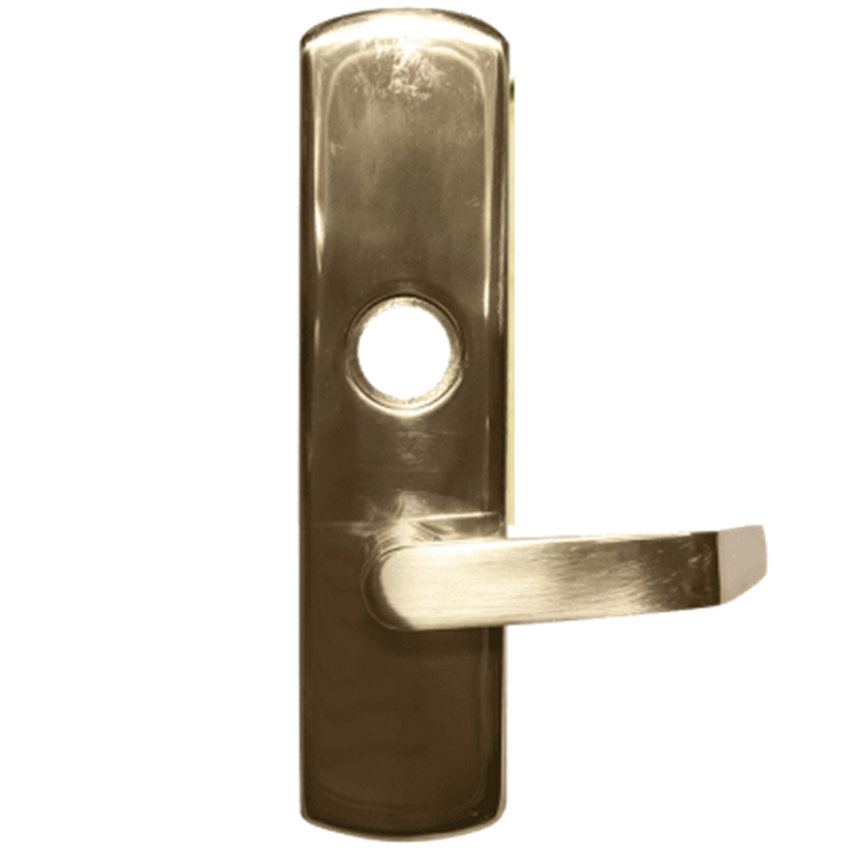

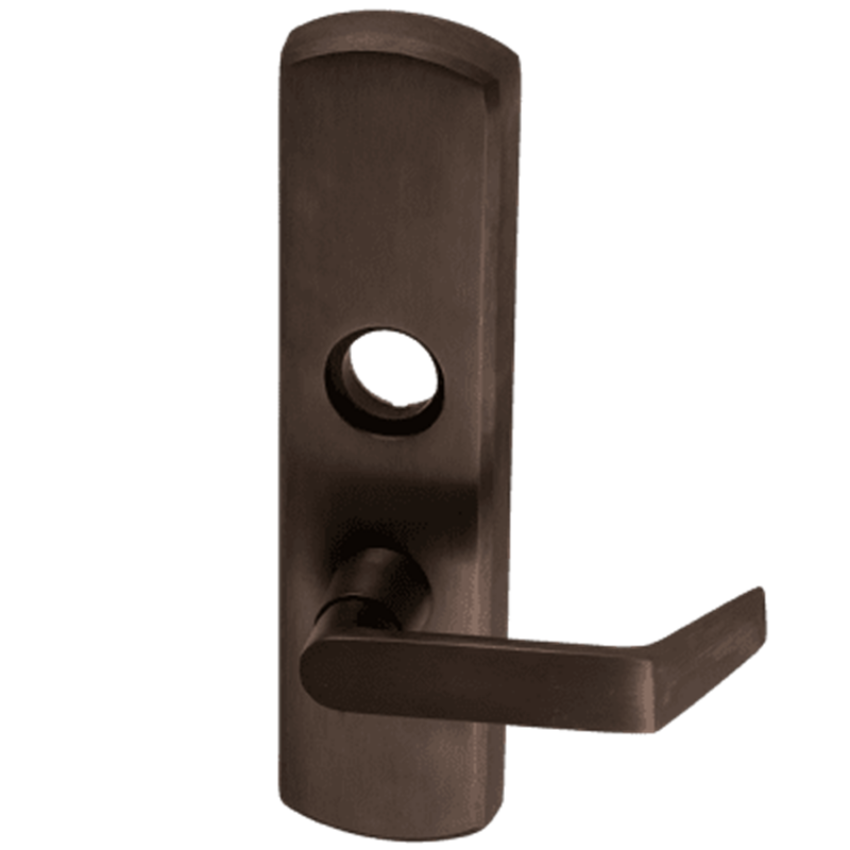

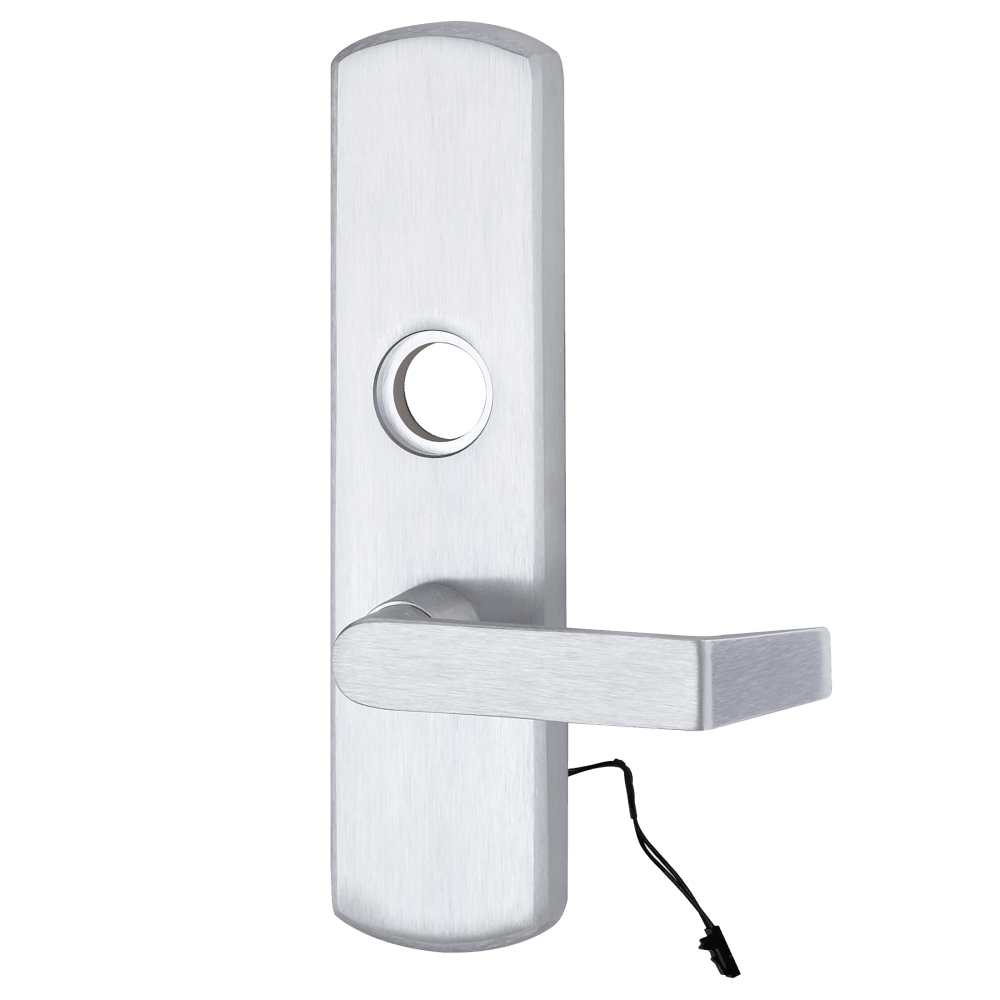

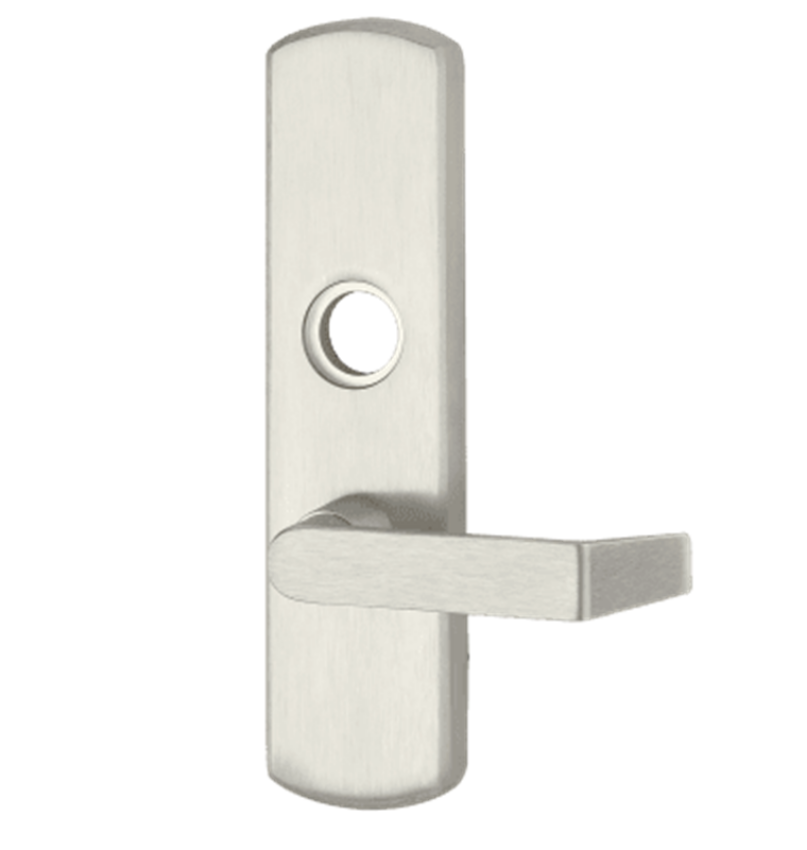

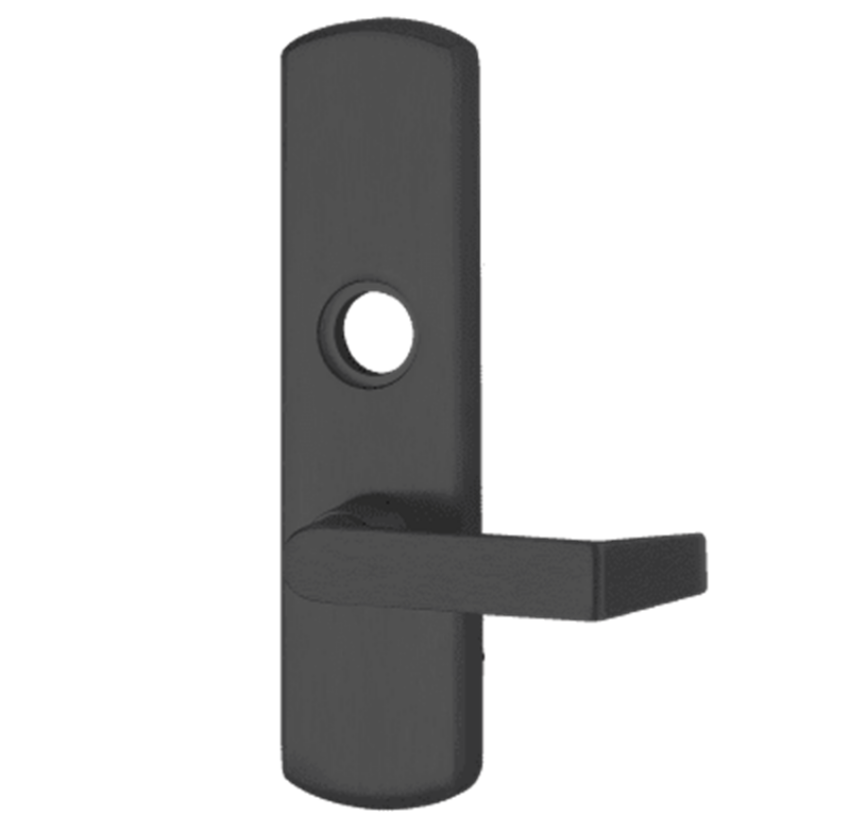

M996L-M Motorized Lever Trim, Mortise Prep

Compatible with 98/99 Series Mortise Exit Devices
*
  • US26D - Satin Chrome
    US26D - Satin Chrome
    Not available
  • US3 - Bright Brass
    US3 - Bright Brass
    Not available
  • US10B - Oil Rubbed Bronze
    US10B - Oil Rubbed Bronze
    Not available
  • US4 - Satin Brass
    US4 - Satin Brass
    Not available
  • US15 - Satin Nickel
    US15 - Satin Nickel
    Not available
  • US26 - Bright Chrome
    US26 - Bright Chrome
    Not available
  • US10 - Satin Bronze
    US10 - Satin Bronze
    Not available
  • SPBLK - Black Painted
    SPBLK - Black Painted
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 315 - Black
    315 - Black
    Not available
  • SP313 - Powder-Coated Dark Bronze
    SP313 - Powder-Coated Dark Bronze
    Not available
*
  • 06
    06
    Not available
  • 17
    17
    Not available
  • 01
    01
    Not available
  • 02
    02
    Not available
  • 03
    03
    Not available

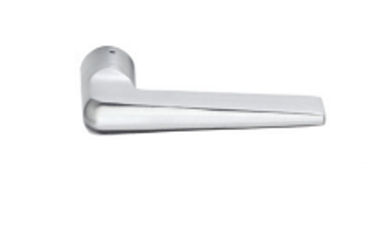

  • 05
    05
    Not available
  • 07
    07
    Not available
  • 12
    12
    Not available
  • 16
    16
    Not available
  • 18
    18
    Not available
*

Specification:
Dual voltage – up to 1.12 amps @ 12 VDC, Up to .59 amps @ 24 VDC.

ANSI function: 08
Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
Projection: 2 7⁄8" (73mm)
Handing: Handed/reversible

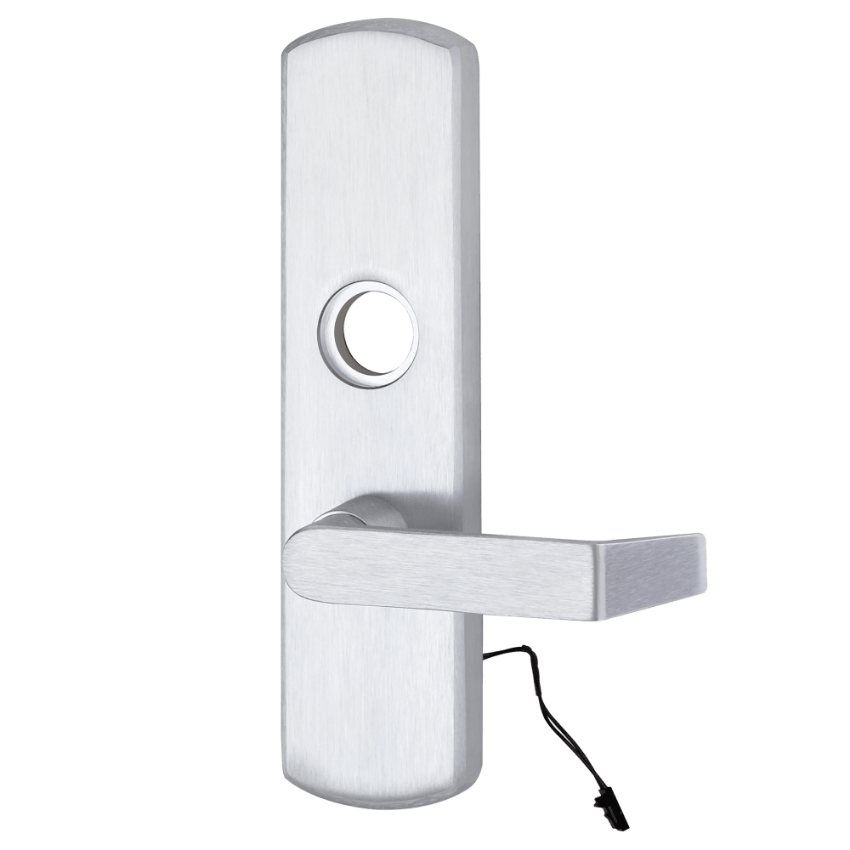

M996L/L-BE motor driven electrified breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented vandal-resistant trim design.  The motor can be energized from a distant controller, thus allowing access control of the opening.
The control of stairwells in high-rise buildings is a common application for this trim. M996 is furnished fail safe (FS) and convertible to fail secure (FSE) via dip switch. The M996 key bypass options are M996L (key functions as night latch mechanical override) or M996L-BE (no key override, blank escutcheon).

$1,822.00
$1,129.64
