Specification:
Dual voltage – up to 1.12 amps @ 12 VDC, Up to .59 amps @ 24 VDC.

ANSI function: 14
Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
Projection: 2 7⁄8" (73mm)
Handing: Handed/reversible

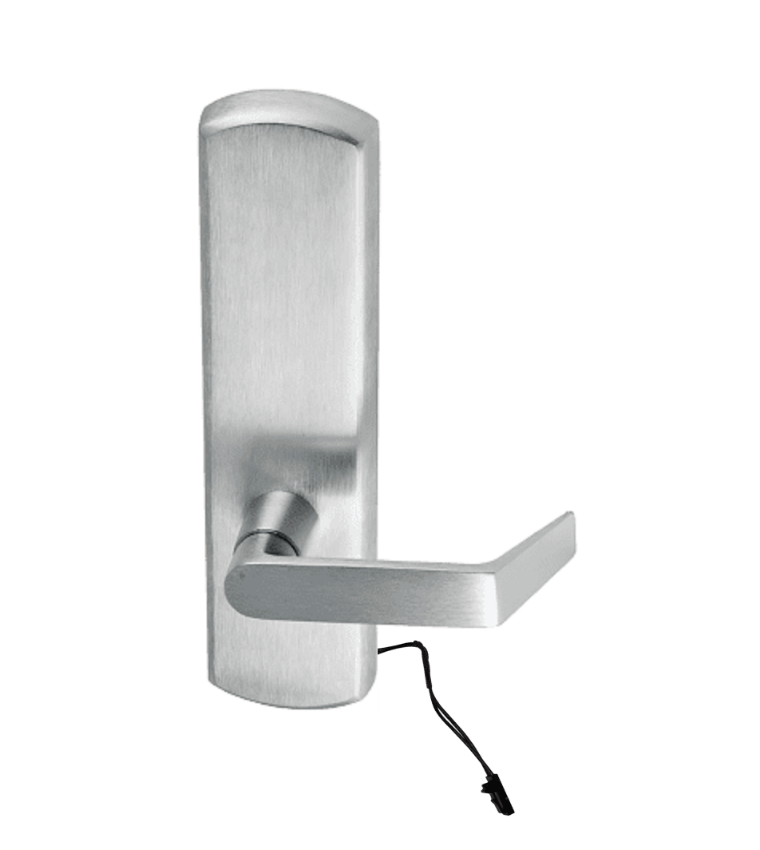

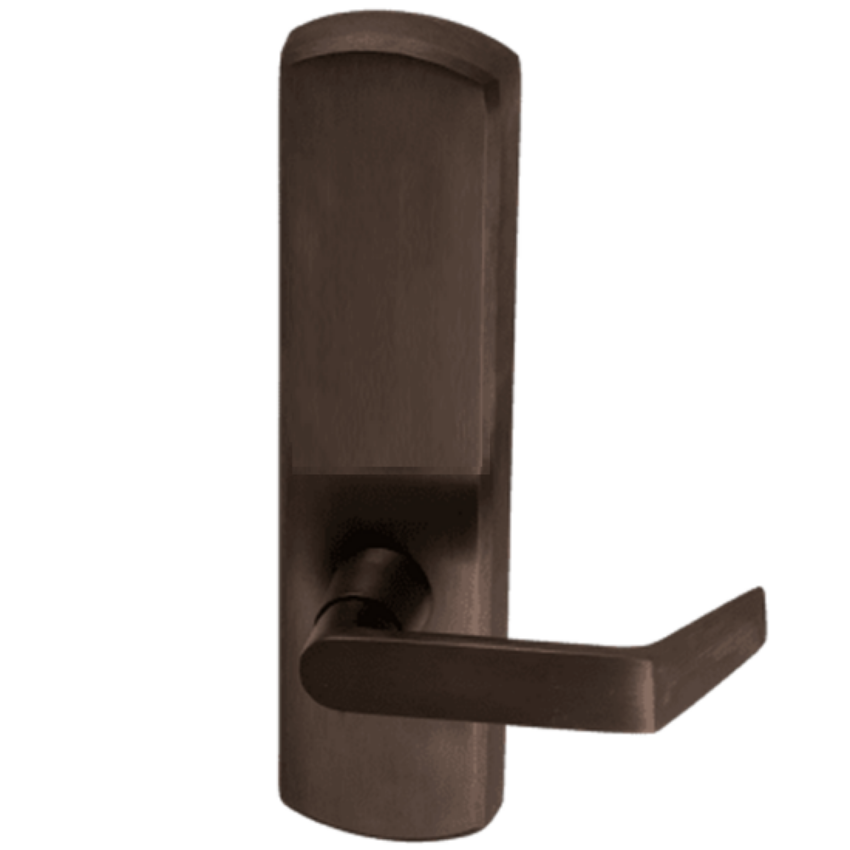

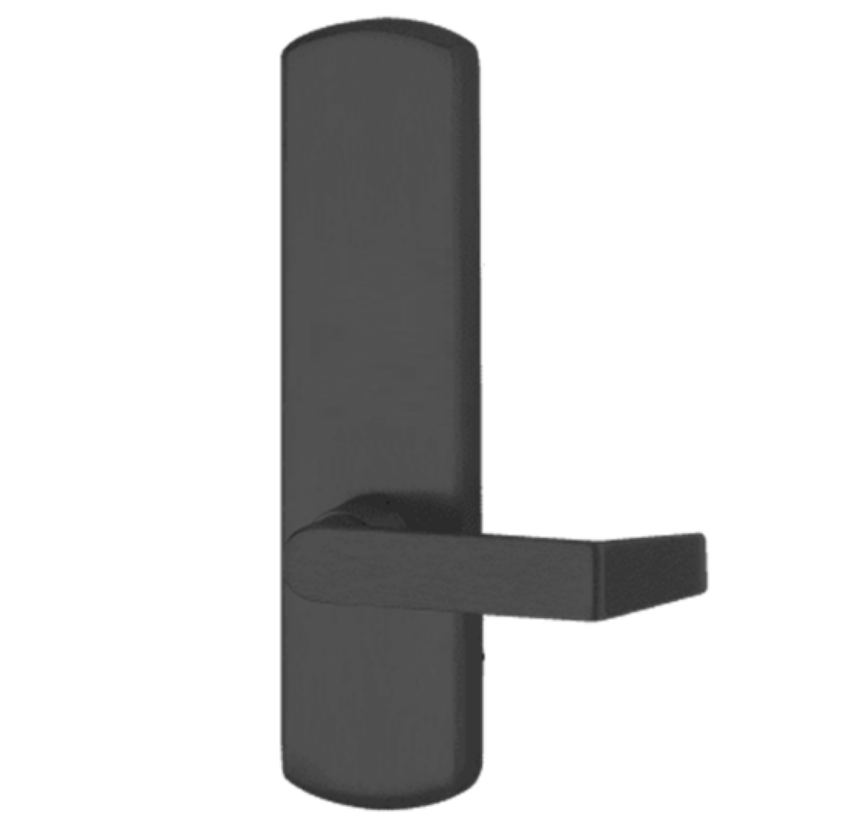

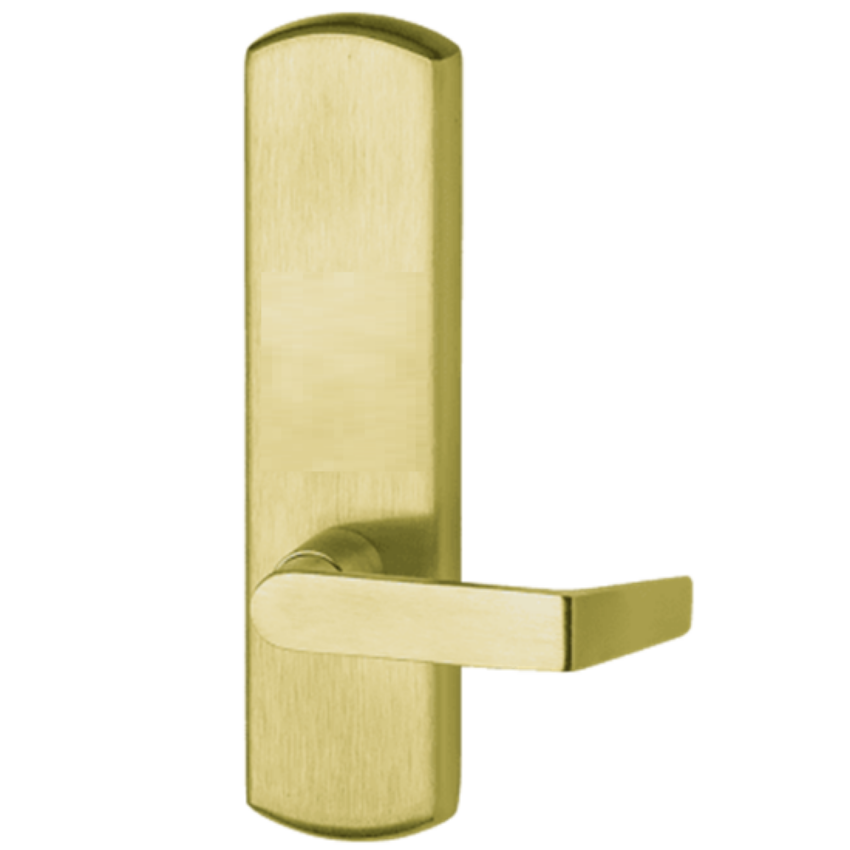

M996L/L-BE motor driven electrified breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented vandal-resistant trim design.  The motor can be energized from a distant controller, thus allowing access control of the opening.
The control of stairwells in high-rise buildings is a common application for this trim. M996 is furnished fail safe (FS) and convertible to fail secure (FSE) via dip switch. The M996 key bypass options are M996L (key functions as night latch mechanical override) or M996L-BE (no key override, blank escutcheon).
