Picture of Schlage

SKU: L1910-1

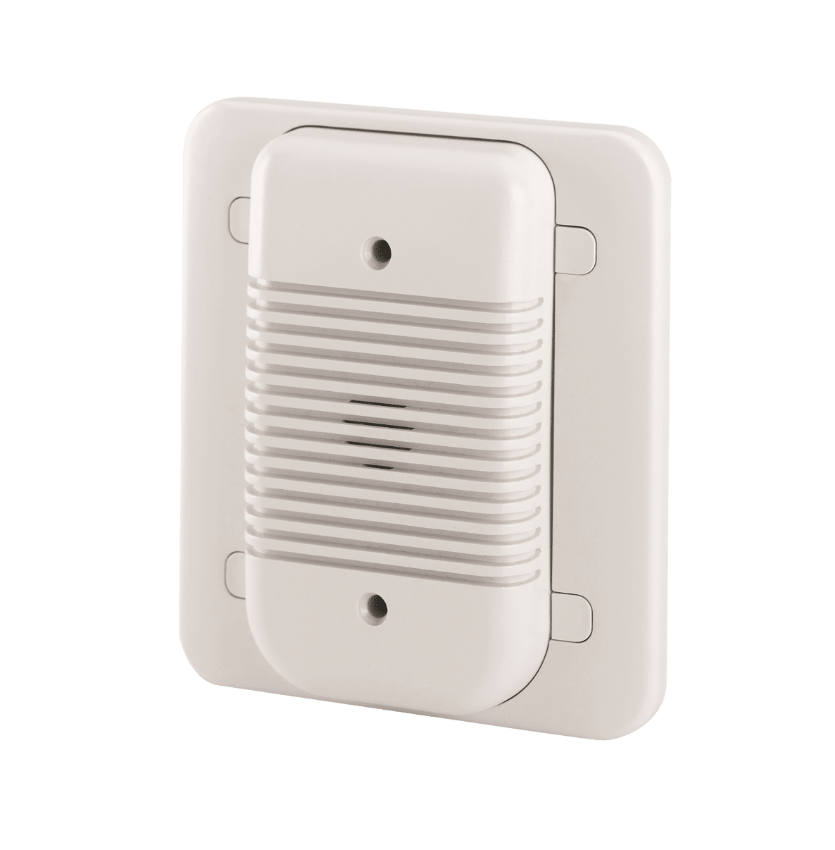

Schlage L1910-1 Electric Horn with Latching

Schlage L1910-1 electric horn with latching

Schlage

SKU: L1910-1

Schlage L1910-1 Electric Horn with Latching

In stock

Schlage L1910-1 is a 24 VDC electric horn with latching for indoor audible warning applications, including security systems, general alarms, and connected door entries.

Schlage L1910-1 is a 24 VDC electric horn with latching in the Schlage 1910 Series. It is designed as an immediate local audible warning device that can be incorporated into a security system. The latching version can alarm when a door latchbolt retracts or when the door opens and remains active after the latchbolt engages or the door closes until reset.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: L1910-1
Product Name: Electric Horn with Latching
Intended Use: Indoor use only
Dimensions: 4-3/4" W × 5-1/2" H
Mounting: Flush or surface mount
Voltage: 24 VDC
Latching: Yes
Current Draw: Less than 28 mA @ 24 VDC
Primary Function: Provides an audible warning signal for security and alarm systems
Application: Used for general alarm purposes or to signal an open door at specific entries
OEM Part: Yes
Warranty: 12 months from date of installation or 18 months from date of shipment from the manufacturer's factory
$1,145.00
$801.50
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage L1910-1?
The Schlage L1910-1 is a 24 VDC electric horn with latching in the 1910 Series.
What is the Schlage L1910-1 used for?
It is used as an immediate local audible warning device for security systems, general alarm purposes, or specific entries where an audible signal is needed when a door opens.
How does the latching function work?
The latching model can activate when the latchbolt retracts or the door opens and remains active after the latchbolt engages the strike and the door closes.
What voltage does the L1910-1 require?
The L1910-1 is a 24 VDC horn with a power requirement of less than 28 mA at 24 VDC.
Is the Schlage L1910-1 an OEM replacement part?
Yes. The Schlage L1910-1 is a genuine Schlage OEM part number for the 24 VDC electric horn with latching.
