Picture of Detex

SKU: ECL-620

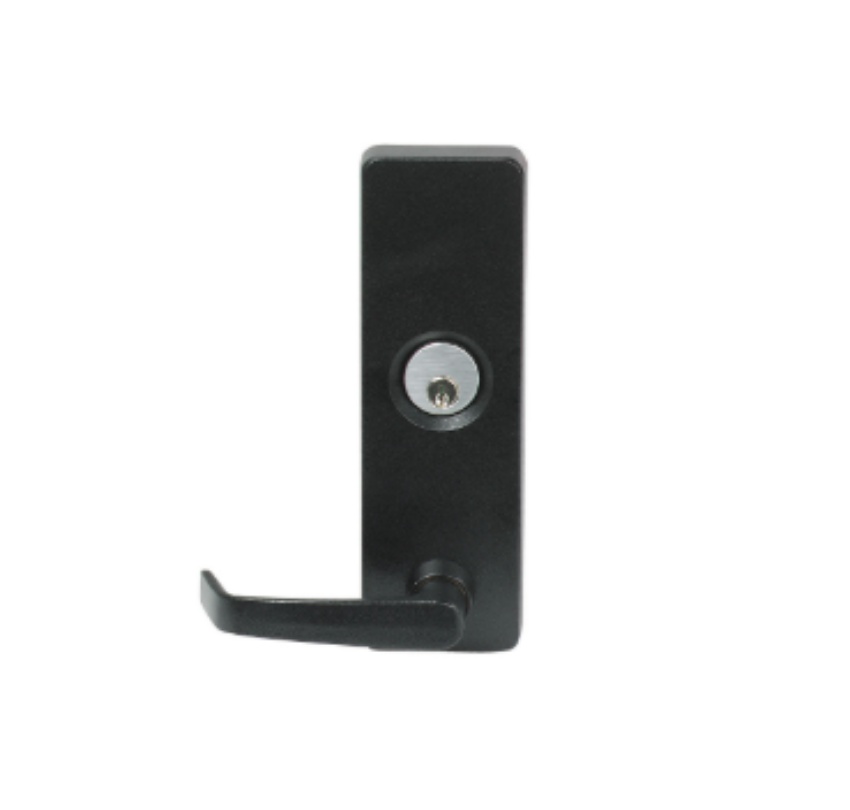

Detex ECL-620 Lever Trim

Picture of ECL-620 Lever Trim

Detex

SKU: ECL-620

Detex ECL-620 Lever Trim

The ECL-620 is a heavy-duty lever trim designed specifically for use with the ECL-600. Its keyed cylinder retracts the deadbolt, while the lever allows outside entry by operating the latch bolt.

Features

  • Modern design lever
  • Durable black finish
  • Recessed cylinder for vandal resistance
  • Key operates dead bolt
  • Lever always active, retractin only the latch bolt
  • Durable, through-bolted design
  • Requires standard rim cylinder

Technical Information

  •  Door Types - Wood, Hollow Metal or Aluminum
  • Door Thickness - Fits standard 1-3/4" - 2-1/4"
  • Minimum standard door width for ECL-600 is 34"
  • Door Stile - Fits minimum 5-3/4" with ECL-437K Strike (Std.)
  • Door Stile - Fits maximum 1-7/8" with ECL-475 Kit
  • Machine and Sheet Metal Screws (Std.)
  • Optional Sex Nuts or Security Torx Screws Available

Double Door requirements

  • Fire-Rated
     (2) ECL-600
     (3) ECL-445K Cylinders
     (1) F90KR Keyed Removable Mullion (3-hour fire-rated to 8'0" high
$504.00
$408.24
