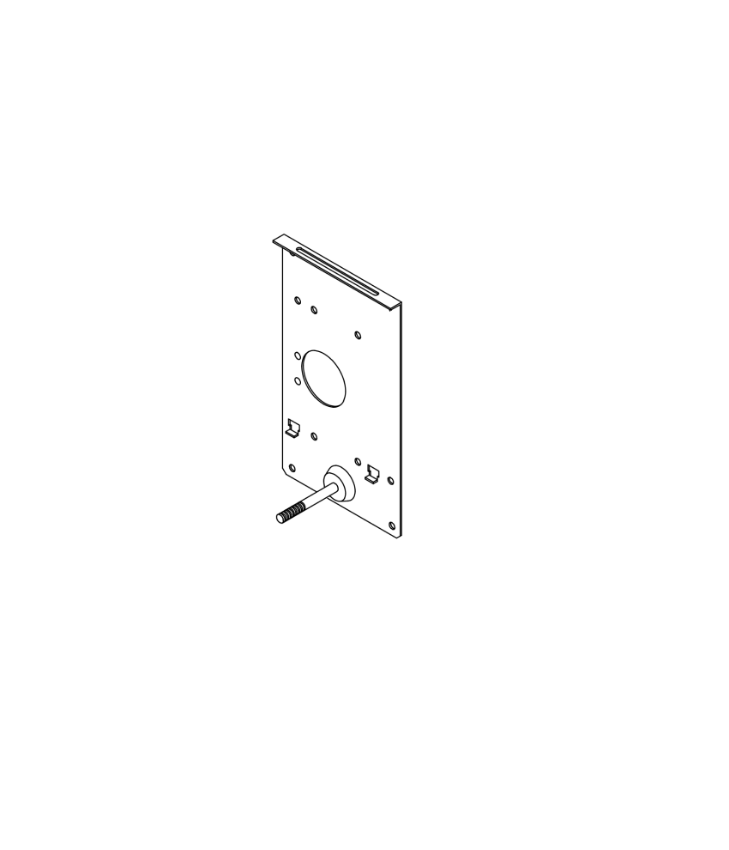

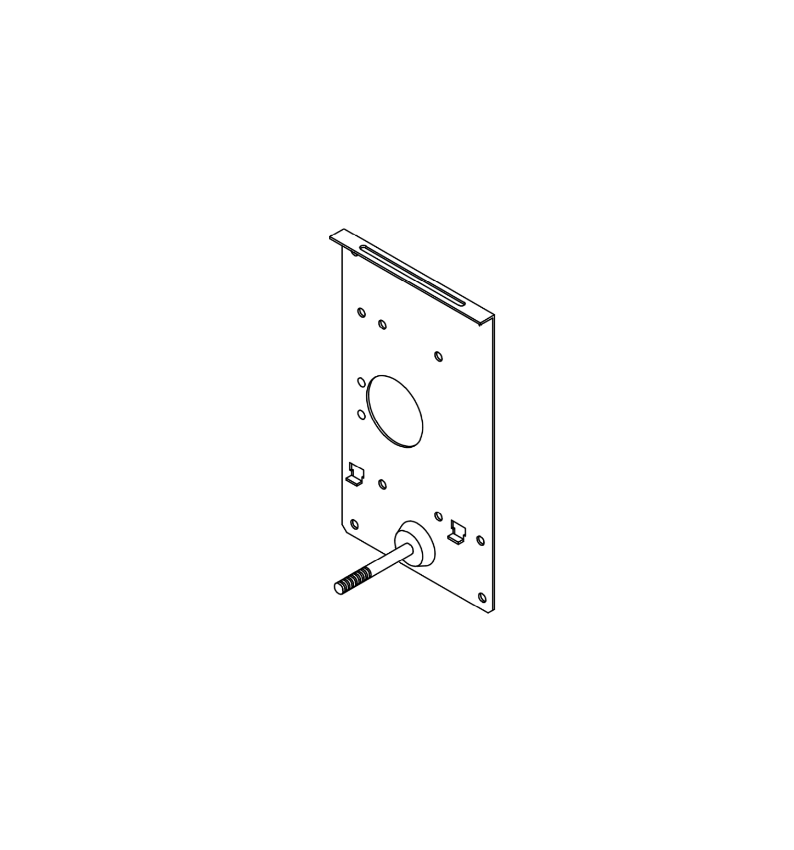

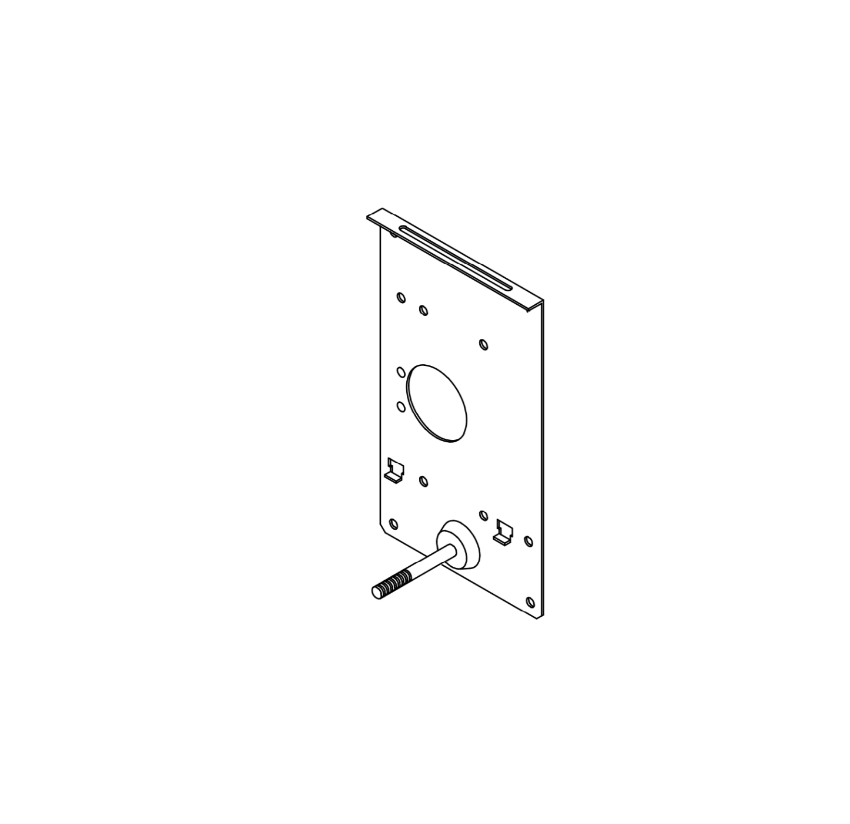

The Detex ECL-354AR is the OEM backplate for the Detex ECL-230D Series exit control lock, listed as Item 3 in the official Detex ECL-230D Parts Price List (PPL-ECL-230D). It is in stock and compatible with the ECL-230D Series only. The backplate is the structural mounting component that anchors the ECL-230D mechanism assembly, providing the base from which the paddle bar, bar shield, bar pin, and outer cover assemble outward. Item 4 in the parts diagram - the PP-5090-1 Retaining Ring - works directly in conjunction with the ECL-354AR backplate to retain cylinder and mechanism components in the correct position.

What the Detex Back Plate Does in the ECL-230D

The ECL-354AR is the internal structural plate that the ECL-230D's mechanism assembly seats against during installation. In the ECL-230D parts hierarchy, the mechanism components (internal deadbolt, detent lever assembly, actuator, and alarm electronics) are held together and positioned by the backplate as the base structure. The outer components - paddle bar, bar shield, paddle bar plate, and cover - then assemble over the backplate and mechanism to complete the device body.

When the backplate cracks, bends, or is damaged from a forced entry attempt, vandalism, or improper installation, the structural integrity of the full device body is compromised. The mechanism components can shift within the housing, creating misalignment between the detent lever, the deadbolt cam, and the alarm switch assembly. This misalignment produces the same field symptoms as worn internal parts - unreliable alarm triggering, deadbolt that doesn't hold position, or paddle bar that doesn't actuate the alarm correctly - even when the internal mechanism components are undamaged. Replacing the ECL-354AR backplate restores the correct structural geometry for all the components that mount against it.

Detex ECL-230D Alarm Parts: ECL-354AR Position in the Full Parts Diagram

The Detex ECL-230D Parts Price List (PPL-ECL-230D) numbers components from the internal mechanism outward. The ECL-354AR backplate is Item 3, positioned between the internal mechanism group (Items 1a through 1f) and the external paddle bar assembly (Items 4 through 9). The complete sequenced parts list confirms how the ECL-354AR interacts with every adjacent component:

Items 1a through 1f (the mechanism kit) = ECL-293A Detent Lever and Roller Assembly, ECL-1576-20 Actuator and Release Lever Kit, and related mechanism sub-components. These all seat within or against the backplate.

Items 2a through 2d (alarm electronics kit) = ECL-204-1 Switch Assembly, 100331 9V Battery Connector, PP-5966-1 Siren, 101796 Holder-Switch Actuator Kit. The alarm switch assembly interfaces with the mechanism at the backplate level.

Item 3 = ECL-354AR Backplate (this product). The structural base for all mechanism and electronics components.

Item 4 = PP-5090-1 Retaining Ring. Works directly with the backplate to retain the cylinder and internal components in position. If the ECL-354AR is being replaced, inspect the PP-5090-1 retaining ring at the same time.

Item 5 = ECL-236 Bar Pin. Connects the paddle bar to the mechanism.

Items 6, 7, 8 = ECL-332 Paddle Bar Short / ECL-2105 Paddle Bar Long, ECL-419 Bar Shield, ECL-8220 Paddle Bar Plate Short / ECL-2109 Paddle Bar Plate Long. These are the external paddle bar assembly components that the user interacts with.

Item 9 = ECL-355 Cover. The outer housing cover that completes the device body.

Detex ECL-230D Exit Alarm Parts: What Triggers a Backplate Replacement

The ECL-354AR backplate replacement is typically triggered by three field conditions. Physical damage from a forced entry attempt is the most common - when someone tries to pry or kick the ECL-230D off the door, the backplate absorbs the force and can crack at the mounting hole positions. Installation damage is the second - over-torqued mounting hardware can crack the backplate during initial installation without it being visible until the device is tested. The third is corrosion on exterior door applications where moisture gets behind the device body over time and compromises the backplate material.

In all three cases, the fix is the ECL-354AR replacement. The outer cover (ECL-355), paddle bar (ECL-332 or ECL-2105), and bar shield (ECL-419) can typically be reused from the existing device if they are undamaged, keeping the replacement cost to the backplate and any mechanism components that show wear during disassembly.
