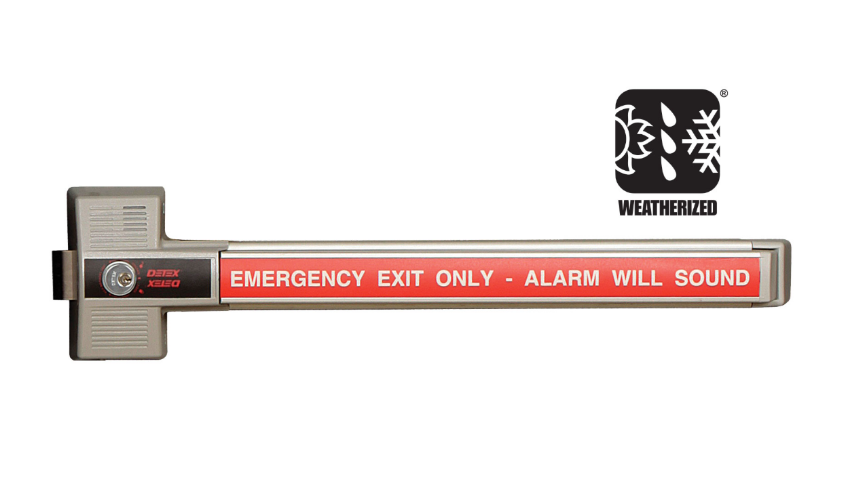

Detex ECL-230X-W Weatherized Exit Control Lock

Detex ECL-230X-W Weatherized Exit Control Lock

Detex

SKU: ECL-230X-W

Detex ECL-230X-W Weatherized Exit Control Lock

In stock

The Detex ECL-230X-W is a weatherized exit control lock featuring a single-point deadbolt, integrated 100 dB alarm, and weather-resistant construction for securing exterior secondary exits while maintaining code compliance.

Product Overview

The Detex ECL-230X-W from Detex is a weatherized exit control lock designed to secure exterior and other weather-exposed secondary exits using a single-point deadbolt with an integrated battery-powered alarm. Built with a 1-inch saw-resistant deadbolt and heavy-duty alloy construction, it provides high-security protection while meeting life safety requirements. The weatherized design is tested to military standards for rain and salt fog resistance, making it suitable for demanding outdoor applications. A built-in 100 dB alarm activates during unauthorized egress, while locking or unlocking the deadbolt arms or disarms the unit.

We are your trusted source for Detex commercial door hardware, exit control locks, access control products, and OEM replacement parts.

Features

  • Single-point weatherized exit control lock
  • 1-inch throw saw-resistant deadbolt
  • Over 3/4-inch deadbolt engagement into the strike
  • Heavy-duty alloy construction
  • Resists over 16,000 lbs of outside pull force
  • Weatherized internal components
  • Tested to MIL-STD 810F for driving rain and salt fog resistance
  • Built-in 100 dB battery-powered alarm
  • Uses one 9V battery
  • Locking or unlocking the deadbolt arms and disarms the alarm
  • Alarm reset requires a dedicated control key
  • Low-profile push paddle projects less than 4 inches from the door face
  • Meets International Building Code (IBC) projection requirements
  • Standard photo-luminescent push pad sign
  • Non-handed design
  • Adjustable for 36" to 48" wide doors
  • Fits 1-3/4" to 2-1/4" thick wood or hollow metal doors

Benefits

  • Provides secure single-point locking for secondary exits
  • Helps deter unauthorized exits with an integrated audible alarm
  • Suitable for outdoor and weather-exposed installations
  • Offers excellent resistance to forced entry and pull attacks
  • Maintains emergency exit visibility during power outages
  • Simplifies installation with a field-adjustable, non-handed design
  • Supports code-compliant commercial door applications

Double Door Requirements

    • (1) ECL-230X-W
      (1) RC65
      (1) DDSK
      (1) DDH-2250
            or
    • (2) ECL-230X-W
      (2) RC65
      (1) 90KR
$1,503.00
$1,202.40
minus minus

Catalogs

Frequently Asked Questions

What is the Detex ECL-230X-W?
The ECL-230X-W is a weatherized exit control lock with a single-point saw-resistant deadbolt and an integrated 100 dB alarm for securing exterior secondary exits.
Is the ECL-230X-W designed for outdoor use?
Yes. The unit features weatherized internal components and has been tested to MIL-STD 810F standards for driving rain and salt fog resistance.
What doors are compatible with the ECL-230X-W?
It fits non-handed commercial wood or hollow metal doors that are 36 to 48 inches wide and 1-3/4 to 2-1/4 inches thick.
How is the alarm operated?
The alarm is armed and disarmed by locking or unlocking the deadbolt. Once activated, it can only be reset using the dedicated control key.
What security features does the ECL-230X-W provide?
The lock includes a 1-inch saw-resistant deadbolt, over 3/4-inch frame engagement, heavy-duty alloy construction rated to withstand over 16,000 lbs of outside pull force, and a built-in 100 dB alarm for unauthorized exit deterrence.
