Product Overview

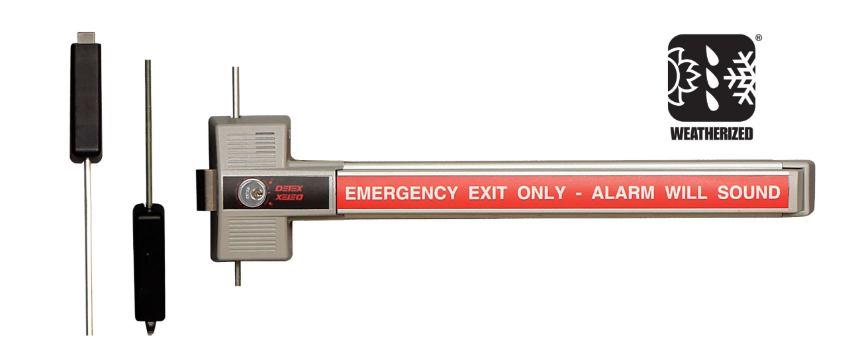

The Detex ECL-230X-W-TDB is a weatherized exit control lock from Detex featuring a rugged 3-point locking system with top bolt, bottom bolt, and 1-inch deadbolt, plus a battery-powered 100 dB alarm for securing secondary exits. Designed for outdoor and wet-location applications, it incorporates corrosion-resistant components, saw-resistant deadbolts, and a durable photo-luminescent push plate for emergency visibility. The deadbolt automatically arms and disarms the alarm during locking and unlocking, while alarm reset requires a control key.

We are your trusted source for Detex commercial door hardware, exit control locks, access control products, and OEM replacement parts.

Features

• Weatherized design for outdoor and wet environments
• 3-point locking system with:
• Saw-resistant deadbolts
• Corrosion-resistant alloy lock body
• Integrated 100 dB battery-powered alarm
• Includes durable photo-luminescent push plate
• Locking and unlocking the deadbolt arms and disarms the alarm
• Alarm can only be reset using the control key
• Non-handed design
• Low-profile design meeting 4-inch projection requirements
• Fits standard 36–48 inch doors (optional configuration available for 30–36 inch doors)
• Accepts standard 5-pin through 7-pin rim cylinders and interchangeable core cylinders without a cylinder collar

Benefits

• Helps secure secondary exits in exterior applications
• Provides multiple locking points for enhanced security
• Resists forced entry with saw-resistant deadbolts
• Maintains operation in outdoor and wet environments
• Improves emergency visibility with a glow-in-the-dark push plate
• Provides audible notification of unauthorized exit attempts
• Simplifies operation by automatically arming and disarming the alarm with the deadbolt
• Fits a wide range of commercial door openings with one standard device

Double Door Requirements

• • (1) ECL-230X-W-TDB
    (1) RC65
    (1) DDSK
          or
  • (2) ECL-230X-W-TDB
    (2) RC65
    (1) 90KR
