Detex ECL-230X-W-TD Weatherized Exit Control Lock

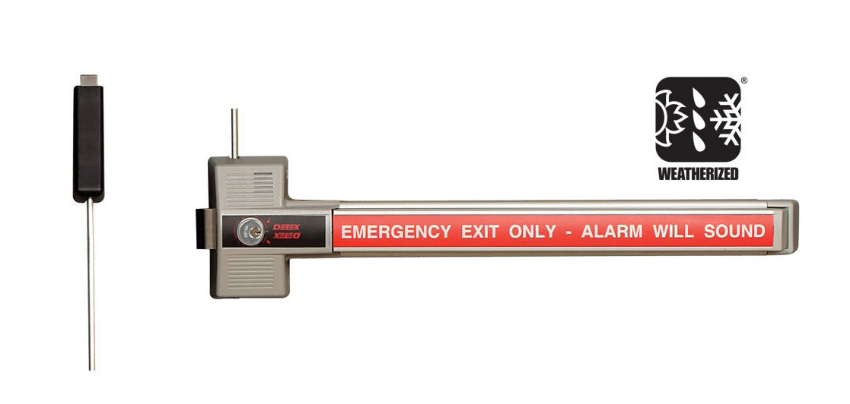

Detex ECL-230X-W-TD weatherized exit control lock

Detex

SKU: ECL-230X-W-TD

Detex ECL-230X-W-TD Weatherized Exit Control Lock

Available (2 - 3 weeks)

The Detex ECL-230X-W-TD is a weatherized, battery-powered 2-point exit control lock with a deadbolt, top bolt, and 100 dB alarm for securing secondary exits in outdoor or wet environments.

Product Overview

The Detex ECL-230X-W-TD is a weatherized 2-point exit control lock designed by Detex for commercial secondary exits requiring enhanced security in outdoor or wet environments. It combines a 1-inch deadbolt with a 3/4-inch top bolt, a battery-powered 100 dB alarm, and a durable photo-luminescent exit sign. The weather-resistant design conforms to UL1034 temperature and dust requirements and MIL-STD 810F driving rain and salt fog testing. The lock automatically arms and disarms the alarm when the deadbolt is locked or unlocked and accepts standard 5-pin through 7-pin rim cylinders.

We are your trusted source for Detex commercial door hardware, exit control locks, access control products, and OEM replacement parts.

Features

  • Weatherized 2-point exit control lock
  • 1-inch throw deadbolt with just over 3/4-inch frame engagement
  • 3/4-inch throw top bolt with just over 5/8-inch strike engagement
  • 100 dB battery-powered alarm
  • Saw-resistant deadbolts
  • Corrosion-resistant alloy lock body
  • Durable photo-luminescent sign
  • Alarm automatically arms and disarms with deadbolt operation
  • Surface/flush reversible strike
  • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without a cylinder collar
  • Non-handed design
  • Low-profile construction meeting the 4-inch maximum door projection requirement
  • Alarm reset requires a control key
  • Optional 9VDC hardwire capability with BE-961-1 or BE-961-2

Benefits

  • Provides two-point locking for increased exit security.
  • Designed for reliable operation in outdoor and wet environments.
  • Helps deter unauthorized exits with a loud 100 dB alarm.
  • Improves visibility during power loss with a glow-in-the-dark sign.
  • Supports common commercial rim cylinders without requiring a cylinder collar.
  • Simplifies installation with a non-handed design and reversible strike.
  • Allows optional hardwired power when required.

Double Door Requirements

    • (1) ECL-230X-W-TD
      (1) RC65
      (1) DDSK
            or
    • (2) ECL-230X-W-TD
      (2) RC65
      (1) 90KR
$2,201.00
$1,760.80
minus minus

Catalogs

Frequently Asked Questions

What is the Detex ECL-230X-W-TD?
It is a weatherized, battery-powered 2-point exit control lock with a deadbolt, top bolt, and 100 dB alarm for commercial secondary exits.
What makes the ECL-230X-W-TD suitable for outdoor installations?
It conforms to UL1034 temperature and dust requirements and MIL-STD 810F driving rain and salt fog testing for outdoor or wet environments.
How is the alarm armed and disarmed?
Locking and unlocking the deadbolt automatically arms and disarms the alarm.
What cylinders are compatible with this lock?
It accepts standard 5-pin through 7-pin rim cylinders and interchangeable core rim cylinders without requiring a cylinder collar.
Can the ECL-230X-W-TD be hardwired?
Yes. Optional 9VDC hardwiring is available using the Detex BE-961-1 or BE-961-2 accessory.
