Product Overview

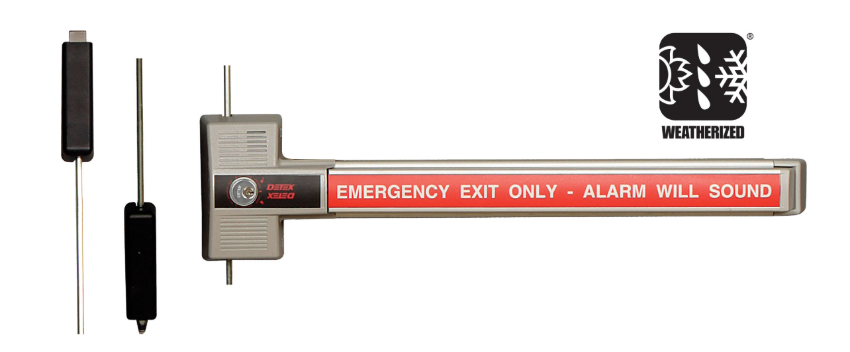

The Detex ECL-230X-W-TB is a weatherized 2-point exit control lock designed to secure secondary exits using top and bottom locking bolts while providing a 100 dB battery-powered alarm for unauthorized door openings. Built by Detex for outdoor and wet-environment applications, it features a durable photo-luminescent exit sign, non-handed installation, and a low-profile design that meets International Building Code projection requirements. The weather-resistant construction makes it suitable for exterior commercial doors while maintaining the same rugged security and alarm functionality found throughout the ECL-230X series.

We are your trusted source for Detex commercial door hardware, exit control locks, access control products, and OEM replacement parts.

Features

• Weatherized design for outdoor or wet environments
• 2-point locking system with top and bottom bolts
• 3/4-inch throw top and bottom locks with just over 5/8-inch strike engagement
• 100 dB battery-powered alarm
• Durable photo-luminescent exit sign
• Non-handed design
• Low-profile design meeting International Building Code 4-inch maximum projection requirement
• Alarm reset requires a control key
• One size fits 36"–48" doors for code-compliant acceptance

Benefits

• Helps secure secondary exits against unauthorized use
• Suitable for exterior openings exposed to weather
• Provides highly visible exit identification during low-light conditions
• Simplifies installation with a reversible, non-handed design
• Helps reduce employee and customer theft
• Straightforward operation for authorized users

Double Door Requirements

• • (1) ECL-230X-W-TB
    (1) RC65
    (1) DDSK
          or
  • (2) ECL-230X-W-TB
    (2) RC65
    (1) 90KR
