Product Overview

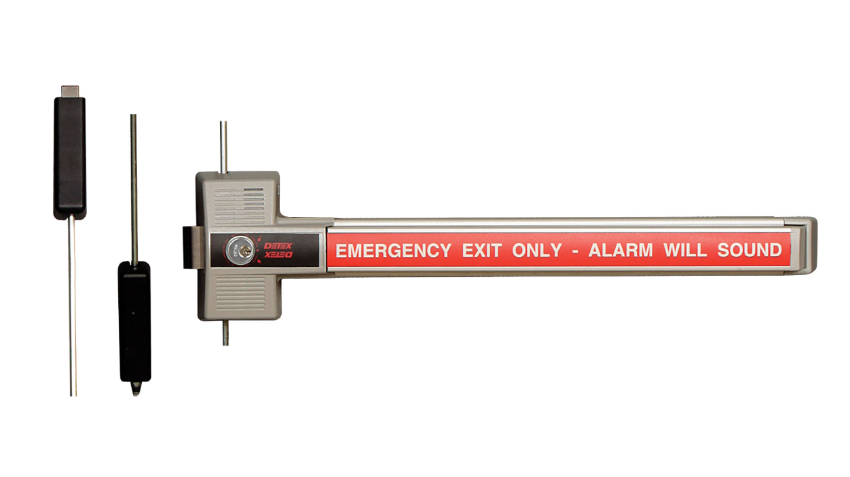

The Detex ECL-230X-TDB is a heavy-duty, battery-alarmed 3-point exit control lock designed by Detex to provide maximum security for secondary exit doors. It combines a 1-inch throw deadbolt with top and bottom locking bolts to help resist forced entry while maintaining code-compliant emergency exit operation. The integrated 100 dB alarm and photo-luminescent sign help discourage unauthorized exits and improve visibility during power outages. Designed for commercial facilities requiring enhanced exit security, the device features attack-resistant construction, corrosion-resistant lock components, and straightforward operation.

We are your trusted source for Detex commercial door hardware, exit control locks, access control products, and OEM replacement parts.

Features

• Three-point locking design
• 1-inch throw deadbolt with just over 3/4-inch frame engagement
• 3/4-inch throw top and bottom locking bolts with approximately 5/8-inch strike engagement
• Battery-powered 100 dB alarm
• Photo-luminescent exit sign
• Saw-resistant deadbolts
• Corrosion-resistant alloy lock body
• Locking and unlocking the deadbolt arms and disarms the alarm
• Non-handed design
• Surface/flush reversible strike
• Accepts standard and interchangeable core rim cylinders (5-pin through 7-pin)

Benefits

• Provides three independent locking points for increased door security.
• Helps deter unauthorized exits with an integrated 100 dB alarm.
• Maintains code-compliant emergency egress.
• Improves visibility during low-light conditions with a photo-luminescent sign.
• Durable construction is designed for demanding commercial environments.
• Simplifies installation with a non-handed configuration.
• Allows convenient alarm arming and disarming through deadbolt operation.

Double Door Requirements

• • (1) RC65
    (1) DDSK
          or
  • (2) ECL-230X-TDB
    (2) RC65
    (1) 90KR
