Product Overview

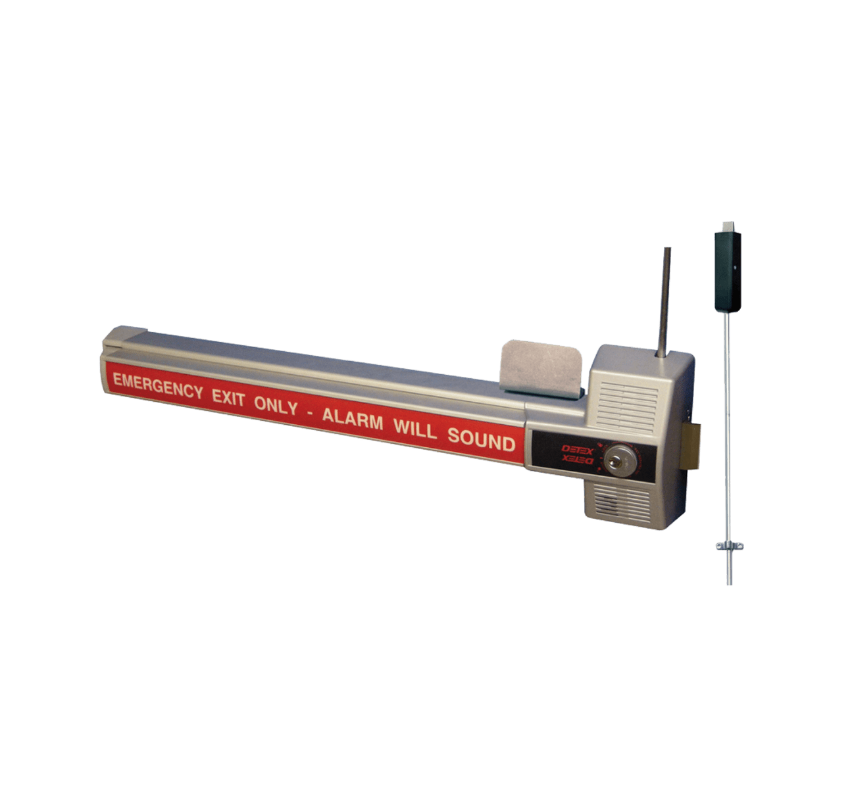

The Detex ECL-230X-TD is a rugged 2-point exit control lock that combines a 1-inch deadbolt with a 3/4-inch top bolt to provide enhanced security for secondary exit doors. Manufactured by Detex, this battery-powered device includes a 100 dB alarm, a photo-luminescent exit sign, and code-compliant panic hardware for commercial applications. The deadbolt automatically arms and disarms the alarm when locked or unlocked, while the control key is required to reset the alarm after activation.

We are your trusted source for Detex commercial door hardware, exit control locks, access control products, and OEM replacement parts.

Features

• 2-point locking system with 1-inch deadbolt and 3/4-inch top bolt
• Saw-resistant deadbolts
• Corrosion-resistant alloy lock body
• 100 dB battery-powered alarm
• Photo-luminescent exit sign
• Locking and unlocking the deadbolt automatically arms and disarms the alarm
• Surface/flush reversible strike
• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without a cylinder collar
• Low-profile design meeting the International Building Code 4-inch projection requirement
• Non-handed design
• Alarm reset requires a control key
• Powered by one included 9-volt battery
• Optional BE-961-1 or BE-961-2 available for 9VDC hardwiring

Benefits

• Provides enhanced security through dual locking points.
• Helps deter unauthorized exits and theft with a 100 dB alarm.
• Maintains code-compliant emergency egress.
• Improves visibility during power loss with a glow-in-the-dark sign.
• Simplifies installation with a non-handed design.
• Supports standard and interchangeable core rim cylinders.
• Offers attack-resistant construction for increased holding force.

Double Door Requirements

• • (1) ECL-230X-TD
    (1) RC65
    (1) DDSK
           or
  • (2) ECL-230X-TD
    (2) RC65
    (1) 90KR
