Product Overview

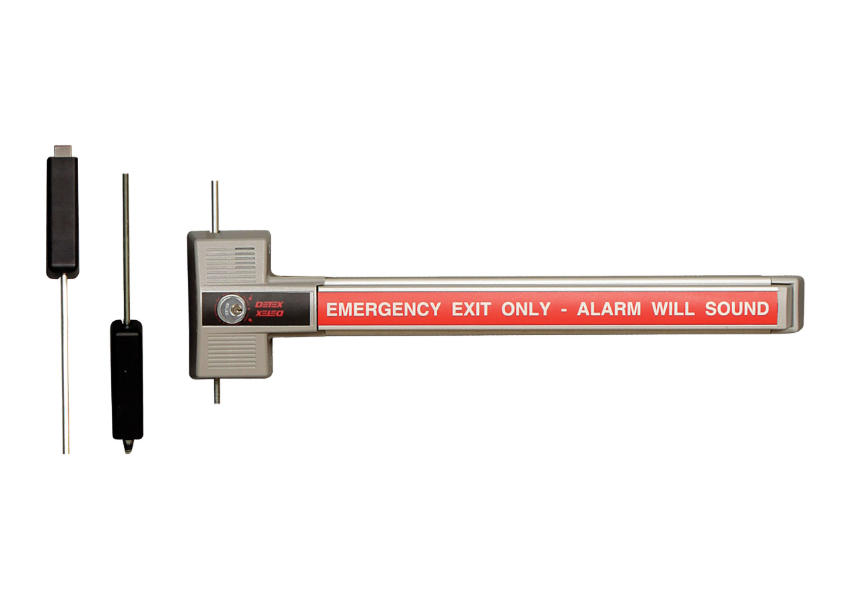

The Detex ECL-230X-TB is a rugged, battery-powered 2-point exit control lock designed by Detex to secure secondary exits while providing controlled emergency egress. It combines top and bottom locking bolts with a built-in 100 dB alarm and a photoluminescent push plate sign to help deter unauthorized exits while maintaining code compliance. The device features non-handed operation, accepts standard and interchangeable core rim cylinders, and is designed for commercial facilities requiring enhanced exit security. SecurityParts.com is your trusted source for Detex commercial door hardware, exit control products, and OEM security hardware solutions.

We are your trusted source for Detex commercial door hardware, exit control locks, access control products, and OEM replacement parts.

Features

• Battery-powered exit control lock
• 2-point locking with top and bottom bolts
• 3/4" throw top and bottom locks
• Just over 5/8" bolt engagement with the strike
• Built-in 100 dB alarm
• Photoluminescent push plate sign
• Non-handed design
• Low-profile design meeting 4-inch projection requirement
• Alarm resets only with control key
• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without a cylinder collar
• One size fits 36"–48" doors
• Optional upgrade available for additional locking points (DX3)

Benefits

• Helps secure secondary exit doors against unauthorized use
• Provides audible alarm notification when the device is activated
• Dual locking points increase door security
• Photoluminescent sign remains visible during low-light conditions
• Simplifies inventory with non-handed installation
• Compatible with multiple rim cylinder configurations
• Suitable for a wide range of commercial facilities requiring controlled emergency egress

Double Door Requirements

• • (1) ECL-230X-TB
    (1) RC65
    (1) DDSK
          or
  • (2) ECL-230X-TB
    (2) RC65
    (1) 90KR
