Picture of Detex

SKU: ECL-230X

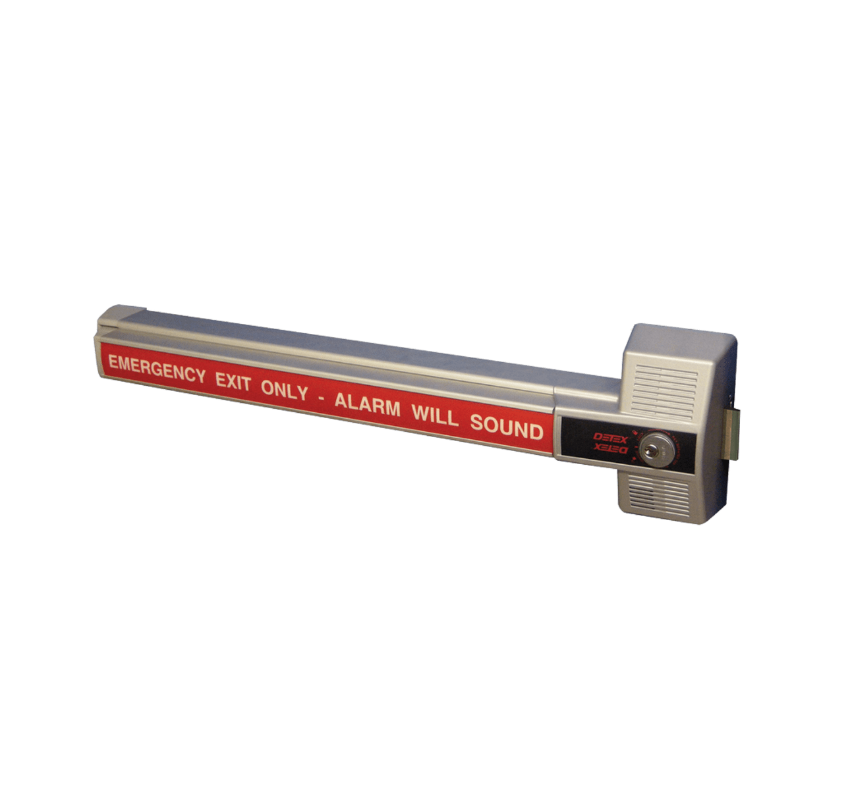

Detex ECL-230X Exit Control Lock

Detex ECL-230X exit control lock

Detex

SKU: ECL-230X

Detex ECL-230X Exit Control Lock

In stock

The ECL-230X is a code-compliant, battery-powered alarmed deadbolt panic device designed for secondary exits. Featuring a photo-luminescent sign and a 100 dB alarm, it provides maximum security and clear exit notification.

Product Overview

The Detex ECL-230X is a code-compliant, battery-powered exit control lock designed to secure secondary exits with a rugged deadbolt panic device and an integrated 100 dB alarm. The alarm arms and disarms whenever the deadbolt is locked or unlocked using the control key, while the photo-luminescent push pad sign remains visible during low-light conditions. The non-handed design and low-profile construction help simplify installation while meeting International Building Code projection requirements. Ideal for commercial facilities requiring managed exit security, the ECL-230X provides dependable protection without restricting emergency egress.

We are your trusted source for Detex commercial door hardware, exit control products, and OEM replacement parts.

Features

  • Dead bolt lock -1” throw with just over 3/4” engagement with the frame
  • Saw resistant dead bolt
  • Corrosion resistant alloy lock body
  • 100 decibel alarm, powered by 9-volt battery (included)
  • Surface/flush reversible strike
  • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
  • Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed
  • Locking and unlocking (dead bolt) always arms and disarms the alarm
  • Non-handed
  • Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door
  • Resetting the alarm can only be accomplished with a control key
  • For 9VDC hardwiring add BE-961-1 or BE-961-2

Benefits

  • Attack resistant design for maximum holding force
  • Proven durability and reliability at a reasonable price
  • Easy to install
  • Easy to see if the lights go out
  • Time tested construction resists attack from the inside
  • One size fits 36”-48” doors for code compliant acceptance
  • For additional security with 4 locking points, specify ECL-230X-DX3
  • Reduces employee and customer theft
  • Straightforward operation that everyone understands

Double Door Requirements

    • (1) ECL-230X
      (1) RC65
      (1) DDSK
      (1) DDH-2250
  •                 or
    • (2) ECL-230X
      (2) RC65
      (1) 90KR
$1,160.00
$928.00
minus minus

Catalogs

Frequently Asked Questions

What is the Detex ECL-230X?
It is a code-compliant exit control lock that combines a deadbolt panic device with a battery-powered 100 dB alarm.
How is the alarm armed and disarmed?
The alarm is armed and disarmed by locking or unlocking the deadbolt with the control key.
Can the alarm be reset without a key?
No. The alarm can only be reset using the control key.
Is the ECL-230X handed?
No. The device features a non-handed design for installation on either door handing.
What type of visibility feature does the ECL-230X include?
It includes a durable photo-luminescent push pad sign that glows after absorbing ambient light.
