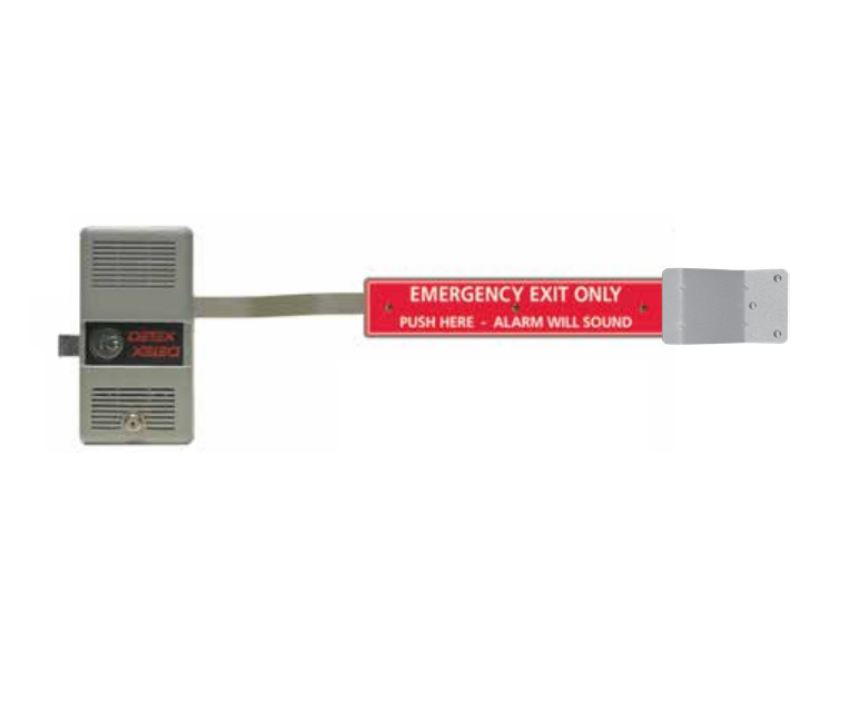

Detex ECL-230D-PH Exit Control Lock with Long Bar

Detex ECL-230D-PH Exit Control Lock with Long Bar Panic Hardware

Detex

SKU: ECL-230D-PH

Detex ECL-230D-PH Exit Control Lock with Long Bar

In stock

The ECL-230 is a code-compliant, battery-powered alarmed deadbolt panic device designed for secondary exits. Its rugged steel plate, photo-luminescent sign, and 100 dB alarm provide reliable managed security and clear exit notification.
*
  • Gray
    Gray
    Not available
  • Black
    Black
    Not available

Product Overview

The Detex ECL-230D-PH is a complete exit control lock manufactured by Detex for commercial doors requiring panic hardware. It combines a rugged single-point 1-inch throw deadbolt, a long panic bar, a durable steel plate with a photo-luminescent exit sign, and a battery-powered 100 dB alarm to help secure secondary exits while maintaining code compliance. The device is non-handed, accepts standard and interchangeable core rim cylinders, and automatically arms or disarms the alarm when the deadbolt is locked or unlocked.

We are your trusted source for commercial door hardware, access control products, and genuine OEM security solutions.

Features

  • Long-bar panic hardware design for 36-inch doors
  • Single-point deadbolt with 1-inch throw
  • Saw-resistant deadbolt construction
  • Powerful 100 dB battery-operated alarm
  • Includes 9-volt battery
  • Corrosion-resistant alloy lock body
  • Non-handed design for easier installation
  • Alarm automatically arms and disarms when locking or unlocking
  • Compatible with 5-pin, 6-pin, and 7-pin rim cylinders
  • Alarm reset requires a dedicated control key
  • Durable steel plate with photo-luminescent emergency sign
  • Gray finish standard
  • English push plate sign included standard
  • Surface strike included (ECL-437K)

Benefits

  • Helps secure secondary exits while maintaining code compliance
  • Provides audible notification of unauthorized exit attempts
  • Photo-luminescent sign remains visible during low-light conditions
  • Flexible cylinder compatibility for commercial applications
  • Simplifies installation with a non-handed design

Technical Information

  • Door Types - Wood, Hollow Metal or Aluminum
  • Door Thickness - Fits standard 1-3/4" - 2-1/4"
  • Minimum standard door width for ECL-230D is 34"
  • Door Stile - Fits minimum 5-3/4" with ECL-437K Strike (Std.)
  • Door Stile - Fits minimum 1-7/8" with ECL-475 Kit
  • Machine and Sheet Metal Screws (Std.)
  • Optional Sex Nuts or Security Torx Screws Available

Double Door Requirements

    • (1) ECL-230
      (1) RC65
      (1) ECL-435K
      (1) DDH-2250
  •                 or
    • (1) ECL-230
      (1) RC65
      (1) VRA-143
             or
    • (2) ECL-230D
      (2) RC65
      (1) 90KR
$649.00
$519.20
minus minus

Catalogs

Frequently Asked Questions

What is the Detex ECL-230D-PH?
It is a complete battery-alarmed exit control lock with long bar panic hardware for commercial secondary exits.
Does the ECL-230D-PH include an alarm?
Yes. It features a battery-powered 100 dB alarm.
What type of locking mechanism does it use?
It uses a single-point 1-inch throw deadbolt.
Is the device handed?
No. The ECL-230D-PH has a non-handed design.
What cylinders are compatible?
It accepts 5-pin through 7-pin standard and interchangeable core rim cylinders.
