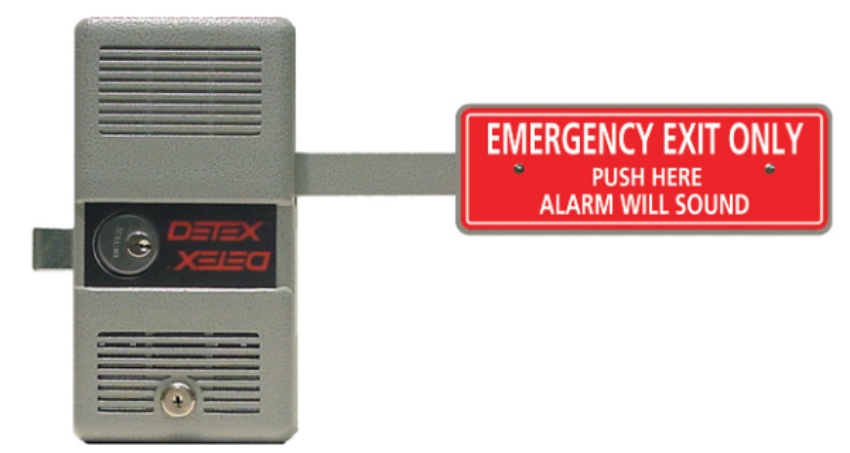

Detex ECL-230D Exit Control Lock

Detex ECL-230D Exit Control Lock

Detex

SKU: ECL-230D

Detex ECL-230D Exit Control Lock

In stock

The ECL-230 is a code-compliant, battery-powered alarmed deadbolt panic device designed for secondary exits. Its rugged steel plate, photo-luminescent sign, and 100 dB alarm provide reliable managed security and clear exit notification.
*
  • Gray
    Gray
    Not available
  • Black
    Black
    Not available

Product Overview

The Detex ECL-230D Exit Control Lock by Detex is a code-compliant, battery-alarmed deadbolt designed to secure secondary exit doors while maintaining safe emergency egress. It features a single-point 1-inch throw deadbolt, a durable steel plate with a photo-luminescent exit sign, and a 100 dB alarm that activates when unauthorized use occurs. The lock accepts standard and interchangeable core rim cylinders ranging from 5-pin through 7-pin configurations, and locking or unlocking the deadbolt automatically arms or disarms the alarm. Its non-handed design simplifies installation while the attack-resistant construction withstands over 2,200 pounds of outside pull force.

We are your trusted source for commercial door hardware, security hardware, access control products, and OEM Detex solutions.

Features

  • Single point, 1" throw dead bolt
  • Saw resistant dead bolt
  • Corrosion resistant alloy lock body
  • 100 decibel alarm, powered by 9-volt battery (included)
  • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
  • Resetting the alarm can only be accomplished with a control key
  • Non-handed
  • Locking and unlocking the dead bolt always arms and disarms the alarm

Benefits

  • Attack resistant design withstands over 2200 lbs. of outside pull force
  • Proven durability and reliability at a reasonable price
  • Reduces employee and customer theft
  • Easy to install
  • Time tested construction resists attack from the inside
  • Durable steel plate with photo luminescent sign absorbs light to then “glow in the dark” when lights are dimmed
  • Easy to see if the lights go out
  • Straightforward operation that everone understands

Technical Information

  • Door Types - Wood, Hollow Metal or Aluminum
  • Door Thickness - Fits standard 1-3/4" - 2-1/4"
  • Minimum standard door width for ECL-230D is 20"
  • Door Stile - Fits minimum 5-3/4" with ECL-437K Strike (Std.)
  • Door Stile - Fits minimum 1-7/8" with ECL-475 Kit
  • Machine and Sheet Metal Screws (Std.)
  • Optional Sex Nuts or Security Torx Screws Available

Double Door Requirements

    • (1) ECL-230
      (1) RC65
      (1) ECL-435K
      (1) DDH-2250
  •                 or
    • (1) ECL-230
      (1) RC65
      (1) VRA-143
             or
    • (2) ECL-230D
      (2) RC65
      (1) 90KR
$563.00
$450.40
minus minus

Frequently Asked Questions

What is the Detex ECL-230D?
The ECL-230D is a battery-powered, alarmed exit control lock designed to secure secondary exits while maintaining code-compliant emergency egress.
How loud is the alarm?
The ECL-230D includes a 100 dB alarm to help deter unauthorized exits.
What cylinders are compatible with the ECL-230D?
It accepts 5-pin through 7-pin standard and interchangeable core rim cylinders.
Is the ECL-230D handed?
No. The device features a non-handed design for easier installation.
How is the alarm armed or disarmed?
Locking and unlocking the deadbolt automatically arms and disarms the alarm.
