Product Overview

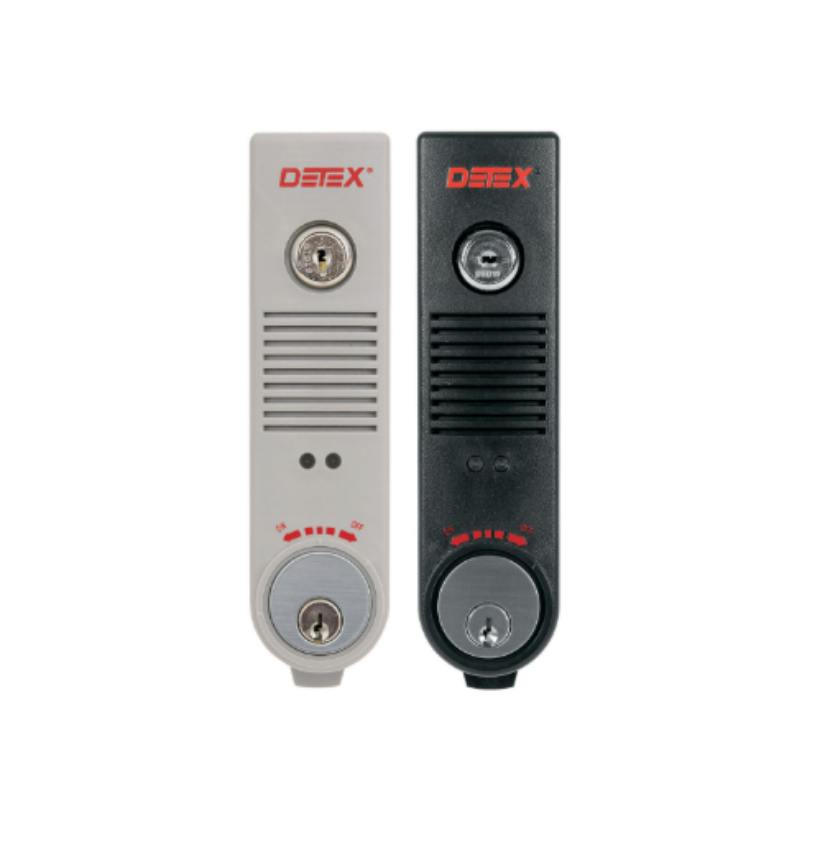

The Detex EAX-500 is a battery-powered door alarm designed to provide audible notification when an unauthorized exit is attempted through a secured door. Manufactured by Detex, it is intended for emergency exit doors and restricted access doors where local alarm notification is required. The unit features an approximately 100 dB piezo alarm, an intelligent circuit that automatically detects magnet location and door handing, and a tapered cover that allows installation on narrow stile doors. The alarm can only be silenced using the proper control key, helping reduce unauthorized tampering.

We are your trusted source for commercial door hardware, security hardware, access control products, and OEM replacement parts.

Features

• Patented plastic template allows for foolproof alignment of internal magnetic door contact and accurate installation
• Tapered cover allows for installation on narrow stile doors
• Intelligent circuit senses th external magnet location automatically and sets the correct door handing
• Patented cam assembly automatically adjusts for different sizes of cylinders without use of spacers
• Alarm can only be silenced by proper control key
• 100 dB piezo alarm
• LED visual and audible arming indicators
• Modern graphics on cover to demonstrate key rotation and operation
• 9VDC battery operated with Low Battery Alert
• Key required to reset alarm
• Field selectable 2-minute auto rearm, if desired
• Field selectable status indicators, if desired

Benefits

•  Low cost, self-contained door alarm with piezo horn that sounds to warn unauthorized use of a door or gate
• Secure, tamper resistant housing
• Door or wall mount
• Quick, easy installation saves time and money

Mechanical Option

• SK1 Kit allows for wall mounting and includes (1) white MS-1039S door contact
• SK2 Kit allows for wall mounting and includes (2) white MS-1039S door contact
• SK3 Kit allows for wall mounting and includes (1) brown MS-1059S door contact
• SK4 Kit allows for wall mounting and includes (2) brown MS-1059S door contacts
• SK5 Kit allows for wall mounting and includes (1) grey MS-2049S door contact
• SK6 Kit allows for wall mounting and includes (2) grey MS-2049S door contact
• KS - Key Stop, factory installed
• SI - Status Indicator On
• 102644 - In-Swing Door Kit

Electrical Option

• Weatherized for use on gates or doors that are subjected to inclement weather

Technical Information

•  Machine and Self-Drilling Screws (Std)
•  Optional Sex Nuts or Security Torx Screws available
• Optional Cylinder Nut Wrench
