Detex EAX-3500 Timed Bypass Exit Alarm

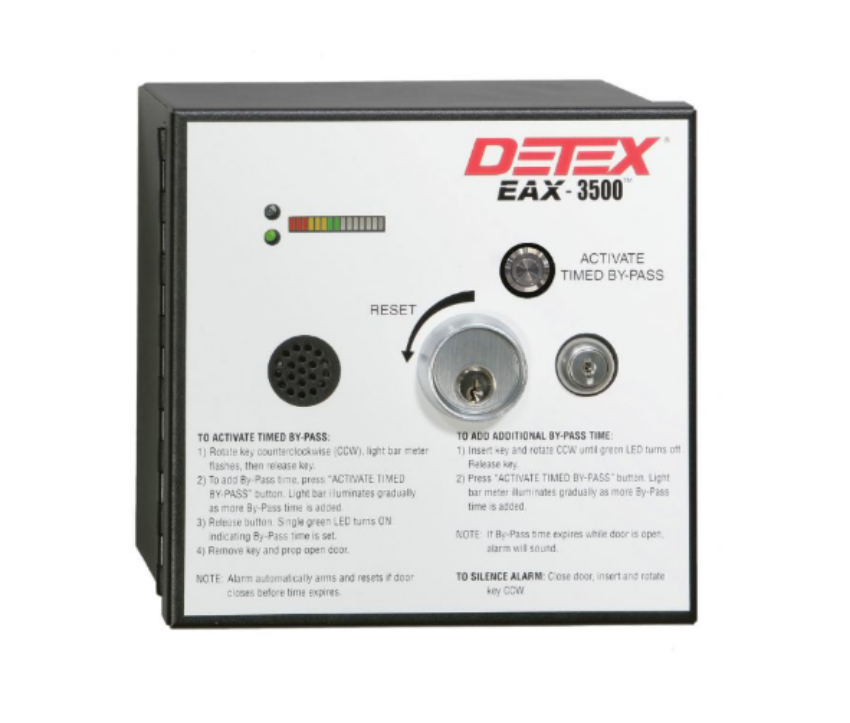

Detex EAX-3500 timed bypass exit alarm

Detex

SKU: EAX-3500

Detex EAX-3500 Timed Bypass Exit Alarm

In stock

The Detex EAX-3500 is a hardwired timed bypass exit alarm designed to monitor emergency exit doors while allowing authorized temporary access for deliveries and maintenance. It features a rechargeable backup battery and a 100 dB alarm for commercial security applications.

Product Overview

The Detex EAX-3500 is a hardwired timed bypass exit alarm manufactured by Detex for commercial exit doors requiring controlled egress with authorized temporary access. Designed for facilities that need both security and operational convenience, the unit provides a timed bypass function for deliveries, trash removal, and other authorized traffic while reminding users to re-secure the door after the bypass period.

We are your trusted source for commercial door hardware, security products, access control hardware, and OEM replacement parts.

Features

  • Hard-wired low voltage power with rechargeable battery insures uninterrupted secure power feed
  • Maximum allowable bypass time can be factory set or field-adjusted to 5, 10, 20 or 40 minutes
  • Bypass time is easily set using two simple slide jumpers, located inside secured enclosure
  • 100dB alarm, powered by 12 to 24 VAC and rechargeable backup battery (included)
  • Low battery alert
  • Rechargeable backup battery provides 72-hours of operation
  • Timed bypass allows alarm to remain bypassed for allotted minutes, automatically rearming upon door closing
  • Accepts 5, 6 or 7-pin standard and interchangeable core mortise cylinders with a standard Yale cam
  • Patented cam assembly automatically adjusts for different size/length cylinders without the use of additional spacers or cylinder collars
  • Resetting the alarm can only be accomplished with a control key

Benefits

  • Allows manager to temporarily bypass the alarm, but does not allow the alarm to be turned off
  • Reminds manager to close and secure the door, minimizing door prop time
  • Minimizing door prop time saves energy cost
  • Minimizing door prop time reduces exposure to theft and threat of robbery
  • Simple, on-the-cover instructions make operation easy
  • LEDs illustrate armed status and bypass time, allowing quick easy reference
  • Alarm demands attention even in noisy environments
  • Tamper-resistant housing and circuits prevent dishonest employees from defeating alarm
  • Mortise cylinder sold separately, allowing alarm to be keyed to existing master-key system, helping to maintain key control

Compatibility

  • EAX-3500 Series

Includes

  • EA-561 Warning Sign
$1,496.00
$1,196.80
minus minus

Catalogs

Frequently Asked Questions

What is the Detex EAX-3500?
The Detex EAX-3500 is a hardwired timed bypass exit alarm designed for commercial exit doors requiring controlled egress security.
Does the EAX-3500 include a timed bypass feature?
Yes. It provides a timed bypass function for authorized access such as deliveries and maintenance activities.
What happens during a power failure?
The EAX-3500 includes a rechargeable backup battery to maintain alarm operation during power interruptions.
How loud is the alarm?
The alarm produces a 100 dB audible signal when unauthorized door use is detected.
Is the EAX-3500 intended for commercial applications?
Yes. The EAX-3500 is designed for commercial facilities that require monitored emergency exit security with authorized timed access.

The Detex EAX-3500 timed bypass exit alarm features a 100 dB alarm, rechargeable backup battery, and hardwired operation for commercial exit door security.
