Picture of Detex

SKU: EAX-300

Detex EAX-300 Battery Powered Door Prop Alarm

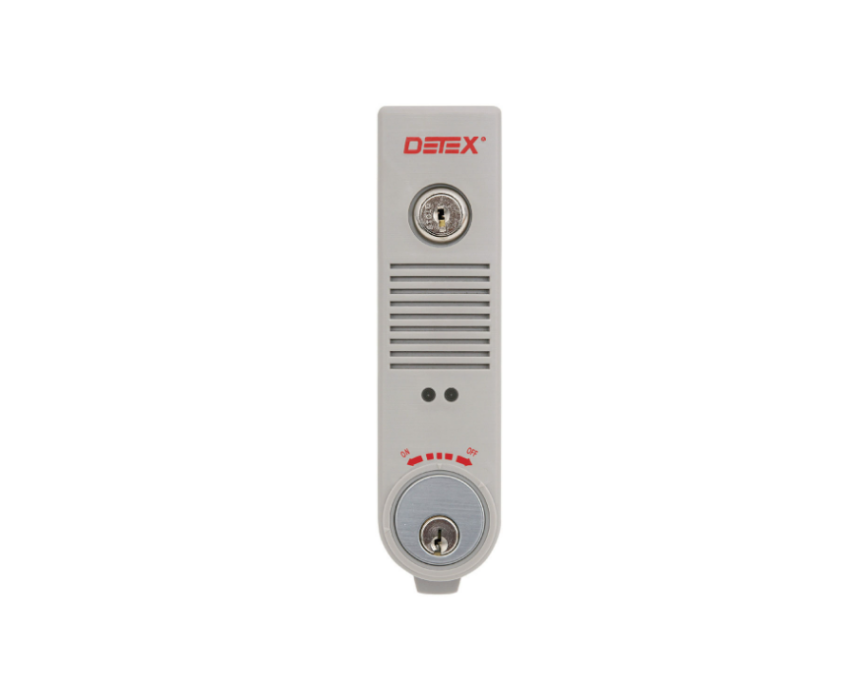

Detex EAX-300 gray battery powered door prop alarm
Detex EAX-300 black battery powered door prop alarm
Dynamic Image
Detex EAX-300 gray battery powered door prop alarm
Detex EAX-300 black battery powered door prop alarm

Detex

SKU: EAX-300

Detex EAX-300 Battery Powered Door Prop Alarm

In stock

The Detex EAX-300 Series is designed for doors that allow entry and exit but must not be held or propped open. With field-selectable door-open times from 1 second to 4 minutes and a compact design, it offers quick and easy installation with flexible monitoring.
*

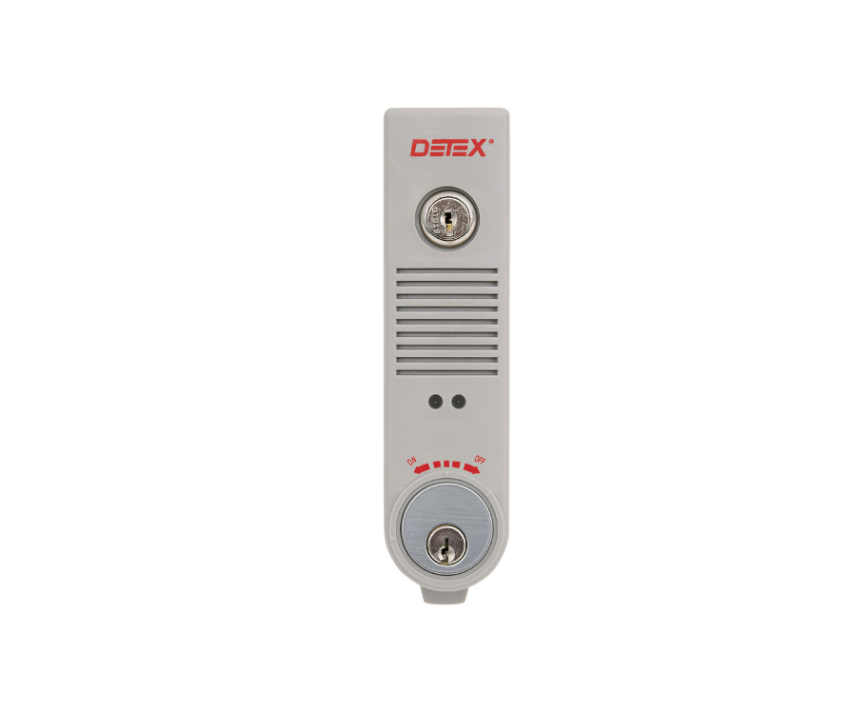

  • GY - Grey
    GY - Grey
    Not available

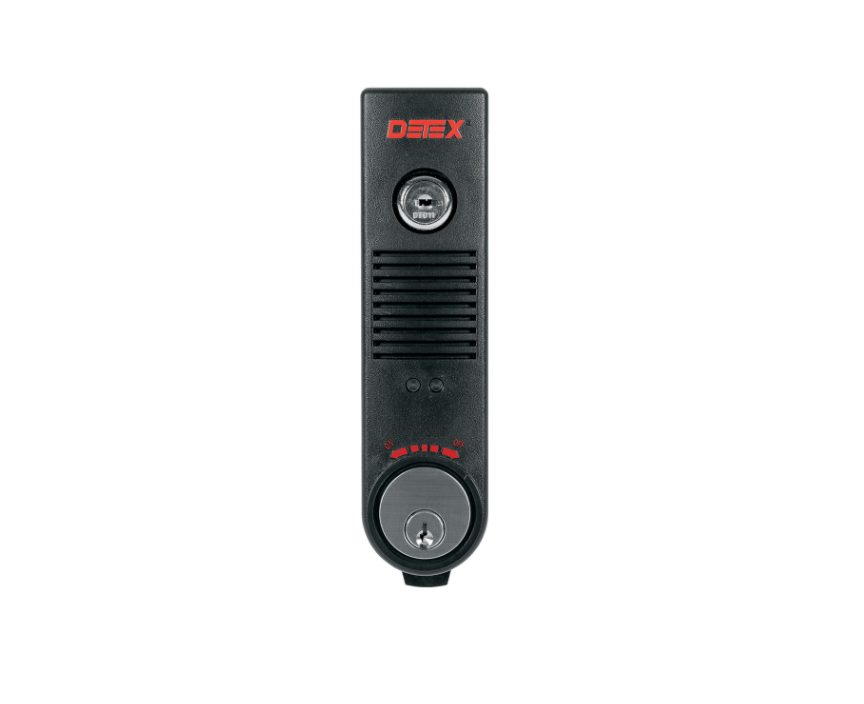

  • BK - Black
    BK - Black
    Not available

Product Overview

The Detex EAX-300 is a battery-powered door prop alarm designed by Detex to monitor commercial doors that should not be left open or propped. It detects when a protected door remains open longer than the selected delay period and activates an audible alarm to help discourage unauthorized door propping. The alarm automatically silences and rearms when the door is closed.

We are your trusted source for Detex commercial door hardware, exit alarms, access control products, and OEM replacement parts.

Features

  • Secure, tamper resistant housing
  • Patented plastic template assures accurate installation by providing foolproof alignment with internal magnetic door contact
  • Tapered cover allows for installation on narrow stile doors
  • Intelligent circuit senses the external magnet location automatically and sets the correct door handing
  • 100 dB piezo alarm
  • 9VDC battery operated with Low Battery Alert
  • LED visual arming indicators

Benefits

  • Low cost, solution to propped open doors
  • Door or wall mount
  • Helps keep energy costs down by ensuring doors are closed
  • Quick, easy installation saves time and money
  • Alarm silences when door is closed, no waiting for key-holder to arrive

Mechanical Option

  • SK1 Kit allows for wall mounting and includes (1) white MS-1039S door contact
  • SK2 Kit allows for wall mounting and includes (2) white MS-1039S door contact
  • SK3 Kit allows for wall mounting and includes (1) brown MS-1059S door contact
  • SK4 Kit allows for wall mounting and includes (2) brown MS-1059S door contacts
  • SK5 Kit allows for wall mounting and includes (1) grey MS-2049S door contact
  • SK6 Kit allows for wall mounting and includes (2) grey MS-2049S door contact
  • KS - Key Stop, factory installed
  • SI - Status Indicator On

Electrical Option

  • Weatherized for use on gates or doors that are subjected to inclement weather

Technical Information

  • Machine and self-drilling screws
  • Optional Cylinder Nut Wrench
$391.00
$312.80
minus minus

Catalogs

Frequently Asked Questions

What is the Detex EAX-300 used for?
The EAX-300 monitors commercial doors and sounds an alarm if a door remains open beyond the selected time delay.
How is the EAX-300 powered?
The alarm operates using a 9VDC battery and includes a low battery alert.
Can the door open delay be adjusted?
Yes. The delay can be field selected from 1 second up to 4 minutes, with a 15-second default setting.
Does the alarm reset automatically?
Yes. When the protected door is closed, the alarm silences and automatically rearms.
Is a mortise cylinder included?
No. A mortise cylinder is required for operation and is sold separately.

The Detex EAX-300 battery powered door prop alarm monitors doors left open and sounds an alarm after a selectable delay for improved commercial door security.
