Detex EAX-2500SK Surface Mount Exit Alarm Kit

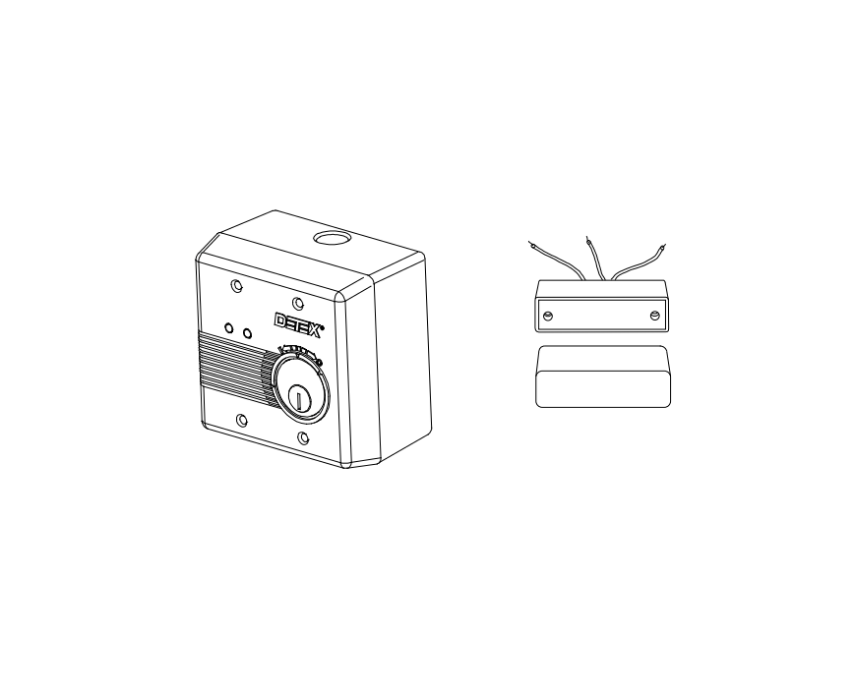

Detex EAX-2500SK surface mount exit alarm kit

Detex

SKU: EAX-2500SK

Detex EAX-2500SK Surface Mount Exit Alarm Kit

In stock

The Detex EAX-2500SK is a complete surface mount AC/DC-powered exit alarm kit designed to help secure emergency exits and restricted doors. The kit includes a warning sign, surface magnetic switch contact, back box, and 24VAC transformer.
*
  • Gray
    Gray
    Not available
  • Black
    Black
    Not available

Product Overview

The Detex EAX-2500SK is a complete surface mount AC/DC-powered exit alarm kit designed by Detex to help monitor and secure emergency exit and restricted doors. This kit includes the EAX-2500 surface mount exit alarm, an EA-561 warning sign, a surface magnetic switch contact, a back box, and a 24VAC transformer for installation. The alarm produces an approximately 100 dB audible alarm during unauthorized exit attempts and is designed for installation using a standard 4" × 4" double switch/outlet box.

We are your trusted source for commercial door hardware, exit alarms, and OEM security products.

Features

  • Complete surface mount exit alarm kit
  • AC/DC hardwired powered operation
  • Approximately 100 dB alarm output
  • Surface mount installation using a standard 4" × 4" outlet box
  • Silent arming feature is field selectable
  • Optional 9VDC backup battery support
  • Tamper-resistant housing and cover
  • Patented cam assembly automatically adjusts for different size cylinders without spacers
  • Uses a mortise cylinder with standard Yale cam (sold separately)

Benefits

  • Provides a complete installation package for surface mount applications.
  • Helps discourage unauthorized exits with a loud audible alarm.
  • Simplifies installation by including the required transformer and magnetic switch.
  • Supports field-selectable operating options for installation flexibility.
  • Fits standard electrical outlet boxes for easier retrofits.
  • Tamper-resistant housing helps protect internal electronics.

Compatibility

  • Detex EAX-2500 Series

Includes

  • EA-561 Warning Sign
  • Black Box
  • Surface magnetic switch contact
  • 24VAC Transformer
$914.00
$731.20
minus minus

Catalogs

Frequently Asked Questions

What is the Detex EAX-2500SK?
It is a complete surface mount AC/DC-powered exit alarm kit for securing emergency exits and restricted doors.
Does the EAX-2500SK include a mortise cylinder?
No. A compatible mortise cylinder is required and sold separately.
What type of mounting does the EAX-2500SK use?
It is designed for surface mounting using a standard 4" × 4" double switch/outlet box.
Does the EAX-2500SK support battery backup?
Yes. It supports an optional 9VDC backup battery when used with AC/DC hardwired power.
