Detex EAX-2500S Surface Mount Exit Alarm

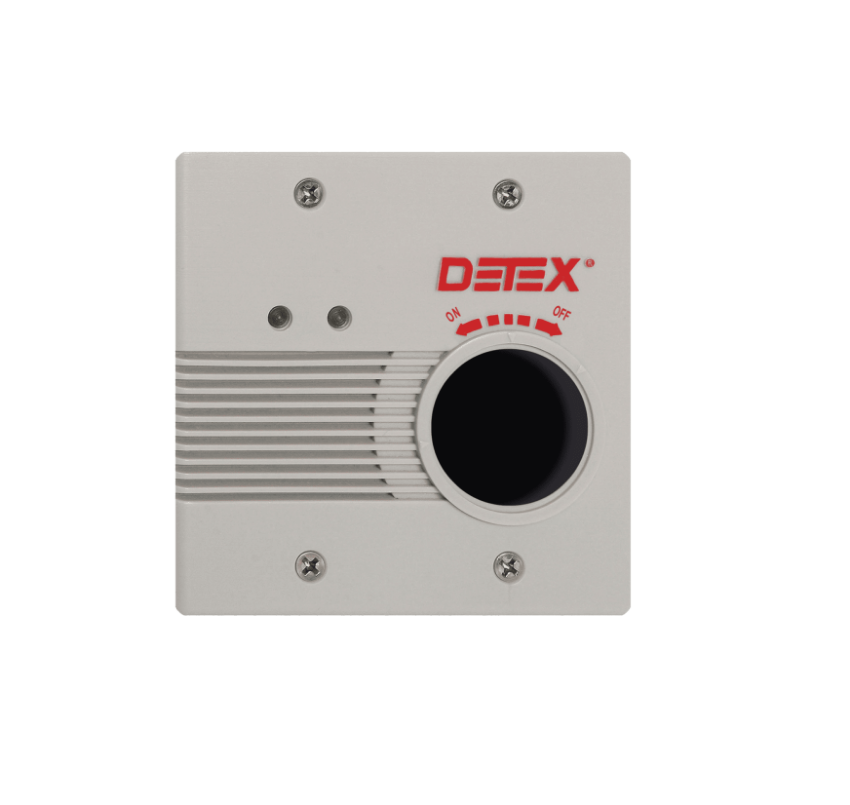

Detex EAX-2500S gray surface mount exit alarm

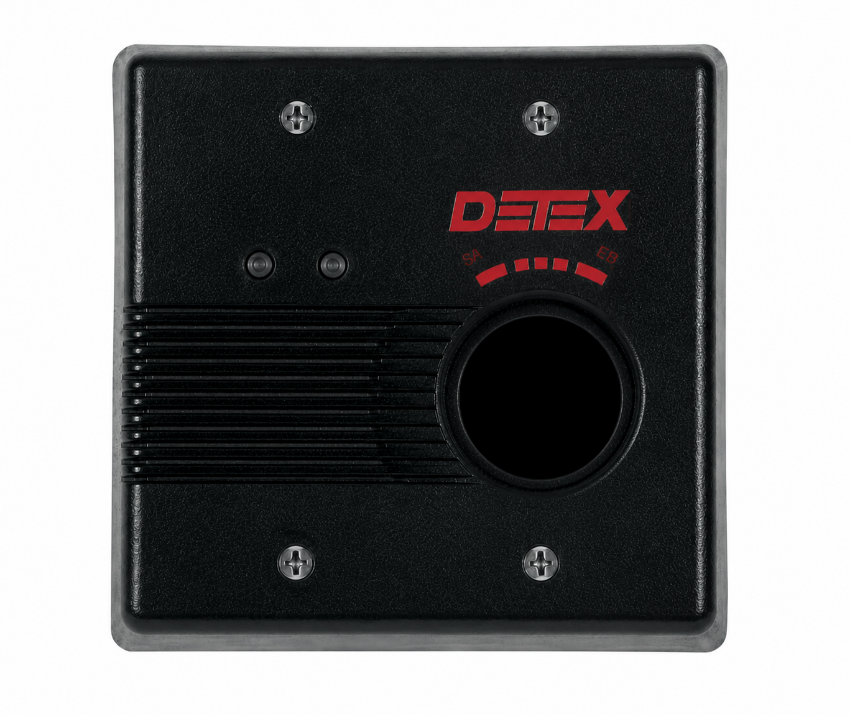

Detex EAX-2500FK flush mount exit alarm kit black
Dynamic Image
Detex EAX-2500S gray surface mount exit alarm
Detex EAX-2500FK flush mount exit alarm kit black

Detex

SKU: EAX-2500S

Detex EAX-2500S Surface Mount Exit Alarm

In stock

The Detex EAX-2500S is a hardwired AC/DC surface mount exit alarm designed to help deter unauthorized exits on secure doors. It provides a 100dB alarm, supports optional 9VDC battery backup, and is designed for commercial emergency exit and restricted door applications.
*
  • Gray
    Gray
    Not available
  • Black
    Black
    Not available

Product Overview

The Detex EAX-2500S is a commercial hardwired surface mount exit alarm manufactured by Detex designed to sound a 100dB alarm when an unauthorized exit occurs on a secured door. It operates from AC/DC power with an optional 9VDC backup battery and is designed to mount to a standard 4" × 4" outlet box for straightforward installation. Its patented cam assembly automatically adjusts for different mortise cylinder sizes without requiring spacers.

We are your trusted source for Detex commercial door hardware, exit alarms, access control products, and OEM replacement parts.

Features

  • Surface mount exit alarm
  • Hardwired AC/DC powered operation
  • Optional 9VDC backup battery
  • Approximately 100dB piezo horn
  • Fits standard 4" × 4" double switch/outlet box
  • Silent arming feature is field selectable
  • Field-selectable low battery alert
  • Field-selectable automatic rearm option
  • Relay output for external accessories
  • Bypass input available
  • Tamper-resistant housing and cover
  • Patented self-adjusting cam assembly
  • Uses a mortise cylinder with standard Yale cam

Benefits

  • Helps deter unauthorized exits with a loud audible alarm.
  • Allows installation using standard electrical outlet boxes.
  • Supports continuous operation with optional battery backup.
  • Offers configurable operating modes to match facility requirements.
  • Provides compatibility with standard mortise cylinders.
  • Protects internal electronics with a tamper-resistant enclosure.

Compatibility

  • Detex EAX-2500 Series

Includes

  • EA-561 Warning Sign
  • Black Box
$642.00
$513.60
minus minus

Catalogs

Frequently Asked Questions

What is the Detex EAX-2500S used for?
It is a hardwired surface mount exit alarm designed to help deter unauthorized exits from secured commercial doors.
Does the EAX-2500S require external power?
Yes. The unit operates from AC/DC hardwired power and supports an optional 9VDC backup battery.
What type of cylinder does the EAX-2500S use?
It uses a mortise cylinder with a standard Yale cam.
Can the EAX-2500S be mounted to a standard electrical box?
Yes. It is designed for installation on a standard 4" × 4" double switch/outlet box.
Is the alarm configurable?
Yes. The EAX-2500S includes field-selectable features such as silent arming, low battery alert, and automatic rearm options.
