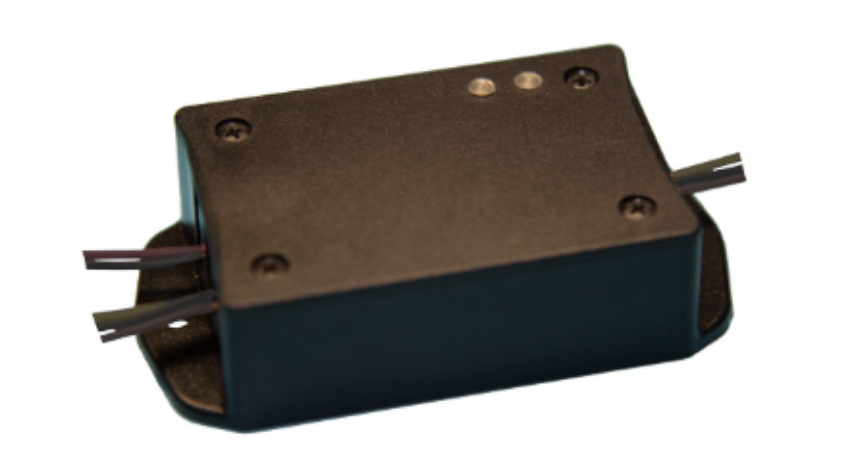

Detex DTX-LMB-DATA Interface Module

Detex DTX-LMB-DATA interface module

Detex

SKU: DTX-LMB-DATA

Detex DTX-LMB-DATA Interface Module

Available (3 - 4 Weeks)

The Detex DTX-LMB-DATA is an interface module that converts Data+ signals from the BEA BodyGuard Presence Sensor for use with Detex AO19 automatic door operators, enabling proper communication between the sensor and controller.

Product Overview

The Detex DTX-LMB-DATA by Detex Corporation is an electronic interface module designed for use with the BEA BodyGuard Presence Sensor and compatible AO19 Series Automatic Door Operators. It interprets the sensor's Data+ output and converts it into the signals required by the AO19 controller for proper automatic door safety operation. The module features self-contained logic circuitry within a compact enclosure, allowing installation inside the AO19 operator housing. Color-coded wiring and straightforward connections help simplify installation.

We are your trusted source for commercial door hardware, automatic operator accessories, access control products, and OEM replacement components.

Features

  • Electronic interface module
  • Converts Data+ signals from the BEA BodyGuard Presence Sensor
  • Designed for use with AO19 automatic door operator controllers
  • Connects directly to the Data+ output of the BEA BodyGuard Presence Sensor
  • Easy-to-read installation instructions
  • Color-coded wiring
  • Compact enclosure fits inside AO19 housing
  • Self-contained logic circuitry
  • Operates on 24 VAC/DC input power (50 mA)

Benefits

  • Enables proper communication between the BEA BodyGuard Presence Sensor and AO19 controller
  • Converts sensor signals into usable control voltages
  • Compact design allows installation inside the operator enclosure
  • Simplifies installation through color-coded wiring
  • Self-contained electronics reduce installation complexity

Compatibility

  • Detex AO19 Series Automatic Door Operators
$786.00
$503.04
minus minus

Catalogs

Frequently Asked Questions

What is the Detex DTX-LMB-DATA?
It is an electronic interface module that converts Data+ signals from a BEA BodyGuard Presence Sensor for use with Detex AO19 automatic door operator controllers.
Which automatic door operators is it designed for?
It is designed for use with Detex AO19 Series Automatic Door Operators.
Which sensor is compatible with the DTX-LMB-DATA?
The module is intended for use with the BEA BodyGuard Presence Sensor.
What power does the interface module require?
The DTX-LMB-DATA operates on 24 VAC/DC and draws approximately 50 mA.
Is the DTX-LMB-DATA UL listed?
Yes. The DTX-LMB-DATA is UL 294 Listed.
