Product Overview

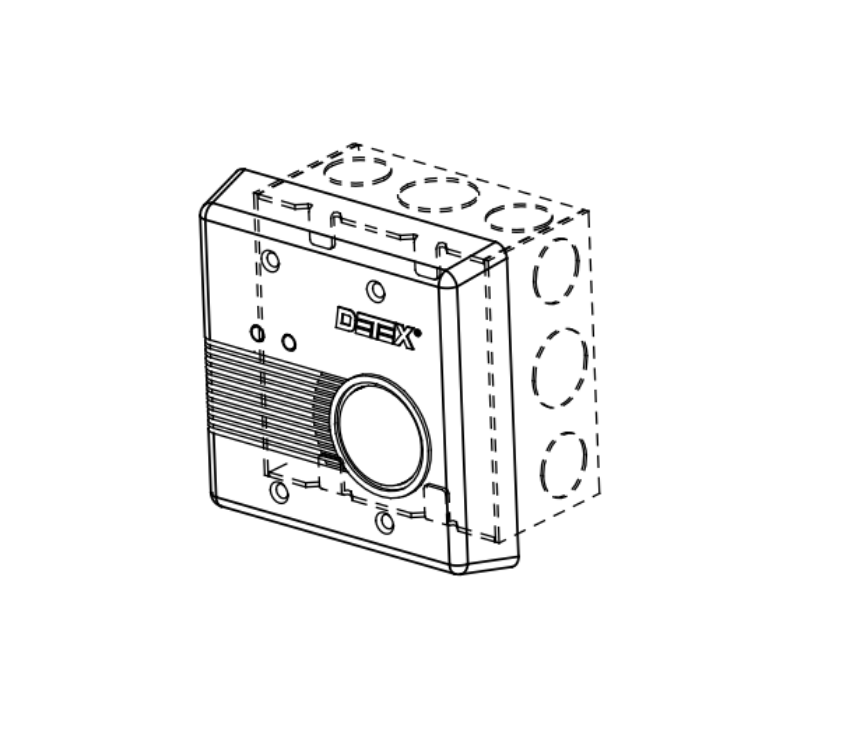

The Detex CS2940F is a flush-mounted remote alarm manufactured by Detex for commercial security applications requiring audible remote notification of an alarm event. Designed for installation in a double switch/outlet box, it activates a 100dB alarm when triggered by a door switch, remote relay output, or another alarm. The unit operates from an included plug-in transformer while maintaining a 9VDC battery backup for continued operation during power interruptions. A red LED provides visual indication during alarm conditions, and the alarm automatically resets when the primary alarm is silenced.

We offers genuine Detex commercial security hardware and alarm products for professional installations.

Features

• Flush-mounted remote alarm
• Externally powered using included 120VAC plug-in transformer
• 9VDC battery backup
• 100dB audible alarm
• Red LED alarm indicator
• Automatically resets when the primary alarm is silenced
• Monitors an open contact
• Maximum current draw: 50mA
• Remote alarm may be installed up to 1,000 feet from the primary alarm using 18-gauge twisted pair wire
• Gray finish
• No cylinder required (dummy cylinder included)
• Optional SSK4 Tamper Proof Kit available

Benefits

• Provides remote audible notification of security events.
• Maintains operation during power loss with battery backup.
• Automatically resets after the primary alarm is cleared, reducing manual intervention.
• Suitable for remote monitoring locations up to 1,000 feet away.
• Flush-mounted design provides a clean installation in standard electrical boxes.
• Visual LED indication complements the audible alarm for improved awareness.
