Features

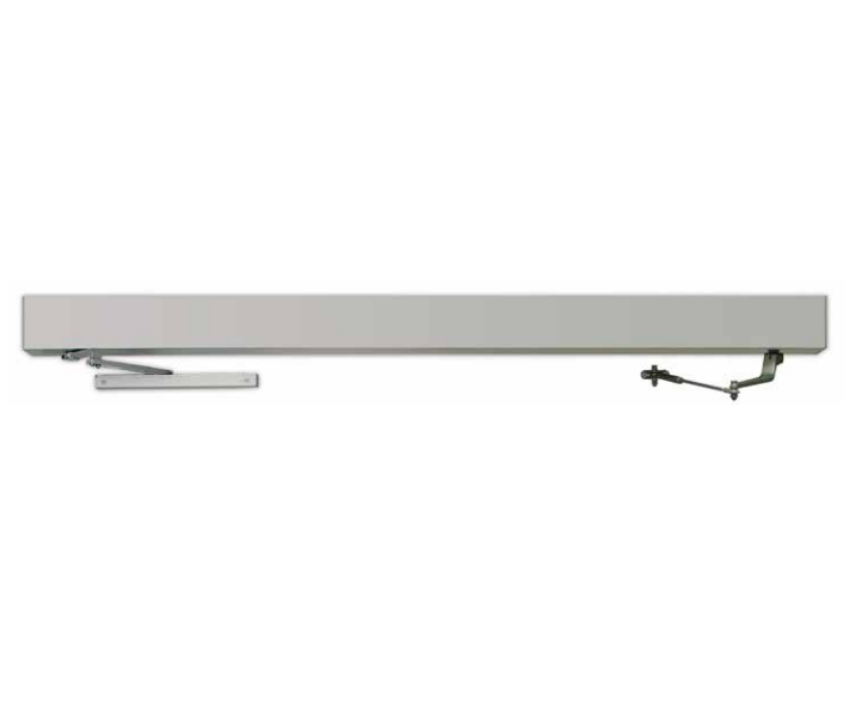

• ADA-compliant low energy automatic door operator
• Designed for dual egress door applications
• Supports push and pull configurations
• Quiet and smooth automatic operation
• Reverse-on-obstruction safety technology
• Adjustable delayed activation
• Push & Go handicap activation feature
• Power-close assistance for secure latching
• Adjustable closing speed
• Heavy-duty commercial-grade construction
• Compatible with access control systems and electric locks
• Low-voltage ON/OFF/HOLD switch
• Easy-access maintenance enclosure
• Plug-in 115VAC power supply

Benefits

Accessibility

• • Provides ADA-compliant access for handicap applications
  • Improves accessibility in commercial buildings
  • Supports touchless and automated entry systems

Security & Commercial

• • Ideal for high-traffic commercial and institutional facilities
  • Integrates with access control and locking systems
  • Reliable automation for secure dual egress entrances

Installation & Maintenance

• • Hanger plate design simplifies installation
  • Easy-access enclosure reduces maintenance downtime
  • Heavy-duty construction minimizes service calls

User Experience

• • Quiet and controlled door operation
  • Enhanced safety with obstruction sensing
  • Smooth automatic opening and closing performance

Technical Specifications

Power Requirements

• • 115VAC 60Hz 6 amps

Motor Specifications

• • 115VDC rectified motor
  • 1/8 HP motor
  • 60:1 gearbox

Door Compatibility

• • Supports doors up to 300 lbs
  • Push reveal depth up to 11”
  • Pull reveal depth up to 2.5”

Enclosure

• • 7” height x 4.5” depth
  • Aluminum extrusion housing
  • Approximate weight: 100 lbs

Finish Options

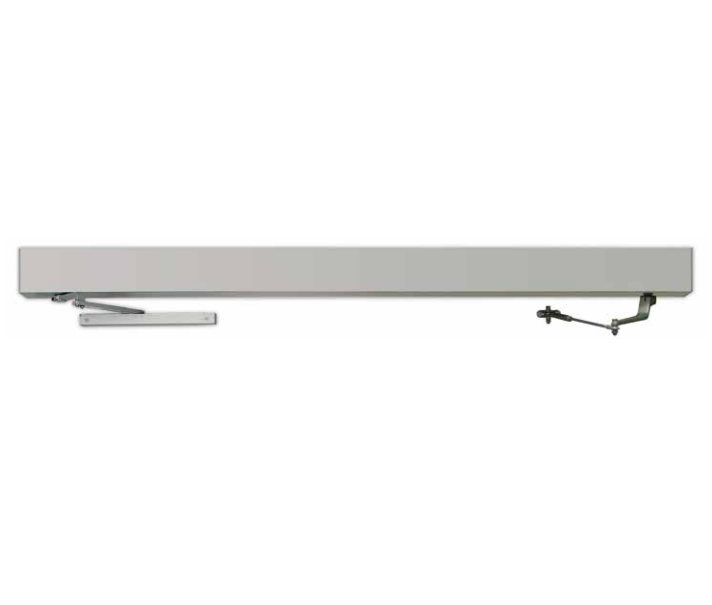

• • Clear Aluminum (AL)

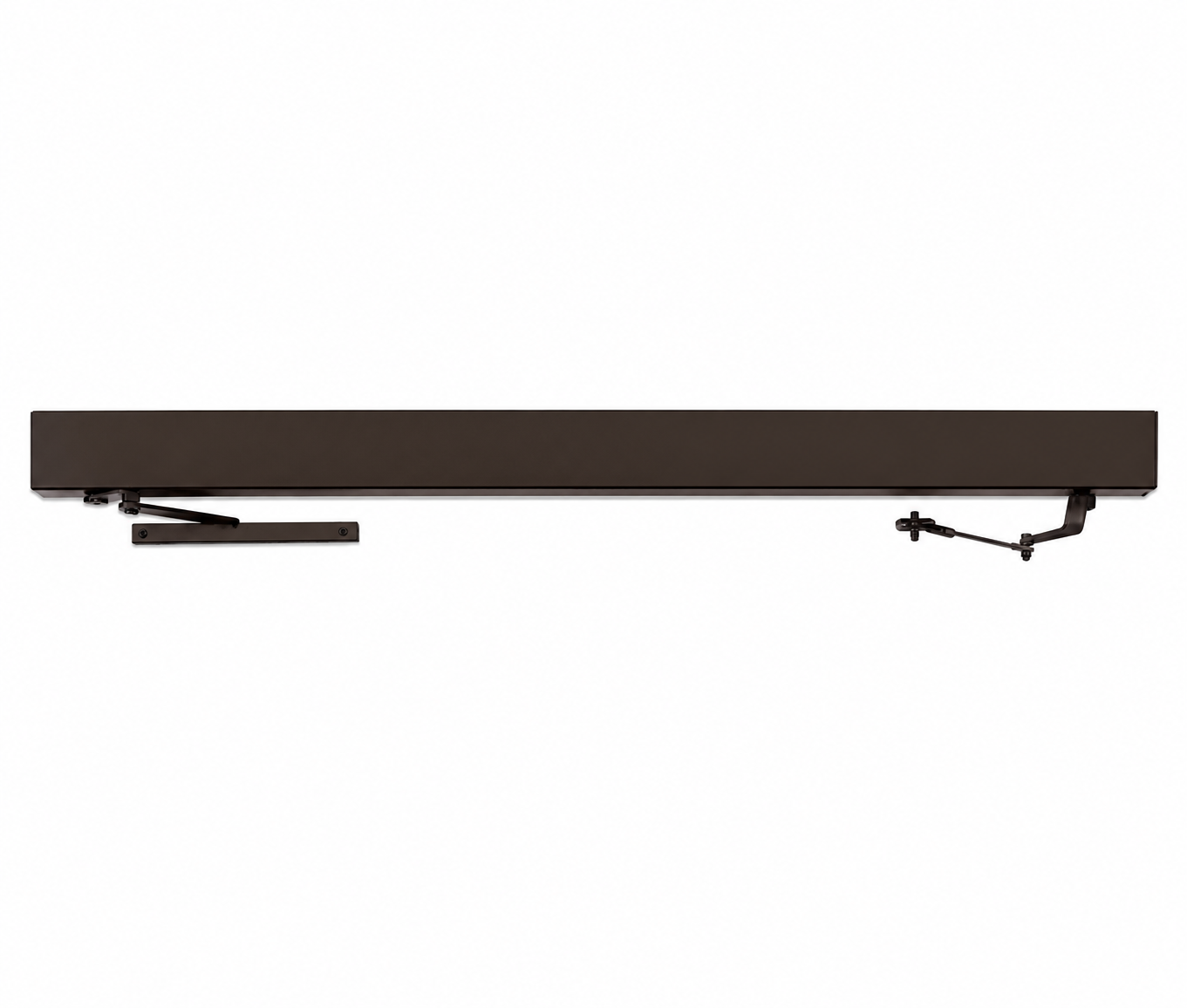

  • Dark Bronze (BZ)

Mechanical Options

Length Option

• • 75.5” Operator – Fits Most 36” Double Doors
  • 92” Operator – Fits Most 44” Double Door Pairs
  • 100” Operator – Fits Most 48” Double Door Pairs

Handing Option

• • Right Hand - Double Egress Doors - RH Push/RH Pull
  • Left Hand - Double Egress Doors - LH Push/LH Pull
