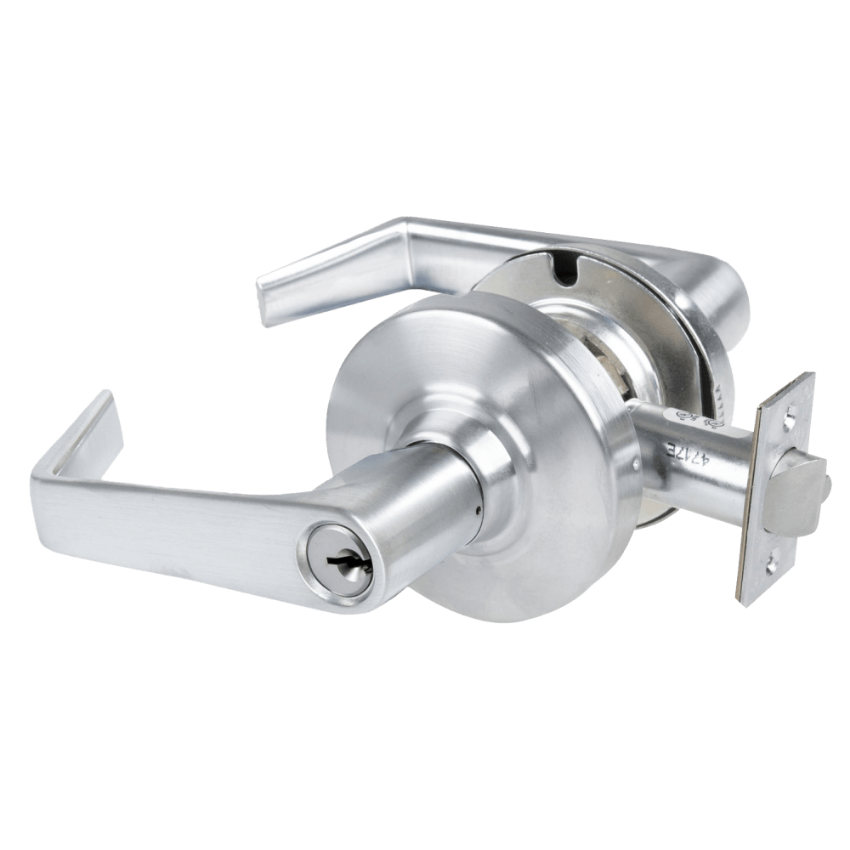

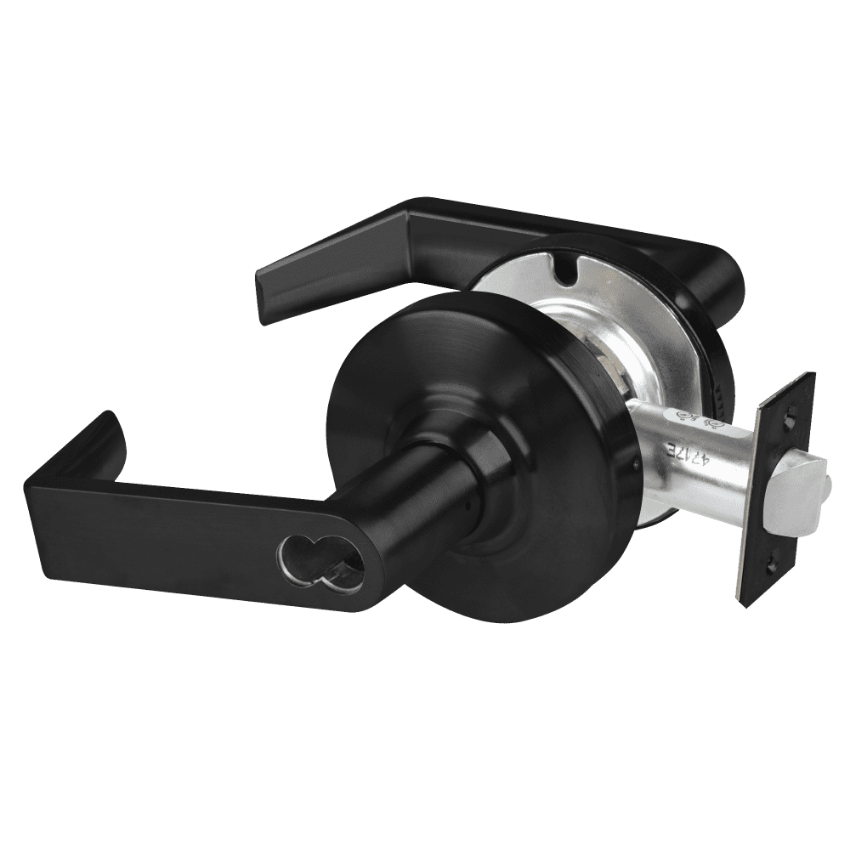

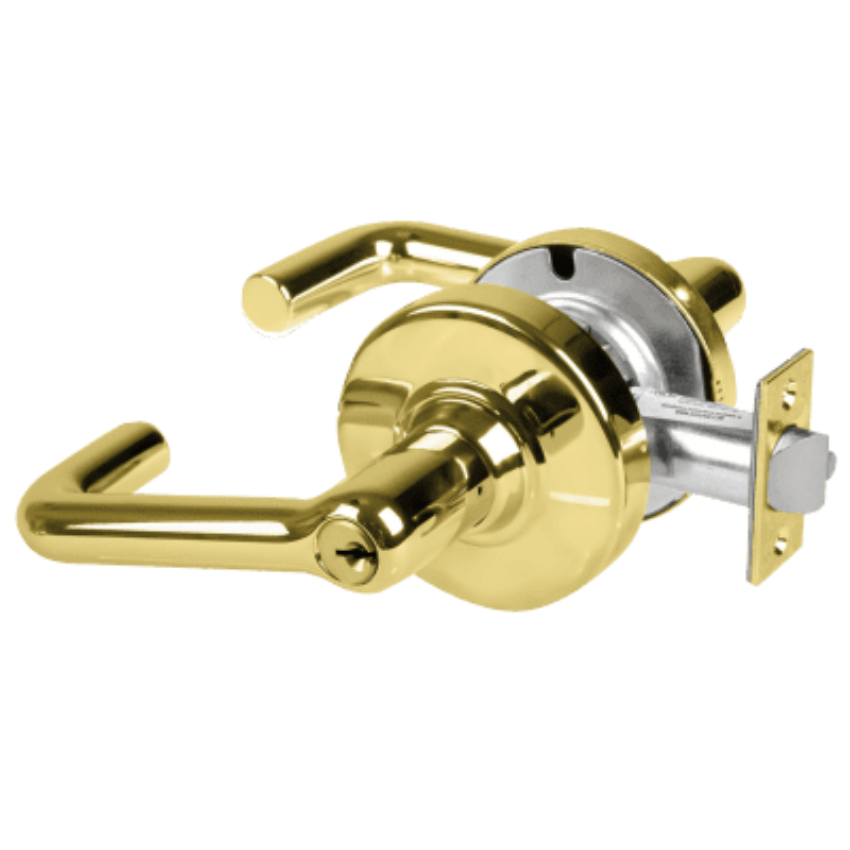

Schlage ALX53 Entrance lock

Picture of ALX53 Entrance lock
Picture of ALX53 Entrance lock
Picture of ALX53 Entrance lock
Dynamic Image
Picture of ALX53 Entrance lock
Picture of ALX53 Entrance lock
Picture of ALX53 Entrance lock

Catalogs

Schlage

SKU: ALX53

Schlage ALX53 Entrance lock

The Schlage ALX53 is a durable, Grade 2 cylindrical entrance lock designed for medium to high-traffic commercial applications. It meets ADA compliance, making it a reliable and versatile solution for offices, retail spaces, and institutional buildings.
*
  • SAT - Saturn

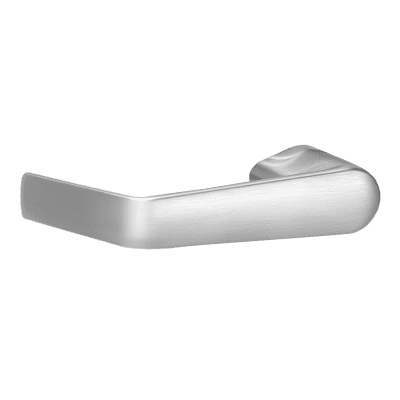

    SAT - Saturn
    Not available
  • SPA - Sparta
    SPA - Sparta
    Not available
  • TLR - Tubular

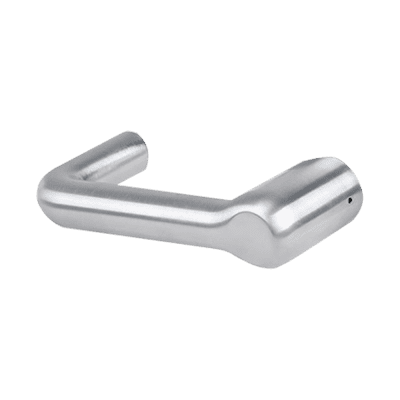

    TLR - Tubular
    Not available

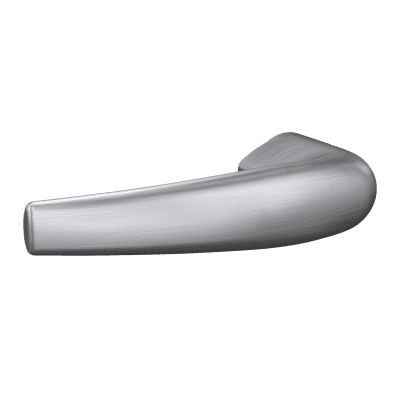

  • ATH - Athens
    ATH - Athens
    Not available
  • OME - Omega

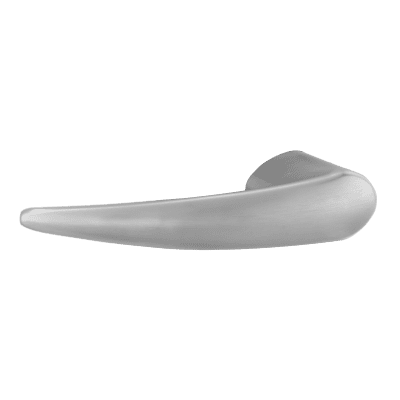

    OME - Omega
    Not available
  • RHO - Rhodes

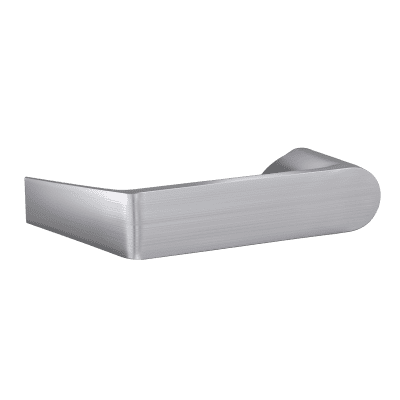

    RHO - Rhodes
    Not available
  • BRK - Boardwalk

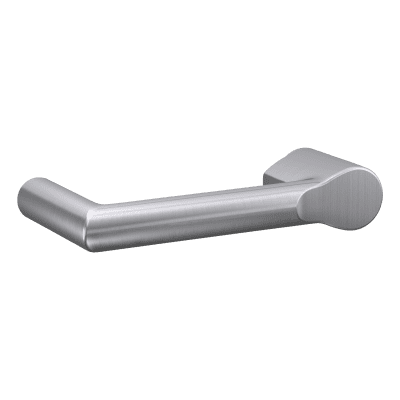

    BRK - Boardwalk
    Not available
  • BRW - Broadway

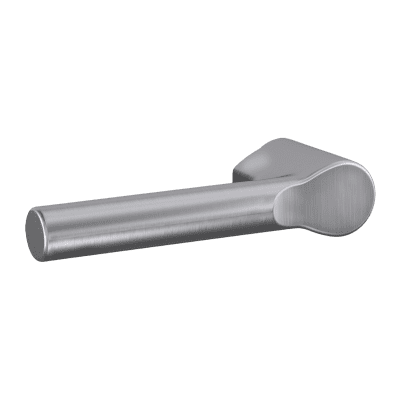

    BRW - Broadway
    Not available
  • LAT - Latitude

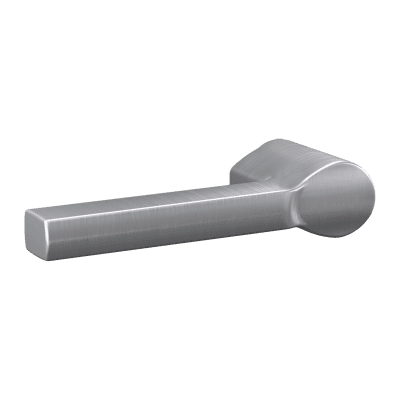

    LAT - Latitude
    Not available
  • LON - Longitude

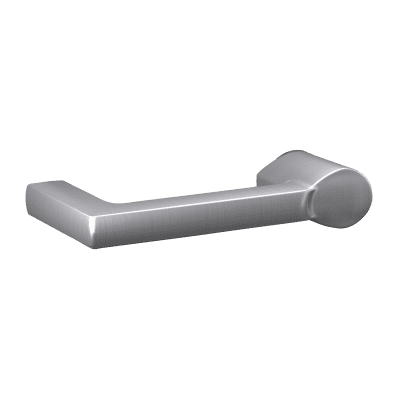

    LON - Longitude
    Not available
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 622 - US19 - Powder-Coated Matte Black
    622 - US19 - Powder-Coated Matte Black
    Not available
  • 626AM - Satin Chrome, Antimicrobial
    626AM - Satin Chrome, Antimicrobial
    Not available
  •  Key cylinder outside; push/turn button inside; deadlatch
  • Inside button locks outside lever by pushing button or pushing and turning buttonPushed button: unlock with key outside or by rotating inside lever
  • Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress


Specifications:

CertificationsANSI/BHMA A156.2-2011 Grade 2, UL/cUL 3-hour fire rating, ADA compliant
UsageMedium to Heavy-Duty Commercial Applications
Door ThicknessStandard: 1 3/8" to 1 3/4" (accommodates up to 1 7/8" with minimal adjustment)
BacksetStandard: 2 3/4" (optional 2 3/8" available)
Latch1/2" throw, deadlocking stainless steel, 1 1/8" x 2 1/4" face standard
StrikeStandard: 4 7/8" x 1 1/4" ASA/ANSI strike with curved lip
KeywayPatented Everest 29™ S123 keyway (standard with conventional cylinder)
HandingNon-handed design for universal application
ChassisModular design (zinc and steel components, zinc dichromate plated for corrosion resistance)
Lever MaterialPressure cast zinc, plated to match finish specification
FinishesAvailable in multiple finishes (e.g., 605 Bright Brass, 626 Satin Chrome, 622 Matte Black)
$380.00
$201.40
