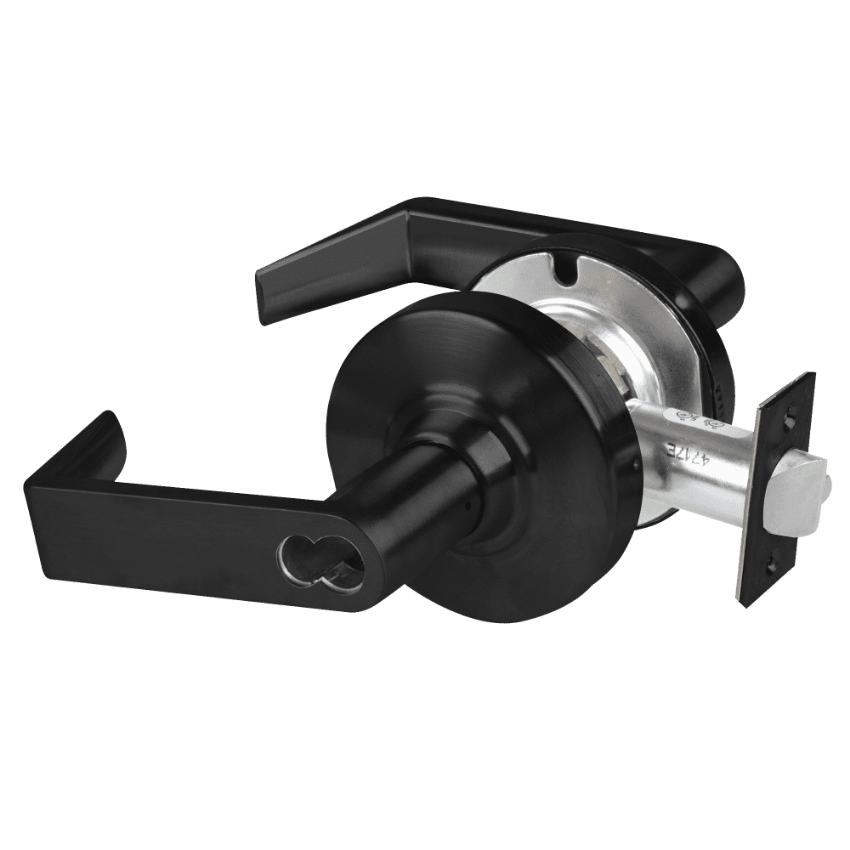

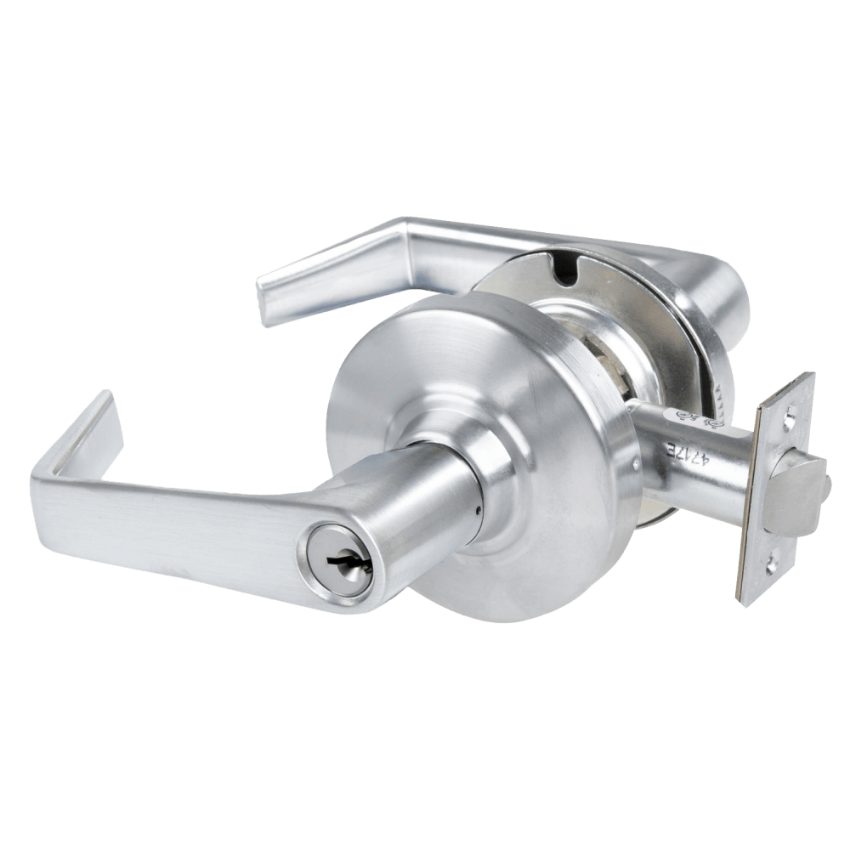

Schlage ALX50 Entrance/office lock

Schlage

SKU: ALX50

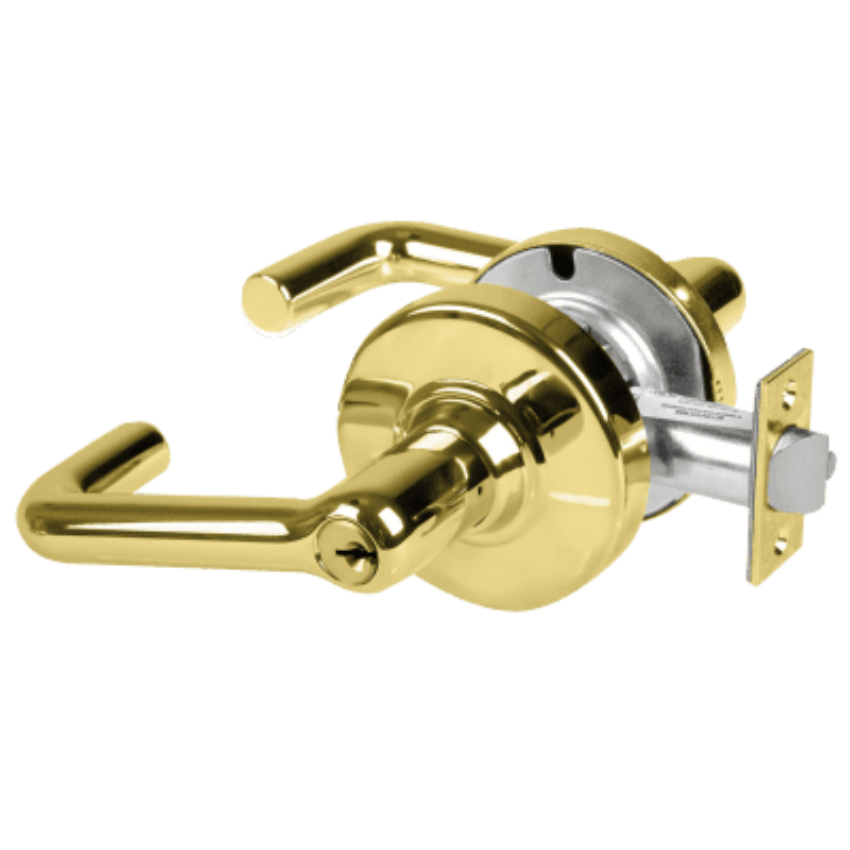

Schlage ALX50 Entrance/office lock

In stock

Available

Discontinued

Out of stock

The Schlage ALX50 is a Grade 2 cylindrical lever lock for medium- to heavy-duty commercial use, designed for high-traffic areas like offices, retail spaces, and hotels

Lever *

•

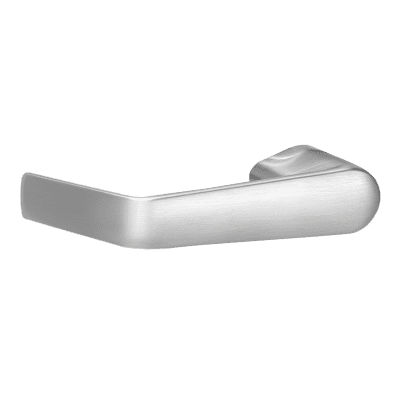

  SAT - Saturn



  Not available
•

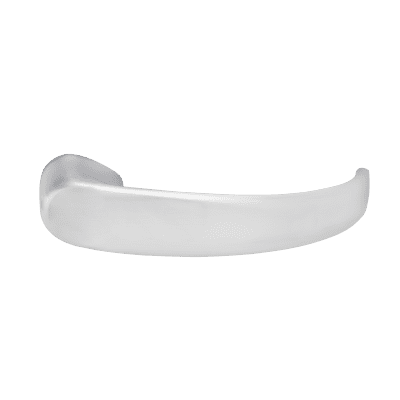

  SPA - Sparta



  Not available
•

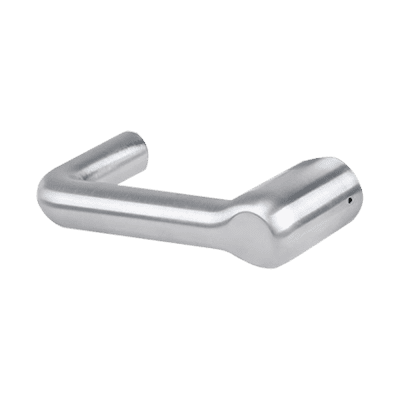

  TLR - Tubular



  Not available
•

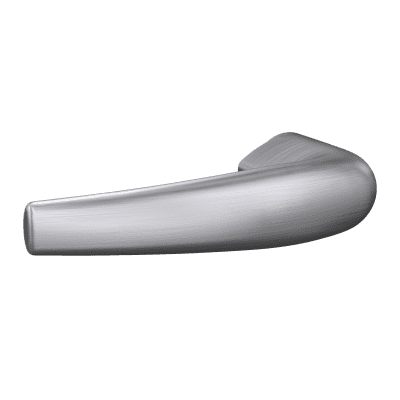

  ATH - Athens



  Not available
•

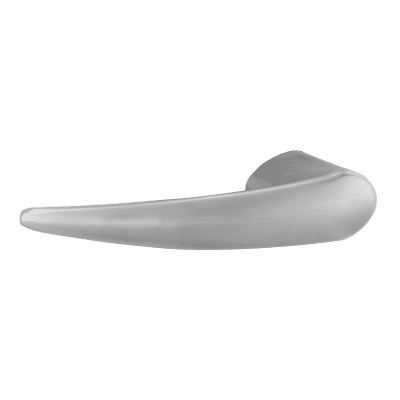

  OME - Omega



  Not available
•

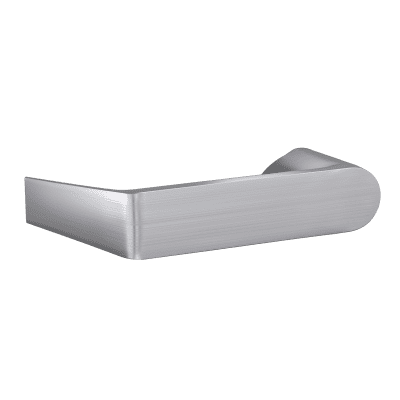

  RHO - Rhodes



  Not available
•

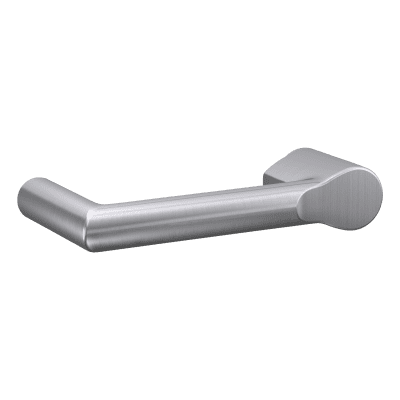

  BRK - Boardwalk



  Not available
•

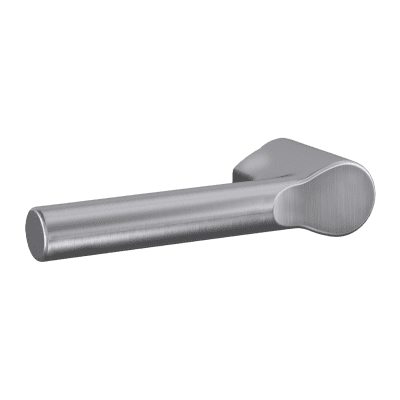

  BRW - Broadway



  Not available
•

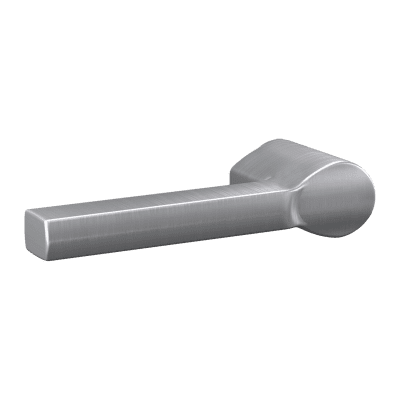

  LAT - Latitude



  Not available
•

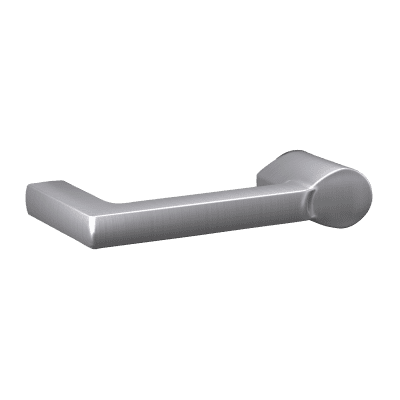

  LON - Longitude



  Not available

Finish *

•
  626 / US26D - Satin Chrome



  Not available
•
  612 / US10 - Satin Bronze



  Not available
•
  625 / US26 - Bright Chrome



  Not available
•
  606 / US4 - Satin Brass



  Not available
•
  619 / US15 - Satin Nickel



  Not available
•
  605 / US3 - Bright Brass



  Not available
•
  613 / US10B - Oil Rubbed Bronze



  Not available
•
  643E - Aged Bronze



  Not available
•
  622 - US19 - Powder-Coated Matte Black



  Not available
•
  626AM - Satin Chrome, Antimicrobial



  Not available

Backset

Please select2-3/4"2-3/8"

Strike

Please select4-7/8" ANSI Strike2-3/4" T strike

Cylinder

Please selectP - Conventional Cylinder (Standard)B - SFIC Less CoreJ - Less FSICL - Less conventional cylinder

Keying

Please selectKD - Keyed differentKA - Keyed alikeMK - Master keyed

Keyway

Please selectC Keyway (Standard)S123 Keyway

•  Key cylinder outside; push button inside; deadlatch
• Inside push button locks outside lever
• Unlock with key outside or by rotating inside lever
• Field selectable Vandlgard® feature
• Inside lever always free for immediate egress

Specifications:

ANSI/BHMA Certification	A156.2-2011 Series 4000, Grade 2
Usage	Medium to Heavy-Duty Commercial/Residential
Function	Entrance/Office (ANSI Function F82)
Handing	Non-handed, field reversible
Fire Rating	UL/cUL Listed up to 3 hours
Door Thickness	1-3/8" to 1-3/4" standard
Backset	2-3/4" standard (optional 2-3/8", 3-3/4", 5")
Latchbolt	1/2" throw, deadlocking stainless steel standard
Strike	4-7/8" x 1-1/4" ANSI curved lip strike standard
Cylinder Options	Conventional 6-pin (Schlage C keyway standard) or Small/Full Size Interchangeable Core (SFIC/FSIC) options available
Keying	Keyed different, master keying, and high-security options available
Chassis	Zinc and steel components, zinc dichromate plated for corrosion resistance
Vandlgard® Feature	Field-selectable; allows outside lever to rotate freely when locked to prevent damage
ADA Compliance	Meets ADA requirements (A117.1 Accessibility Code)
Warranty	10-year limited warranty

$380.00

$201.40

Add to cart 0

Catalogs

• Schlage ALX Series Catalog

The Schlage ALX50 is a Grade 2 cylindrical lever lock for medium- to heavy-duty commercial use, designed for high-traffic areas like offices, retail spaces, and hotels
