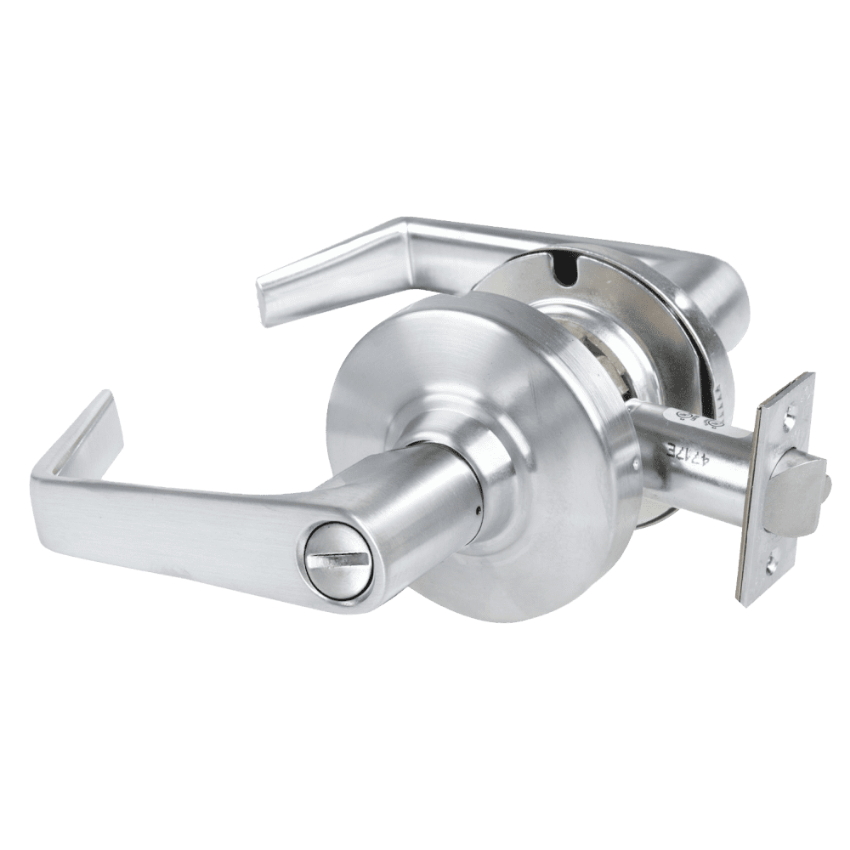

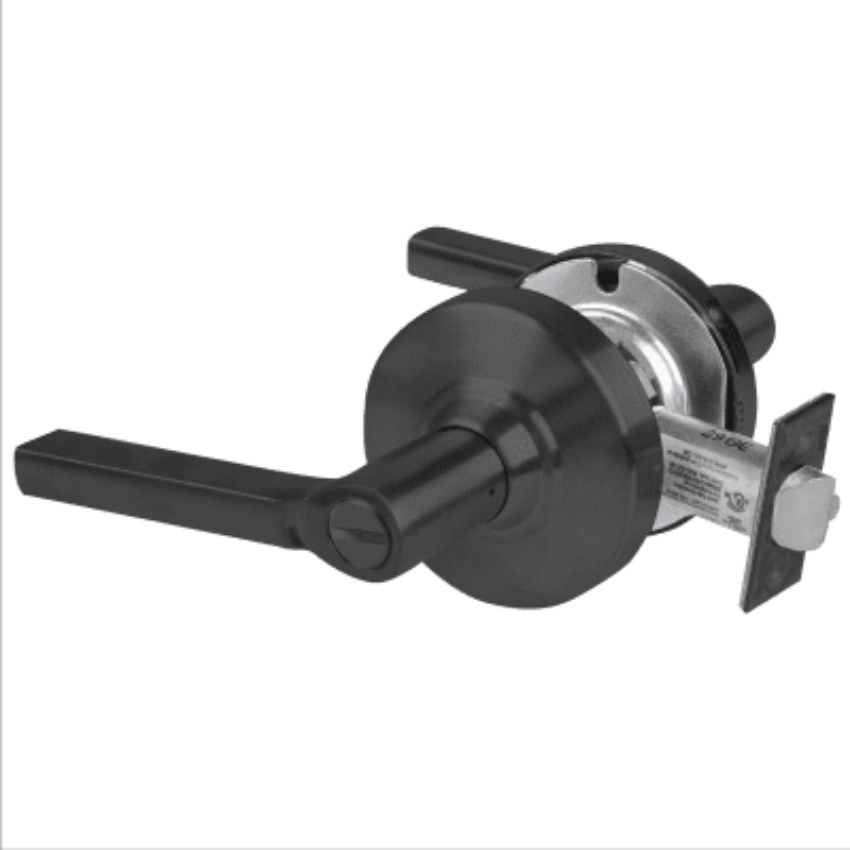

Schlage ALX44 Hospital Privacy Lock

Picture of ALX44 Hospital Privacy Lock
Picture of ALX44 Hospital Privacy Lock
Picture of ALX44 Hospital Privacy Lock
Dynamic Image
Picture of ALX44 Hospital Privacy Lock
Picture of ALX44 Hospital Privacy Lock
Picture of ALX44 Hospital Privacy Lock

Catalogs

Schlage

SKU: ALX44

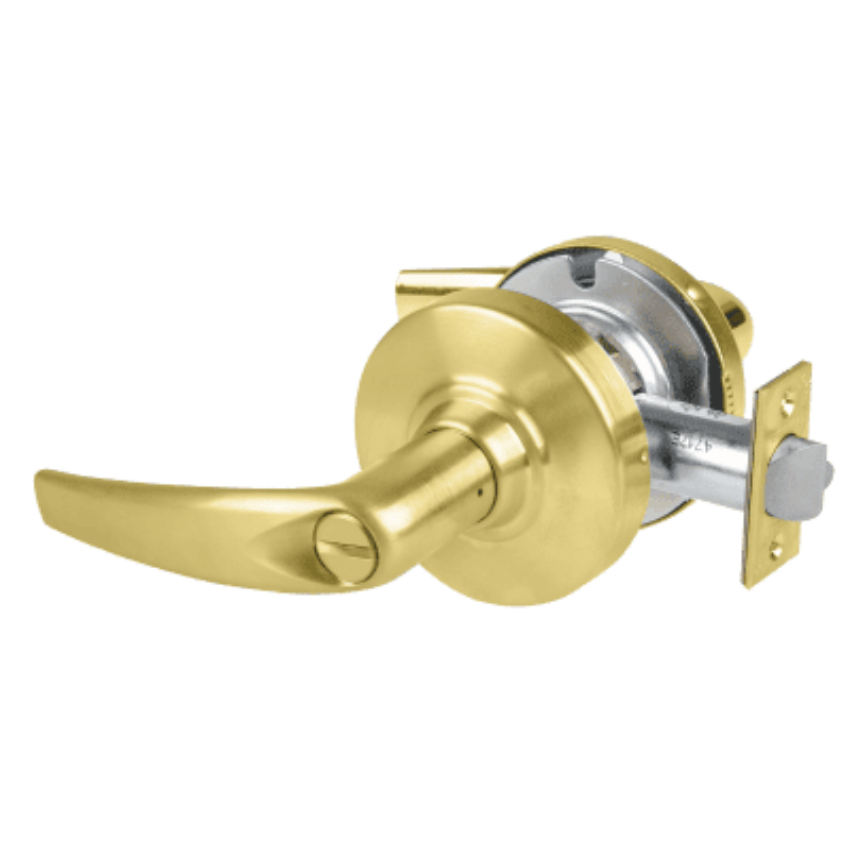

Schlage ALX44 Hospital Privacy Lock

Durable Grade 2 lock with an ADA-compliant design that meets accessibility standards, making it ideal for healthcare facilities, patient rooms, and restroom doors in high-traffic environments.
*

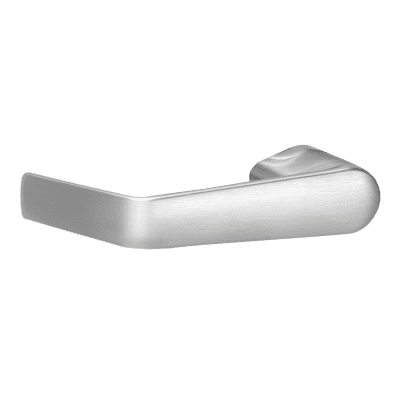

  • SAT - Saturn
    SAT - Saturn
    Not available

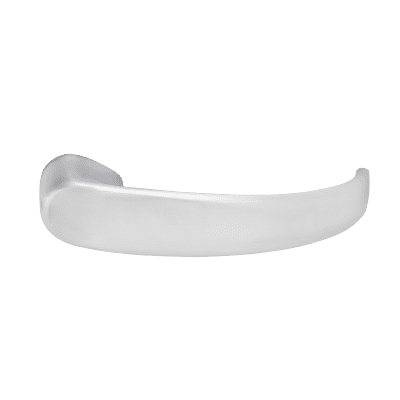

  • SPA - Sparta
    SPA - Sparta
    Not available

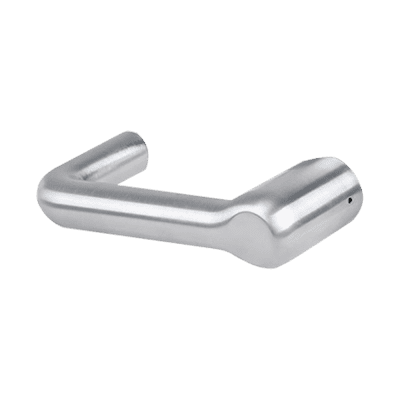

  • TLR - Tubular
    TLR - Tubular
    Not available

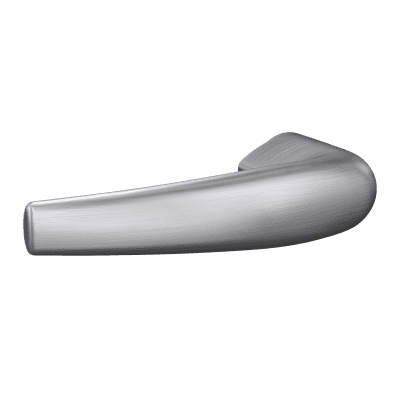

  • ATH - Athens
    ATH - Athens
    Not available
  • OME - Omega
    OME - Omega
    Not available

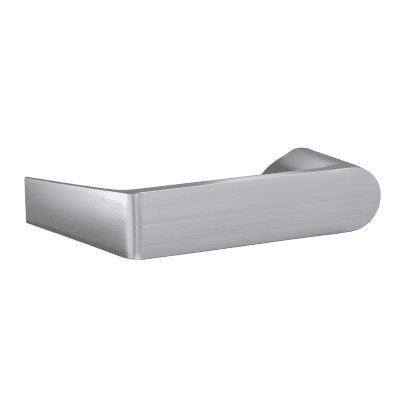

  • RHO - Rhodes
    RHO - Rhodes
    Not available

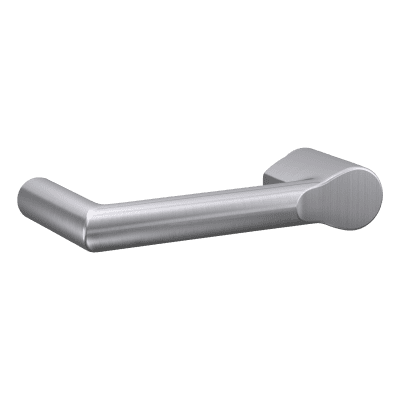

  • BRK - Boardwalk
    BRK - Boardwalk
    Not available

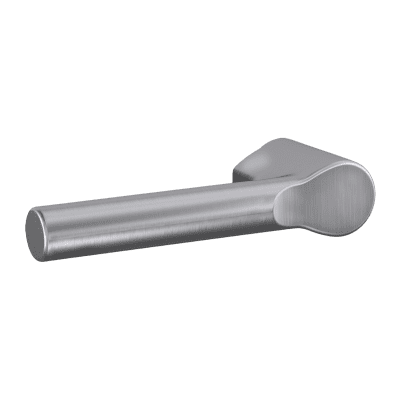

  • BRW - Broadway
    BRW - Broadway
    Not available

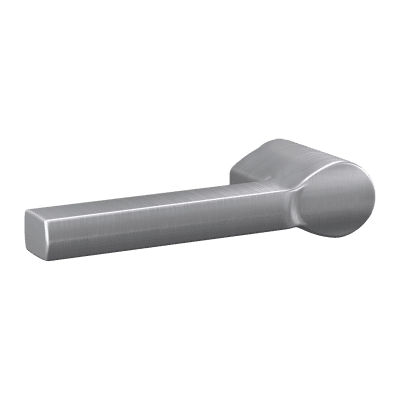

  • LAT - Latitude
    LAT - Latitude
    Not available

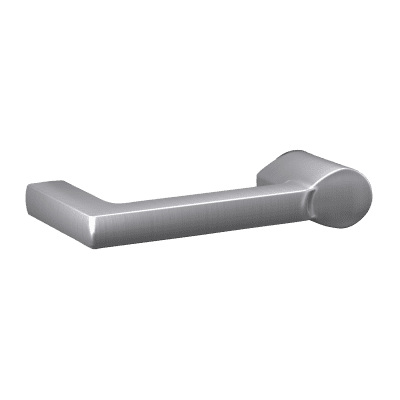

  • LON - Longitude
    LON - Longitude
    Not available
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 622 - US19 - Powder-Coated Matte Black
    622 - US19 - Powder-Coated Matte Black
    Not available
  • 626AM - Satin Chrome, Antimicrobial
    626AM - Satin Chrome, Antimicrobial
    Not available

Hospital privacy lock
• No key; emergency turnbutton outside; push button inside; spring latch
• Inside push button locks outside lever
• Turn inside lever or close door to release button and prevent lock-out; outside turn-button provides emergency access
• Field selectable Vandlgard® feature
• Inside lever is always free for immediate egress

Specifications:

ANSI/BHMA GradeCertified A156.2, Series 4000, Grade 2
Lock FunctionHospital Privacy (ANSI F76)
HandingNon-handed (reversible)
Door Thickness1-3/8" to 1-3/4" standard
Backset2-3/4" standard (optional sizes available)
Latchbolt1/2" throw, stainless steel springlatch
Faceplate1-1/8" x 2-1/4" square corner standard
StrikeANSI curved lip, 1-1/4" x 4-7/8" standard
Chassis MaterialZinc and steel with zinc dichromate plating
Lever MaterialPressure cast zinc
Rose Diameter3-7/16" standard
Fire RatingUL/cUL listed for 3-hour fire doors
AccessibilityADA compliant
Special FeaturesField-selectable Vandlgard® feature
Warranty10-year limited warranty



$305.00
$161.65
