SKU: ALX10

ALX10 Passage Lock

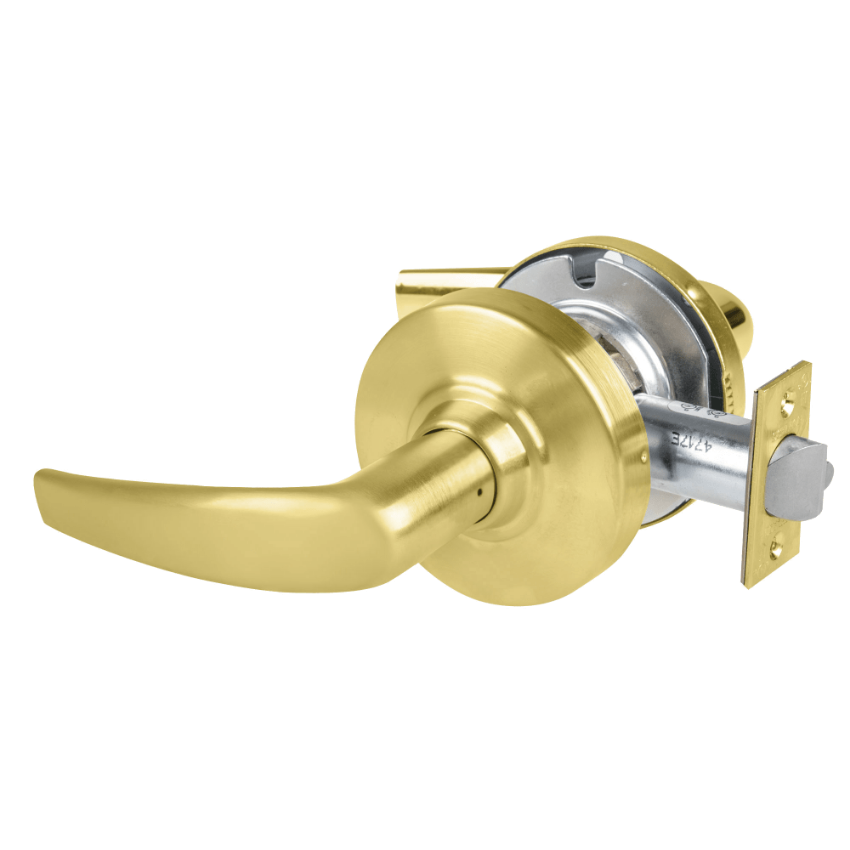

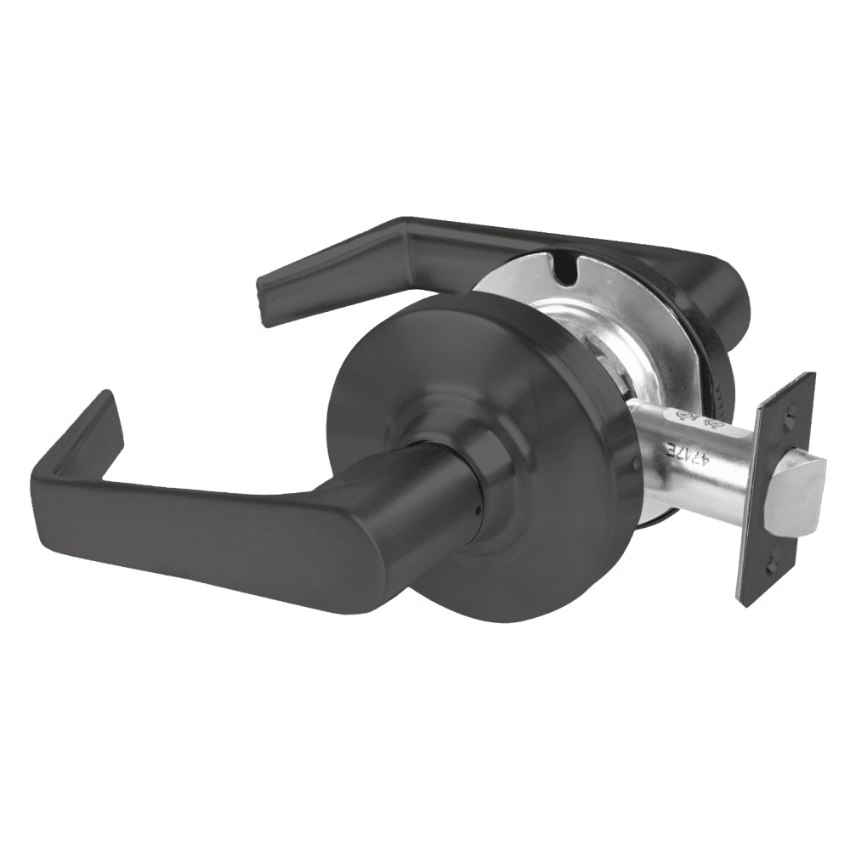

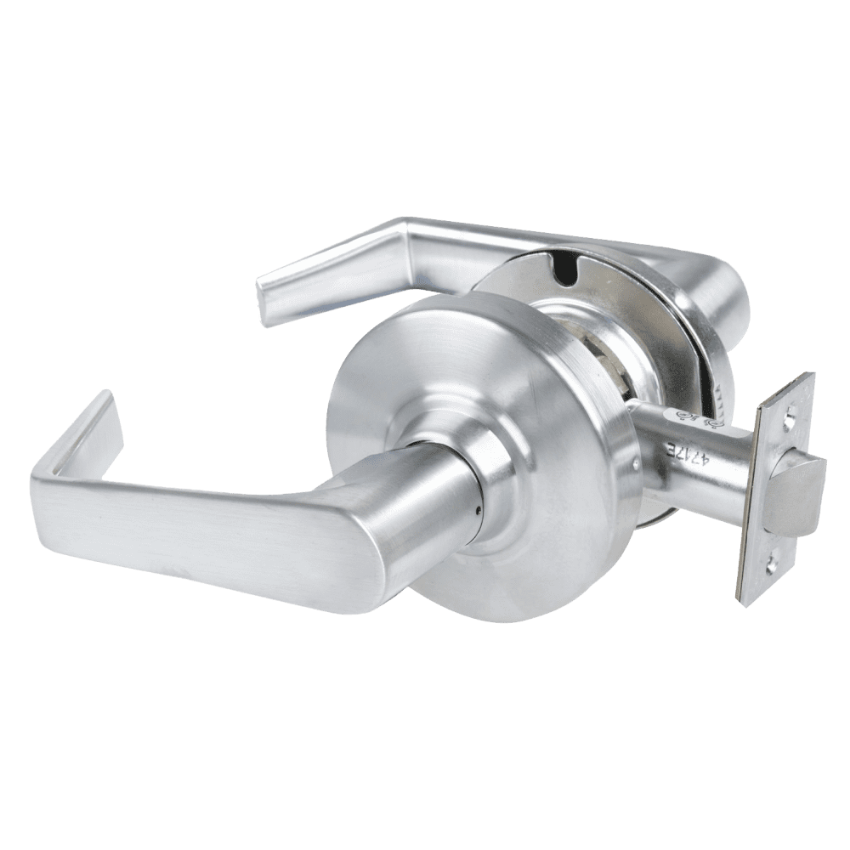

Picture of ALX10 Passage Lock

Catalogs

SKU: ALX10

Schlage ALX10 Passage Lock

Buy the Schlage ALX10 Passage Cylindrical Lock online. This Grade 2 commercial door hardware features a non-keyed passage function (always unlocked), deep-drawn spindle for durability, and easy installation. The Schlage ALX Series lock is perfect for interior office doors, hallways, and more. Available in multiple finishes to match your decor.
*

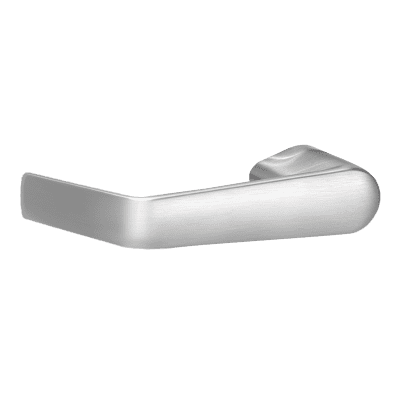

  • SAT - Saturn
    SAT - Saturn
    Not available

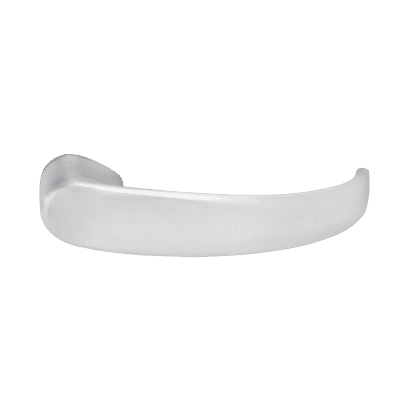

  • SPA - Sparta
    SPA - Sparta
    Not available

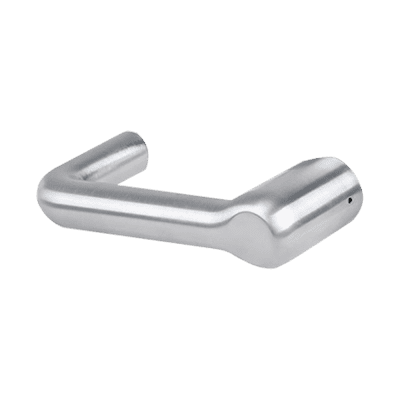

  • TLR - Tubular
    TLR - Tubular
    Not available
  • ATH - Athens
    ATH - Athens
    Not available

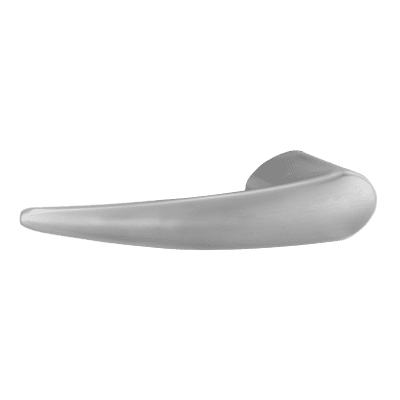

  • OME - Omega
    OME - Omega
    Not available

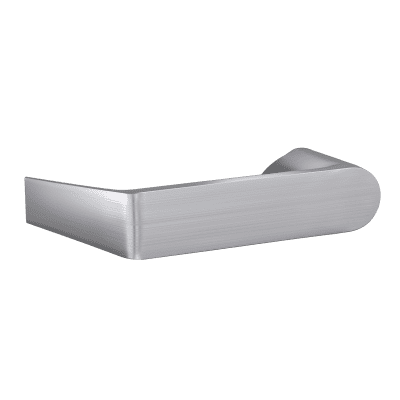

  • RHO - Rhodes
    RHO - Rhodes
    Not available

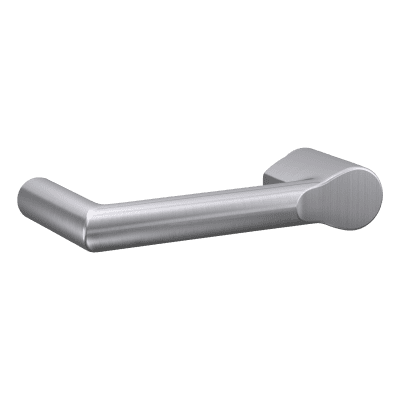

  • BRK - Boardwalk
    BRK - Boardwalk
    Not available

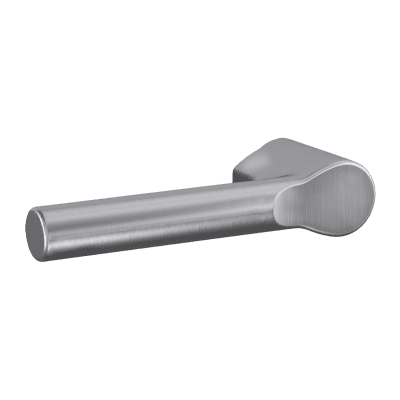

  • BRW - Broadway
    BRW - Broadway
    Not available

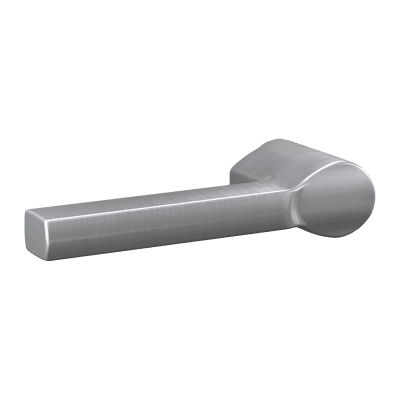

  • LAT - Latitude
    LAT - Latitude
    Not available

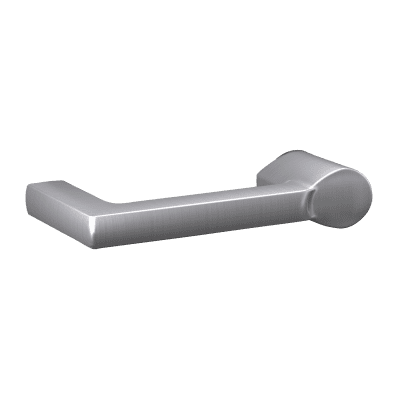

  • LON - Longitude
    LON - Longitude
    Not available
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 622 - US19 - Powder-Coated Matte Black
    622 - US19 - Powder-Coated Matte Black
    Not available
  • 626AM - Satin Chrome, Antimicrobial
    626AM - Satin Chrome, Antimicrobial
    Not available
Product TypeCylindrical Lever Lock, Passage Function
ANSI/BHMA GradeGrade 2 (Certified A156.2-2011 Series 4000)
FunctionPassage Latch (F75) - Both levers always unlocked, no key
UsageCommercial, Medium to Heavy Duty, Interior/Exterior Doors
Door Thickness1-3/8" to 1-3/4" standard (adjustable)
HandingNon-Handed (Field Reversible)
Latch Backset2-3/4" standard; optional 2-3/8", 3-3/4", 5"
Latchbolt1/2" throw, stainless steel
StrikeANSI Curved Lip, 1-1/4" x 4-7/8" standard
Fire RatingUL/cUL Listed for up to 3-hour fire doors (A Label)
ADA ComplianceYes, meets A117.1 Accessibility Code
Chassis MaterialZinc and steel components with zinc dichromate plating for corrosion resistance
Lever DesignsAvailable in multiple designs (e.g., Longitude, Athens, Sparta, Broadway)
FinishesMultiple options available (e.g., Satin Chrome 626, Matte Black 622, Bright Brass 605)
Warranty10-Year Limited Manufacturer's Warranty




$269.00
$142.57
