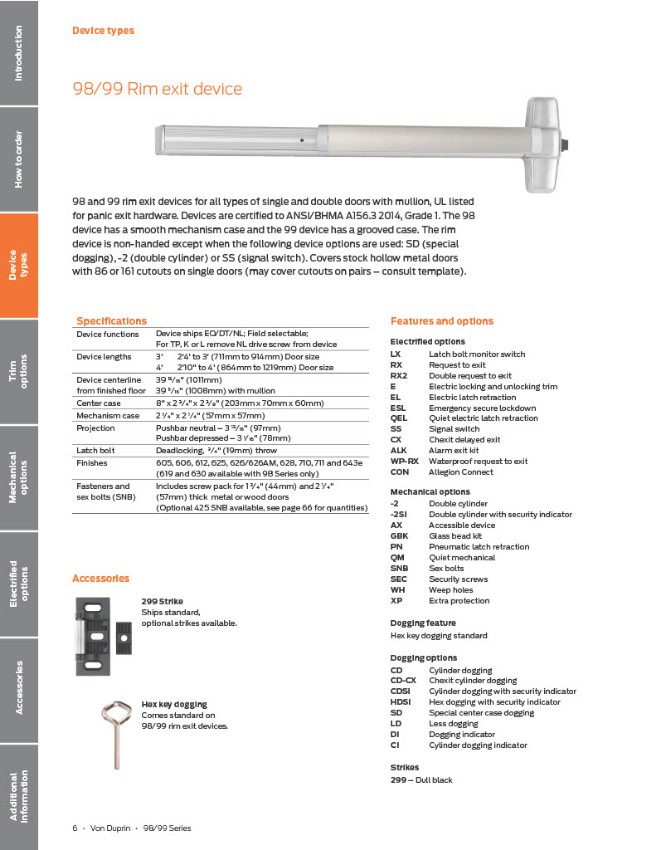

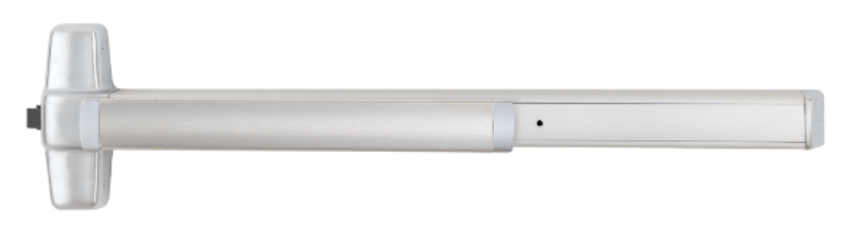

The 99 series offers heavy-duty durability for high-demand environments such as schools and hospitals, meeting ANSI/BHMA A156.3 Grade 1 security standards. Its versatile, code-compliant design includes ADA accessibility options and integrates easily with various electronic and mechanical accessories. Available in multiple configurations and finishes, it suits various door types and architectural styles.

Device lengths:
• 3' Device, 2'4' to 3' (711mm to 914mm) Door size
• 4' Device, 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor:
• 39 13⁄16" (1011mm)
• 39 11⁄16" (1008mm) with mullion
Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

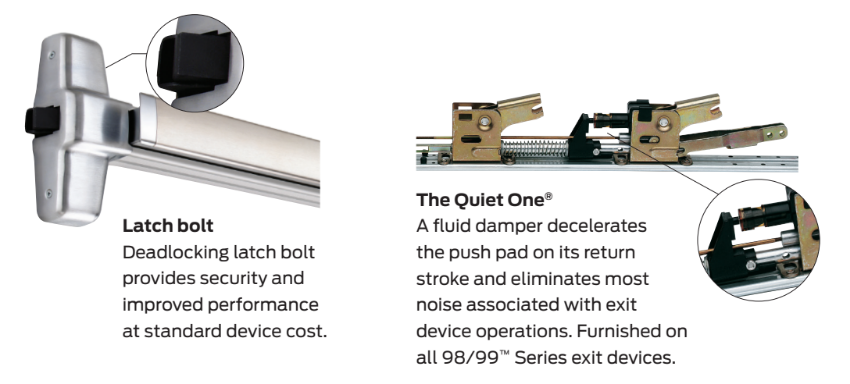

Latch Bolt: 3/4" (19mm) throw latch bolt
Strike: Device is furnished with standard 299 strike in dull black finish
Dogging: Hex key dogging Comes standard on 98/99 exit devices
Projection:
• Pushbar neutral  - 3 13/16" (97mm)
• Pushbar depressed - 3 1/16" (78mm)
Latch bolt Deadlocking: 3⁄4" (19mm) throw
Handing: Non handed
