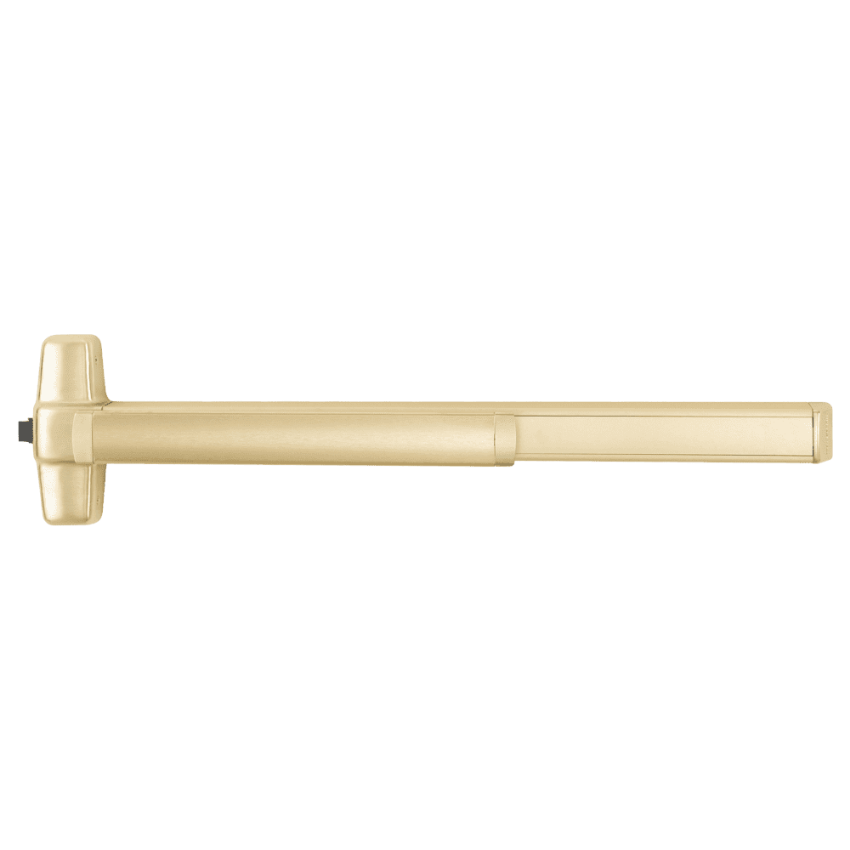

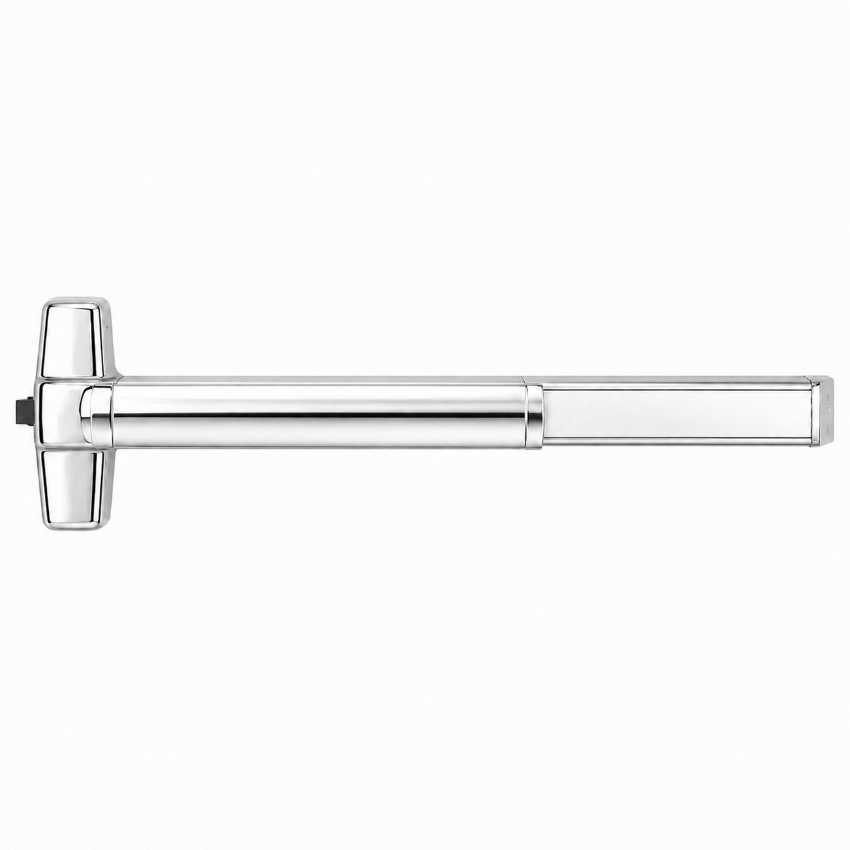

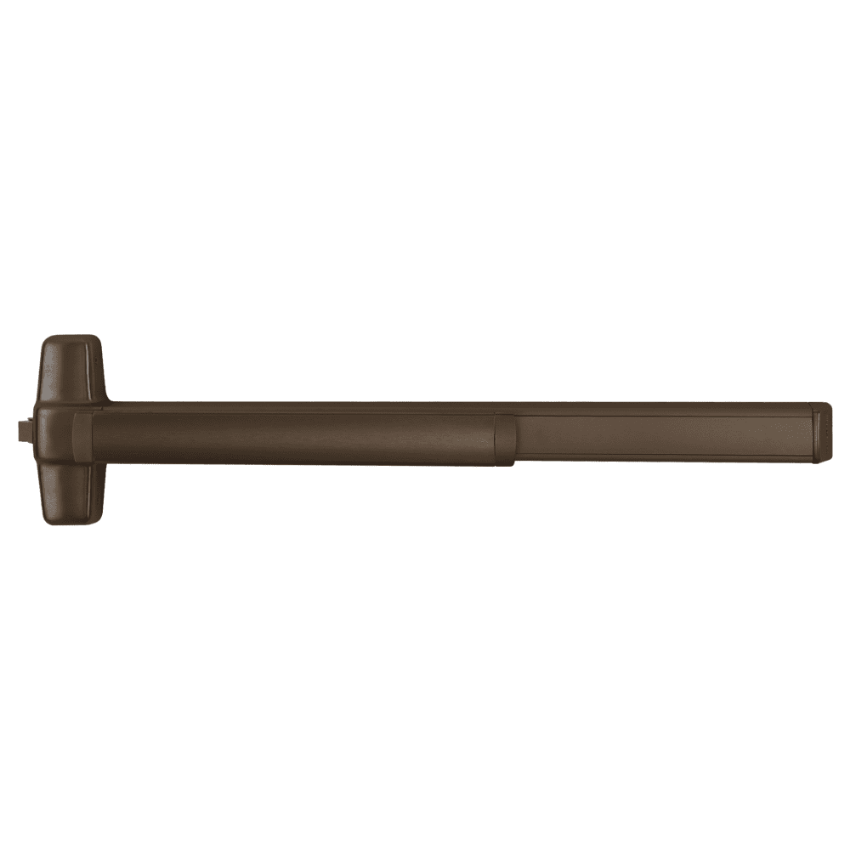

Product Overview:

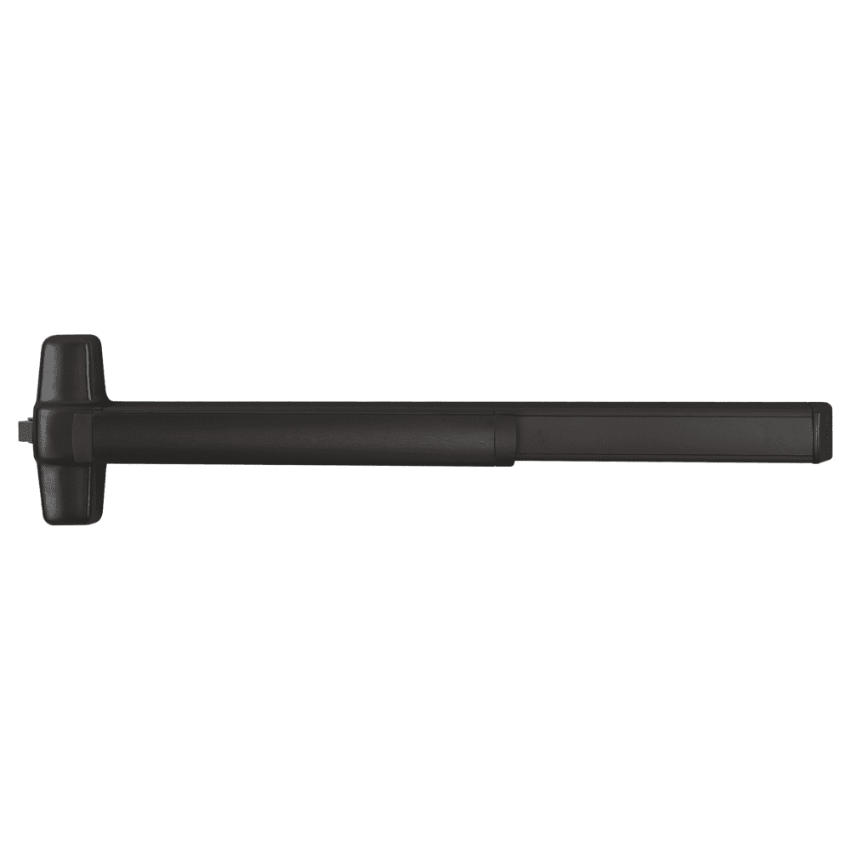

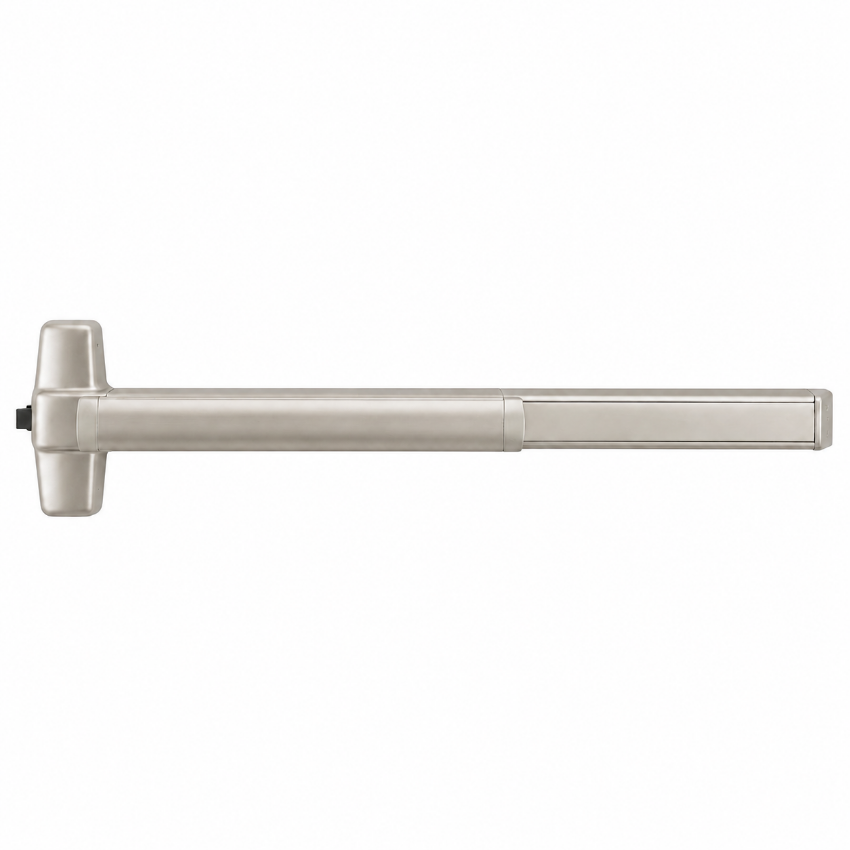

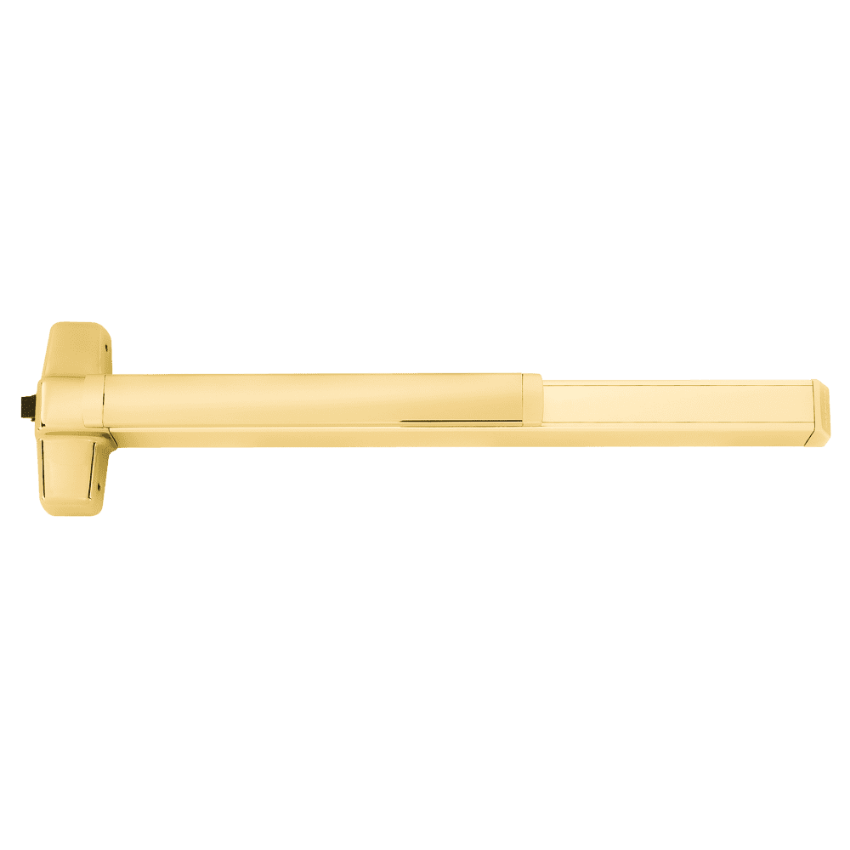

• 98-F and 99-F Rim fire exit devices are certified to ANSI/BHMA A156.3 Grade 1 and UL listed for fire exit hardware.
• The rim device is non-handed except when the following device options are used: -2 (double cylinder), -2SI (Double cylinder with security indicator) or SS (signal switch).

Specifications:

Device Functions:

• • Device ships EO/DT/NL; Field selectable;
  • For TP, K or L remove NL drive screw from device

Device Length

• • 36" - 2'4" to 3' (711mm to 914mm) Door size
  • 48" - 2'10" to 4' (864mm to 1219mm) Door size

Device Centerline from finished floor

• • 39 13/16" (1011mm)
  • 39 11/16" (1008mm) with mullion

Center case

• • 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case

• • 2 1/4" x 2 1/4" (57mm x 57mm)

Projection

• • Pushbar neutral – 3 13/16" (97mm)
    Pushbar depressed – 3 1/16" (78mm)

Latch bolt

• • Deadlocking, 3/4" (19mm) throw

Finishes

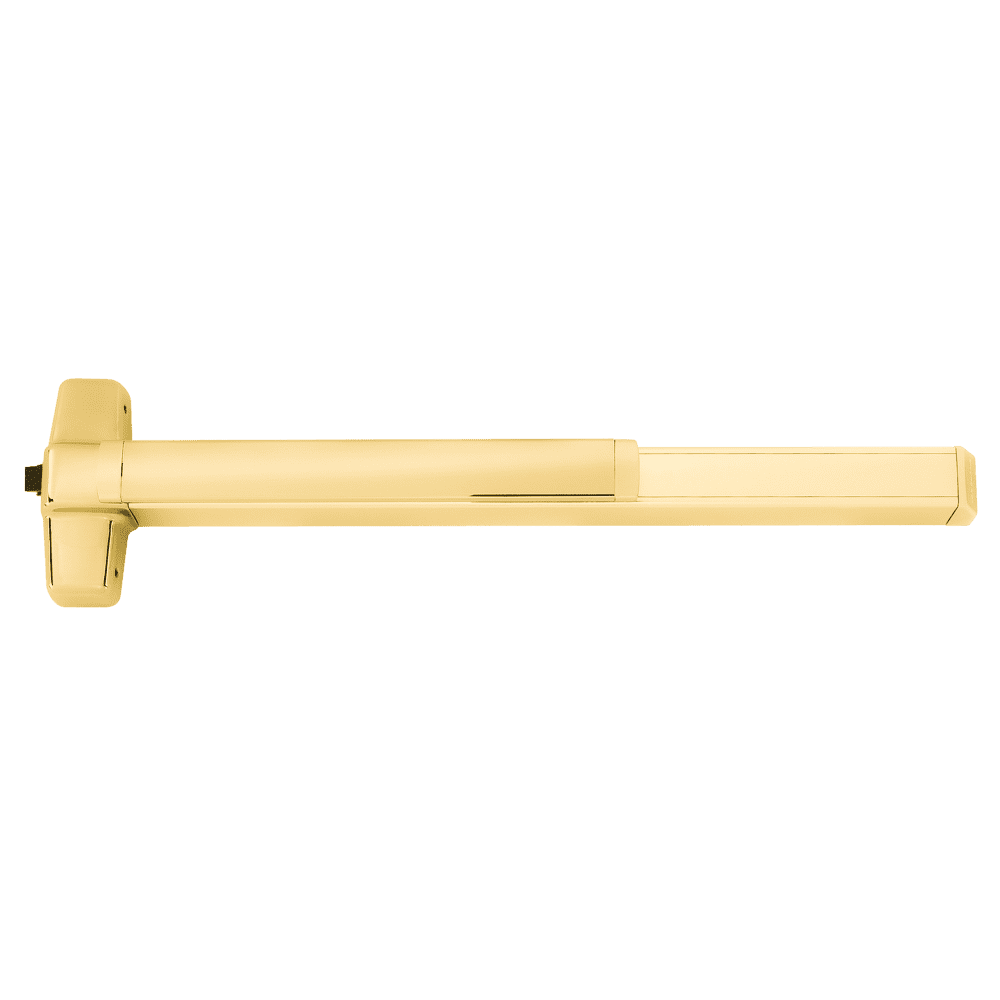

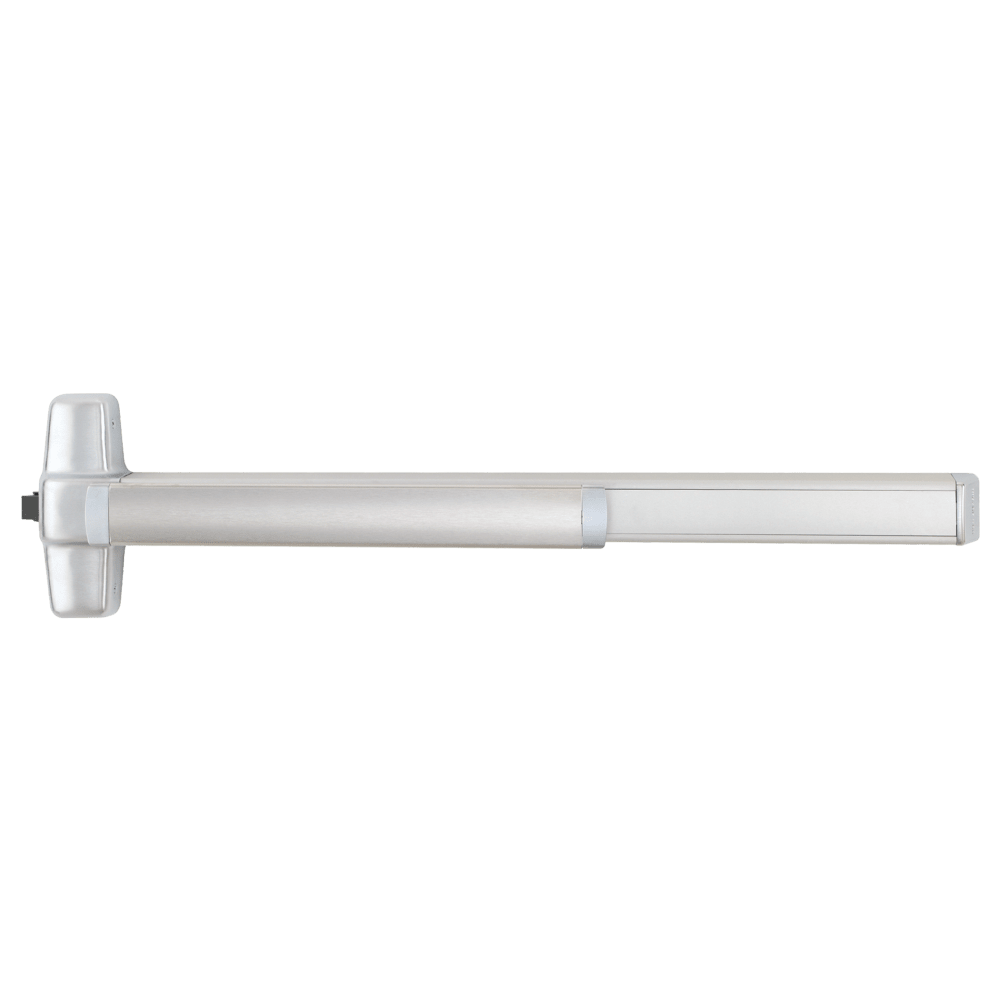

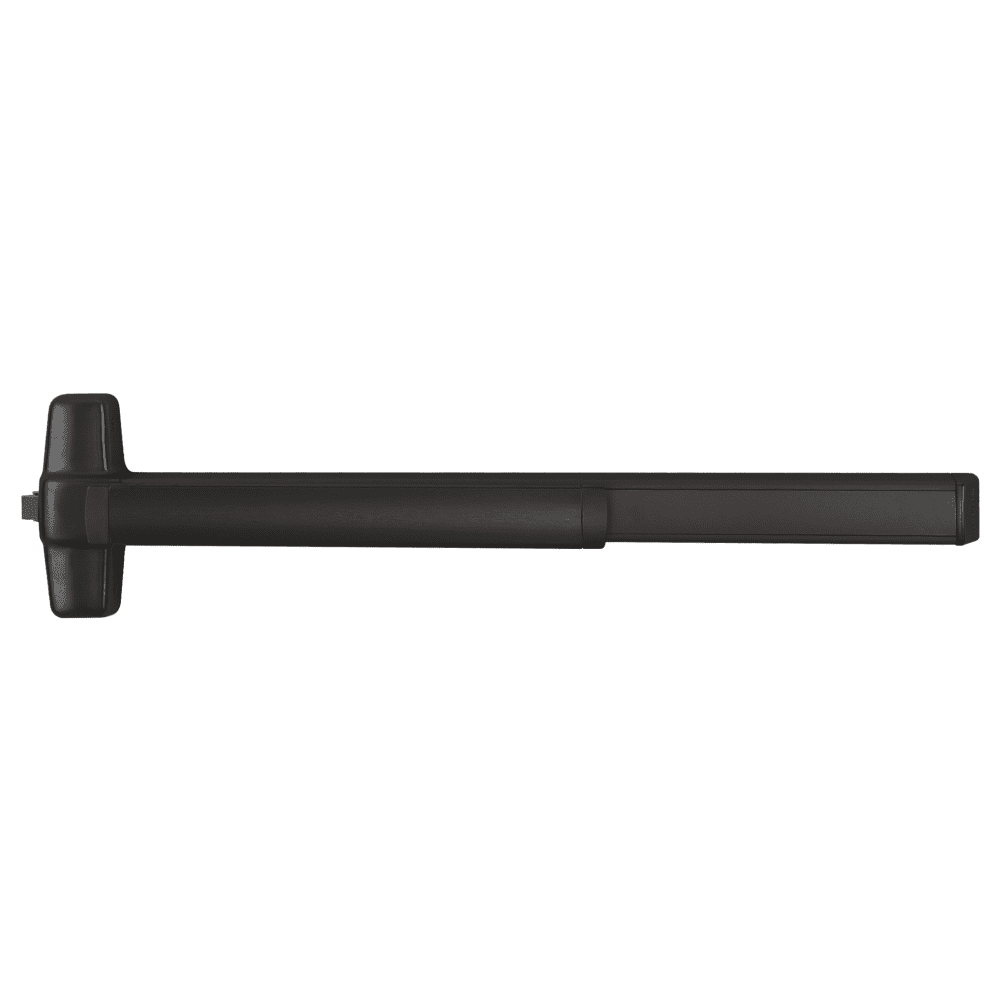

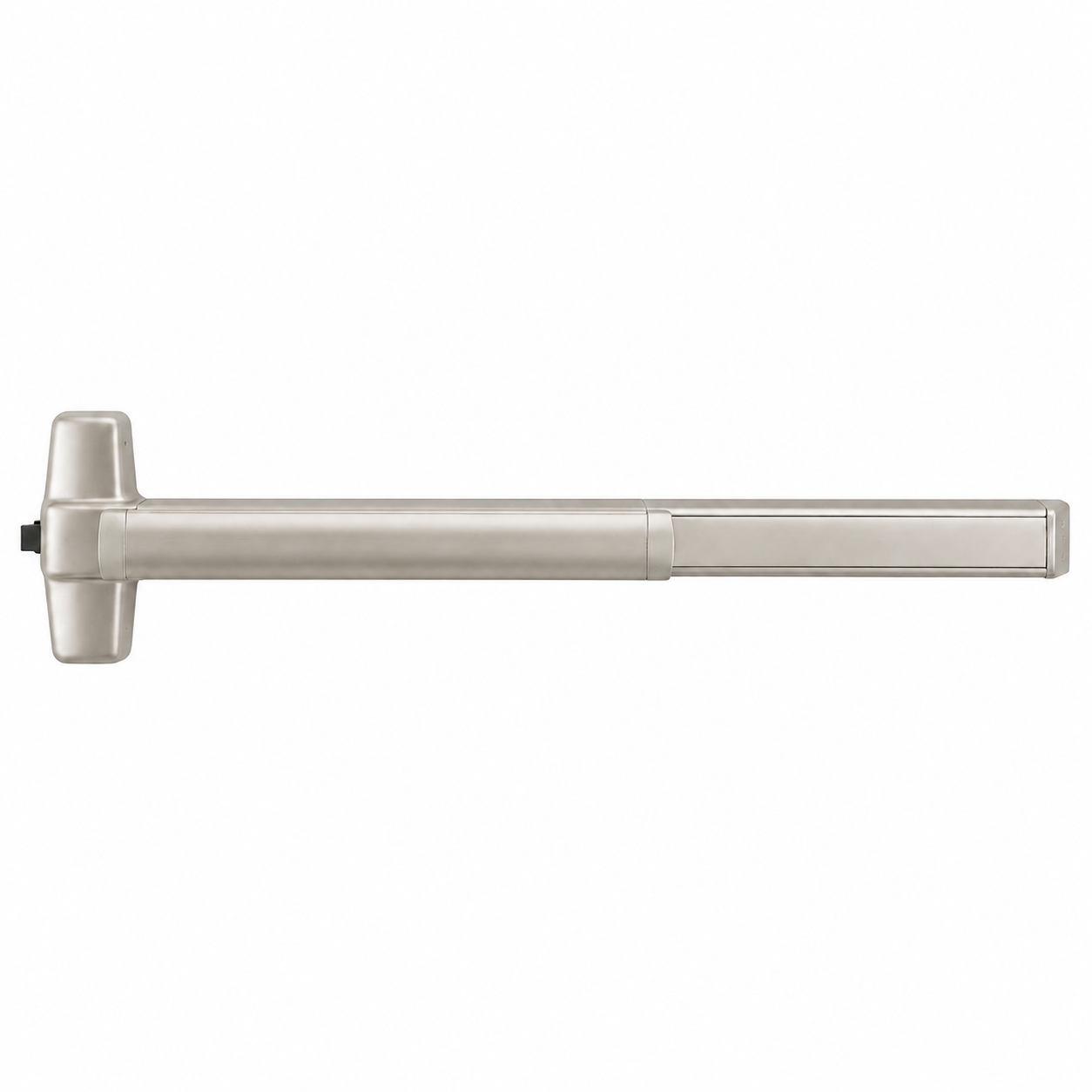

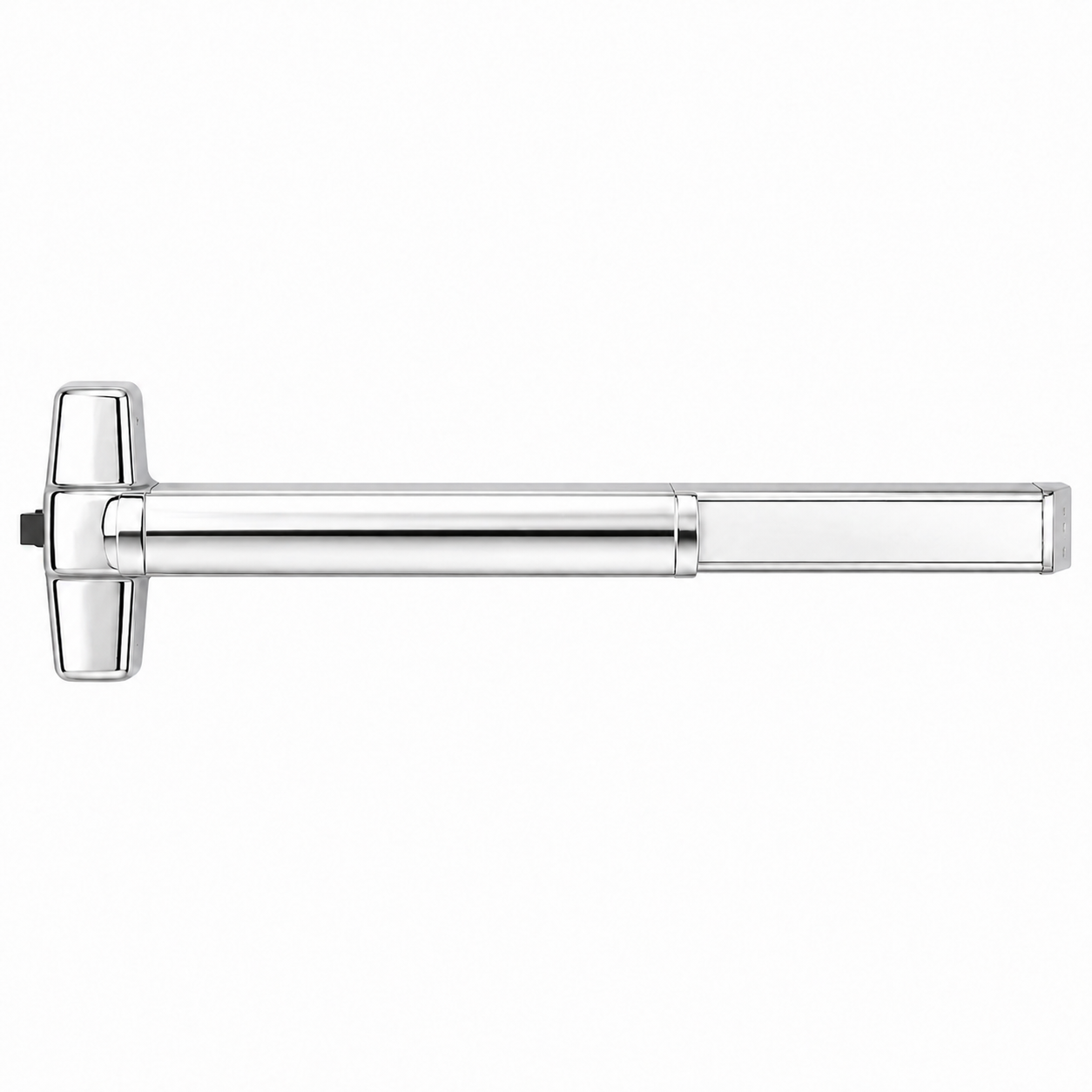

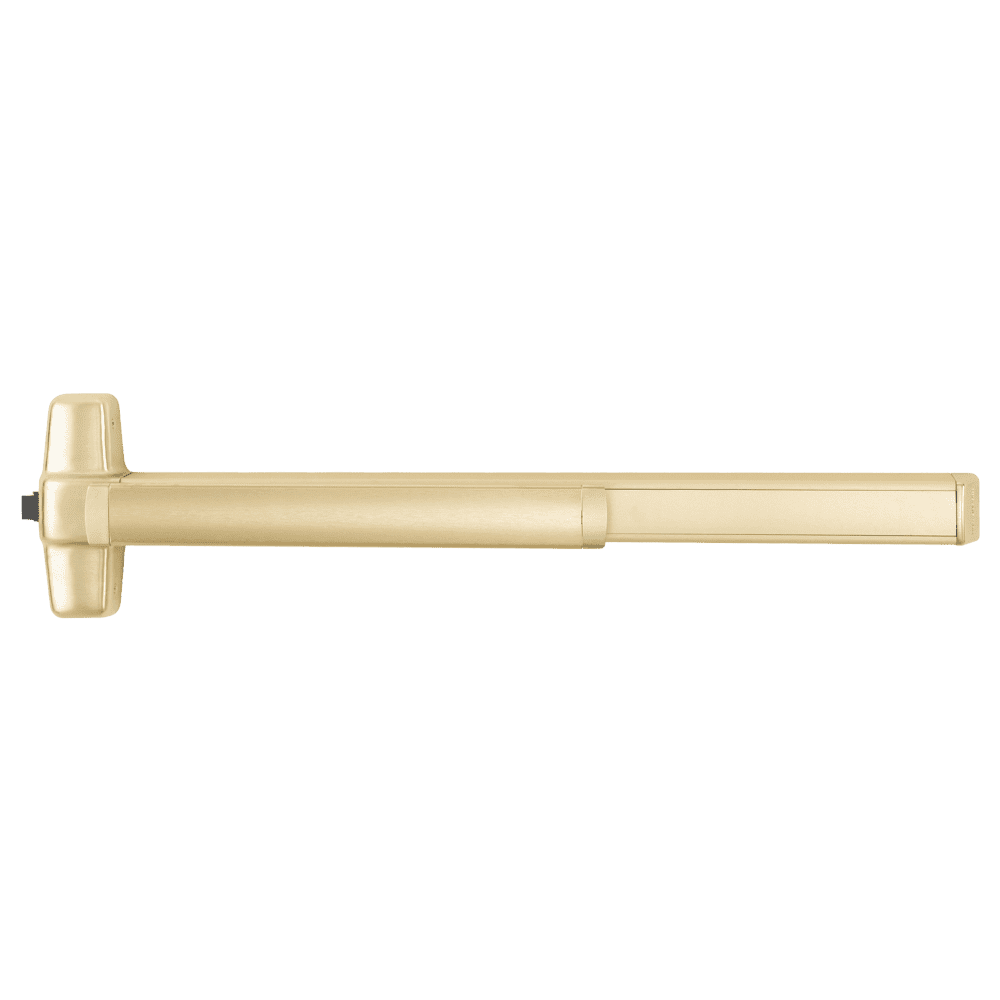

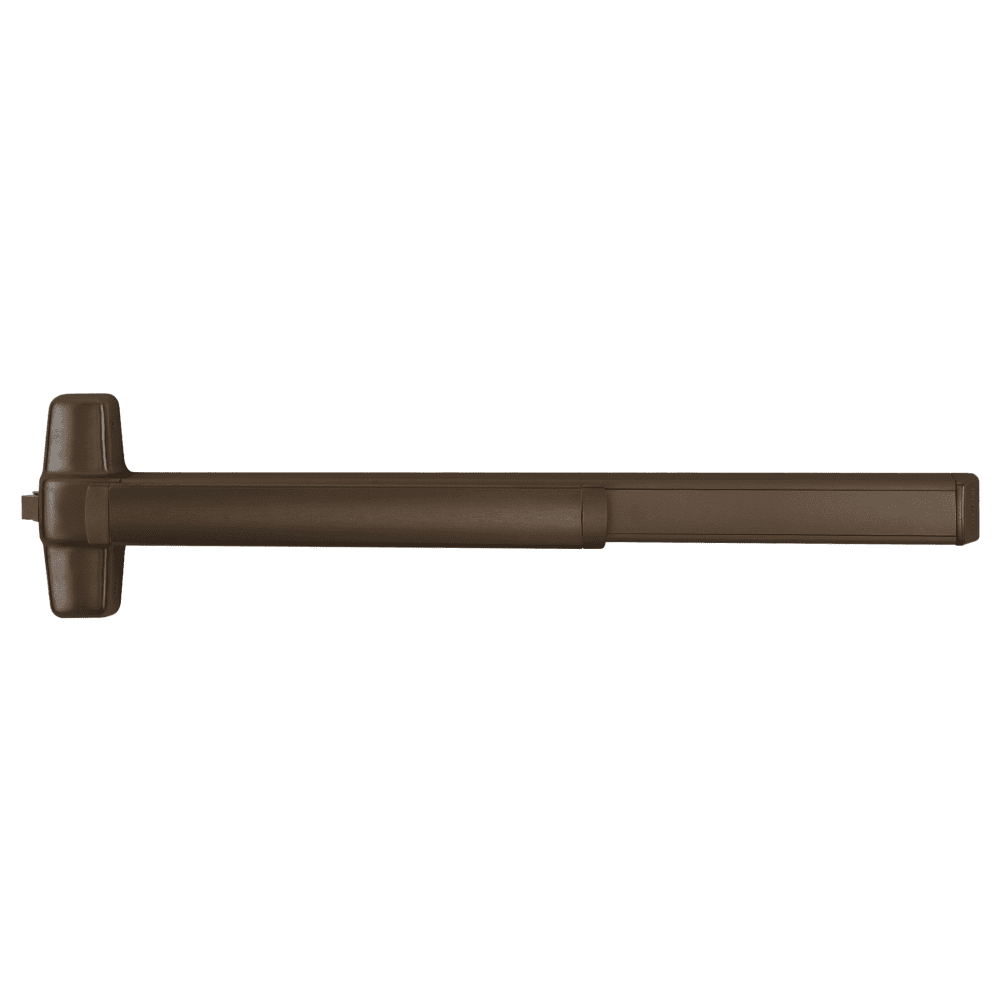

• • 605 (US3), 606 (US4), 612 (US10), 625 (US26), 626 (US26D) / 626AM, 628 (US28), 710 (313), 711 (315), 613 (US10B) and 643e (619 (US15) and 630 (US32D) available with 98 Series only)

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors;
  • Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking

Features and Options

Electrified Options

• • LX - Latch bolt monitor switch
  • RX - Request to exit
  • RX2 - Double request to exit
  • ESL - Emergency secure lockdown
  • QEL - Quiet electric latch retraction
  • SS - Signal switch
  • CXA - Chexit delayed exit
  • ALK - Alarm exit kit
  • WPRX - Waterproof request to exit (option available to order with Outdoor Defense)
  • CON - Allegion Connect
  • LXRX - Request to Exit/Latch Bolt Monitoring combination
  • RXLC - Request to Exit Low Current
  • LXLC - Latch Bolt Monitoring Low Current
  • LXRXLC - Request to Exit/Latch Bolt Monitoring combination Low Current
  • RXQEL - Request to exit / Quiet electric latch retraction
  • LXQEL - Latch bolt monitor switch / Quiet electric latch retraction
  • LXRXQEL - Request to Exit/Latch Bolt Monitoring combination / Quiet electric latch retraction
  • LXRXLCQEL - Request to Exit/Latch Bolt Monitoring combination / Low Curent / Quiet electric latch retraction

Mechanical Options

• • -2 - Double cylinder
  • -2SI - Double cylinder with security indicator
  • AX - Accessible device
  • GBK - Glass bead kit
  • OUT - Outdoor defense
  • PN - Pneumatic latch retraction
  • QM - Quiet mechanical
  • SNB - Sex bolts
  • SEC - Security screws
  • SLM - Special laminate material blocking
  • WH - Weep holes (option available to order with Outdoor Defense)

Strike

• • 299F Strike - Ships standard, optional strikes available (Dull Black)
  • 499F Strike - With 9854/9954 mullion
