Product Overview:

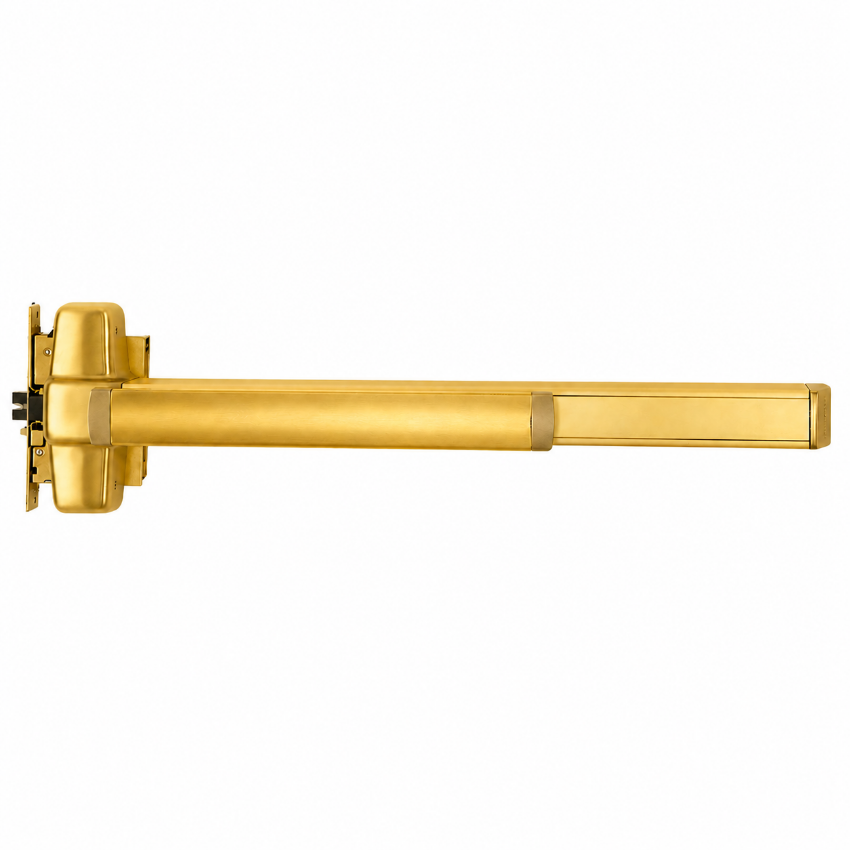

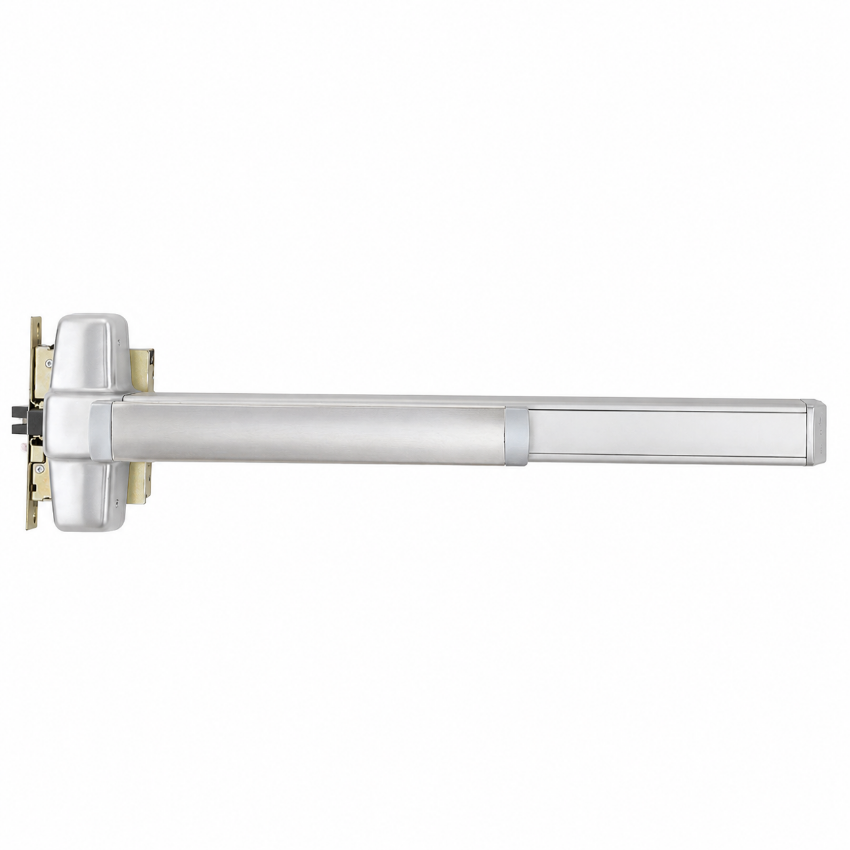

• 9875-F/9975-F Fire exit mortise lock devices are certified to ANSI/BHMA A156.3 Grade 1 and UL listed for fire exit hardware.
•  Fits door stiles as narrow as 4 3⁄4" (121mm).
• The mortise lock device is non-handed except when the following device options are used: -2 (double cylinder), -2SI (double cylinder with security indicator) or SS (signal switch) devices.
• The 7500 Mortise lock is equipped with 3⁄4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door.
• It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

Specifications:

Device Functions:

• • Device ships setup for EO/DT/NL functions.
  • Instructions show how to set up the device in the field for use with TP, K, and L classroom function trims

Device Length

• • 36" - 2'4" to 3' (711mm to 914mm) Door size
  • 48" - 2'10" to 4' (864mm to 1219mm) Door size

Device Centerline from finished floor

• • 39 5/8" (1006mm)

Center case

• • 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case

• • 2 1/4" x 2 1/4" (57mm x 57mm)

Projection

• • Pushbar neutral – 3 13/16" (97mm)
    Pushbar depressed – 3 1/16" (78mm)

Latch bolt

• • Deadlocking, 3/4" (19mm) throw

Finishes

• • 605 (US3), 606 (US4), 612 (US10), 625 (US26), 626 (US26D) / 626AM, 628 (US28), 710 (313), 711 (315), 613 (US10B) and 643e (619 (US15) and 630 (US32D) available with 98 Series only)

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors.
  • Optional 425 SNB available for metal doors. 425 and 825 SNB required on wood doors without SLM blocking.

Features and Options

Electrified Options

• • QEL - Quiet electric latch retraction
  • CXA - Chexit delayed exit
  • LX - Latch bolt monitor switch
  • RX - Request to exit
  • RX2 - Double request to exit
  • ESL - Emergency secure lockdown
  • SS - Signal switch
  • ALK - Alarm exit kit
  • WPRX - Waterproof request to exit (option available to order with Outdoor Defense)
  • CON - Allegion Connect
  • LXRX - Request to Exit/Latch Bolt Monitoring combination
  • RXLC - Request to Exit Low Current
  • LXLC - Latch Bolt Monitoring Low Current
  • LXRXLC - Request to Exit/Latch Bolt Monitoring combination Low Current
  • RXQEL - Request to exit / Quiet electric latch retraction
  • LXQEL - Latch bolt monitor switch / Quiet electric latch retraction
  • LXRXQEL - Request to Exit/Latch Bolt Monitoring combination / Quiet electric latch retraction
  • LXRXLCQEL - Request to Exit/Latch Bolt Monitoring combination / Low Curent / Quiet electric latch retraction

Mechanical Options

• • -2 - Double cylinder
  • -2SI - Double cylinder with security indicator
  • GBK - Glass bead kit
  • PN - Pneumatic latch retraction
  • SNB - Sex bolts
  • SEC - Security screws
  • SLM - Special laminate material blocking
  • WH - Weep holes (option available to order with Outdoor Defense)

Strike

• • 575 Strike - Dull Black
