Product Overview:

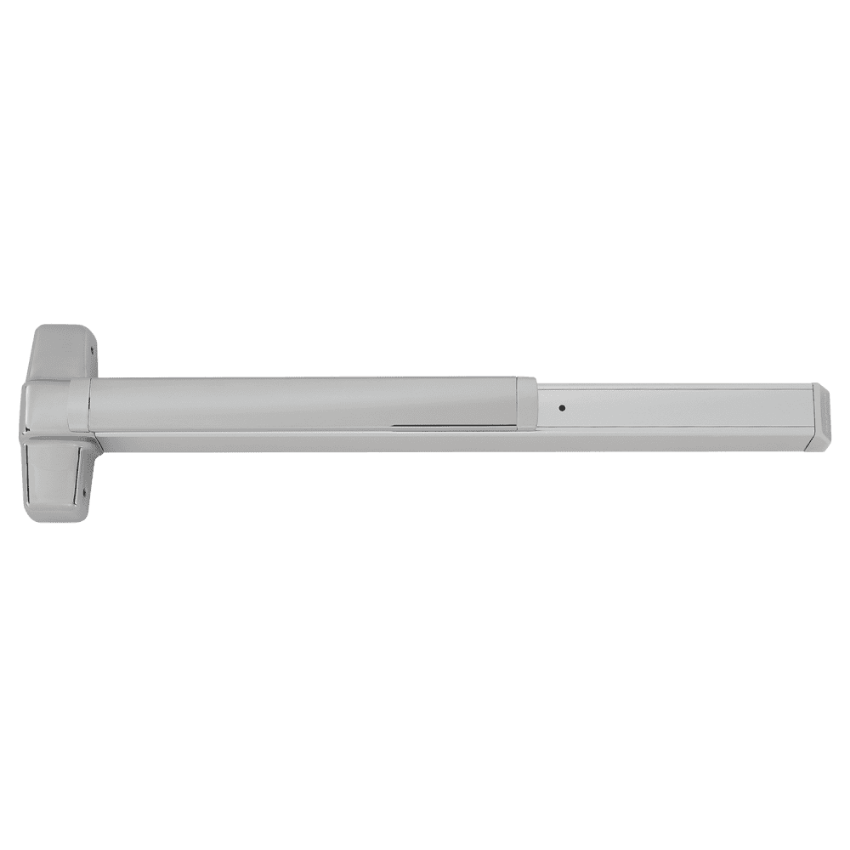

• 9850WDC/9950WDC Concealed vertical cable device for use on single or double wood doors, UL listed for panic exit hardware.
• Devices are certified to ANSI/BHMA A156.3 Grade 1.
• The concealed vertical cable device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).

Click Here for 9850WDC/9950WDCEO-F WDC Vertical Cable Fire Rated Exit Device

Specifications:

Device Functions:

• • Device ships EO/DT/NL; Field selectable;
  • For TP, K or L remove NL drive screw from device

Device Length

• • 36" - 2'4" to 3' (711mm to 914mm) Door size
  • 48" - 2'10" to 4' (864mm to 1219mm) Door size
  • 24" - 2' (610mm) Door size

Device Centerline from finished floor

• • 39 5/8" (1006mm) Standard

Center case

• • 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case

• • 2 1/4" x 2 1/4" (57mm x 57mm)

Projection

• • Pushbar neutral – 3 13/16" (97mm)
  • Pushbar depressed – 3 1/16" (78mm)

Latch bolt

• • Deadlocking top and bottom bolt. 1 1/2" (38mm) throw

Door undercut

• • 3/4" (19mm) maximum

Top and Bottom latch case

• • 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)

Vertical Cables

• • 7/32" (6mm) Diameter stainless steel cables

Scalp plate

• • Device is furnished standard with a 15" (381mm) long scalp plate for easy access to cables

Finishes

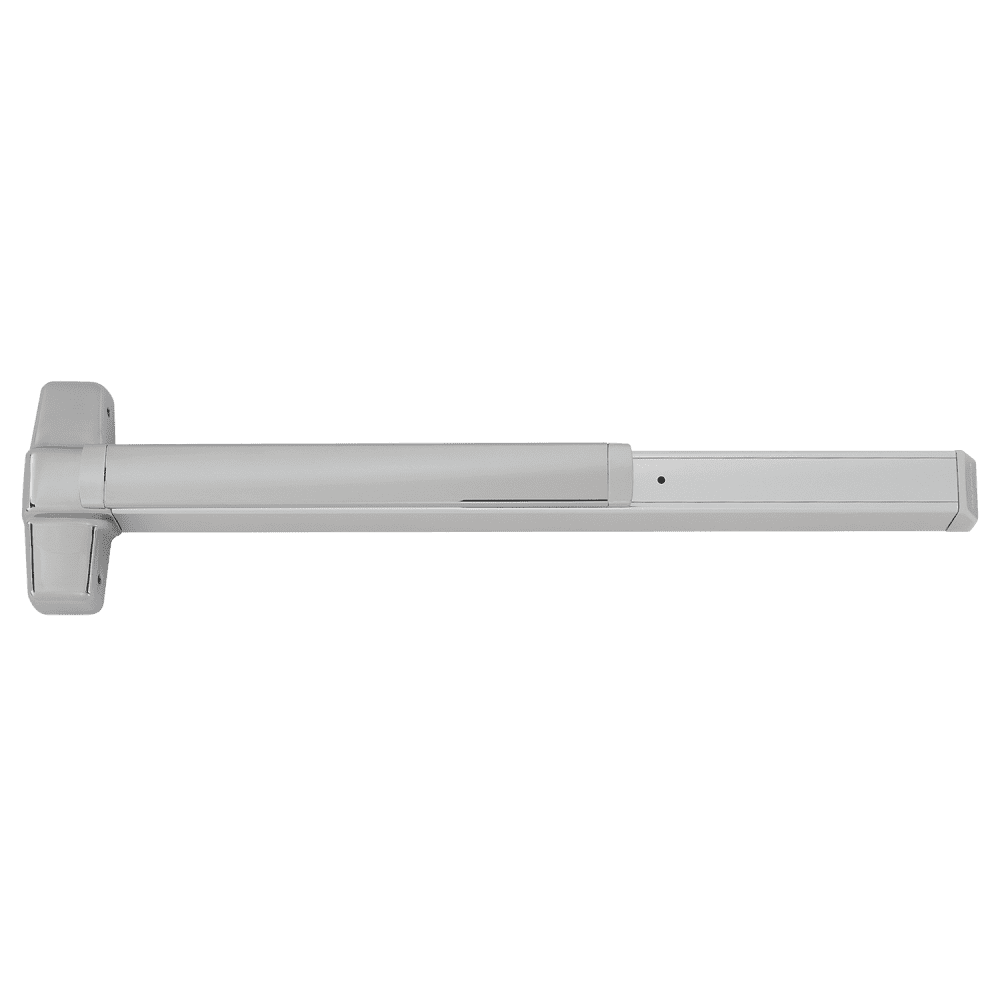

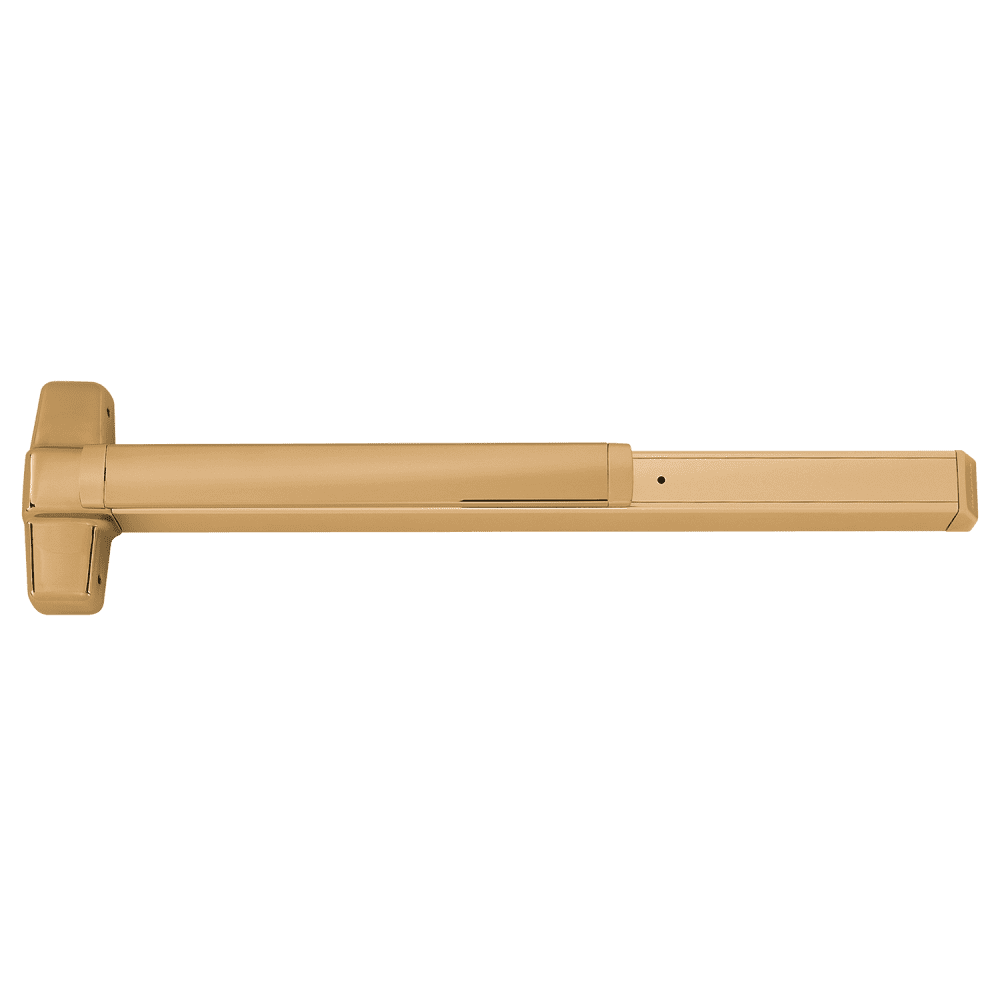

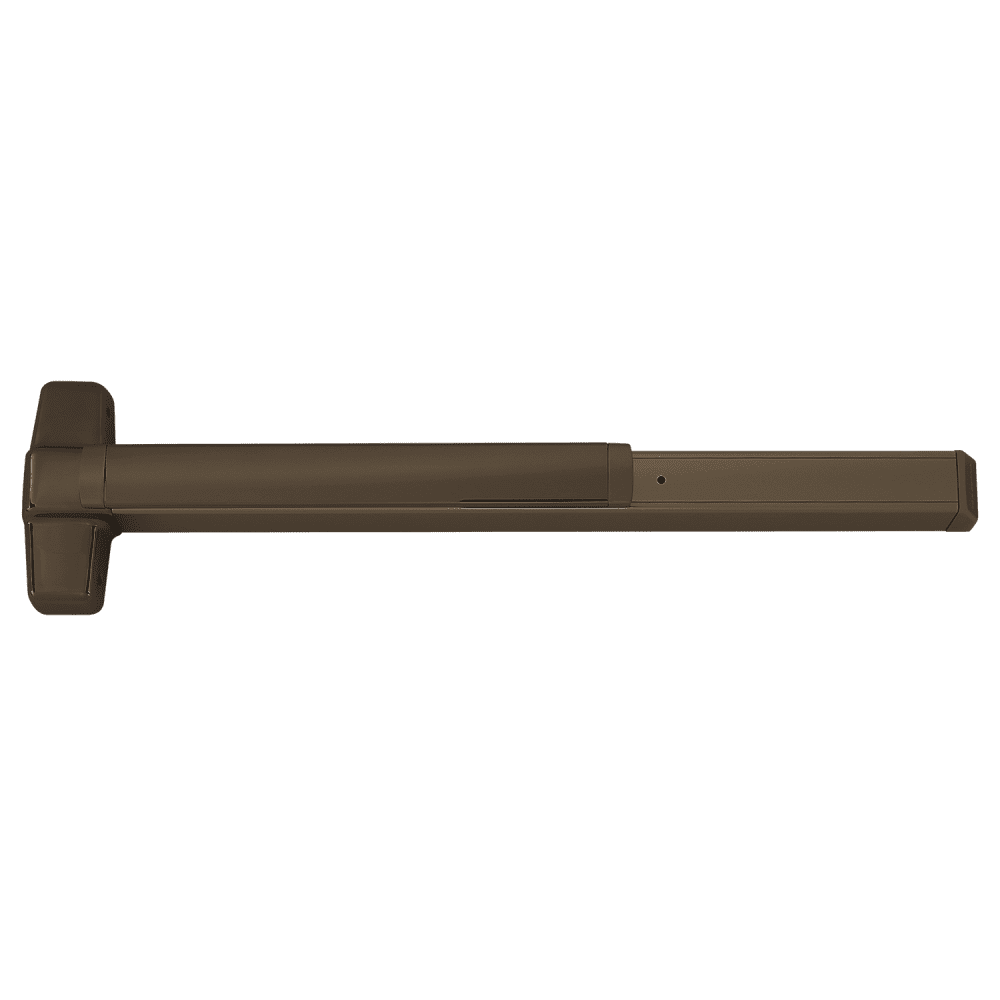

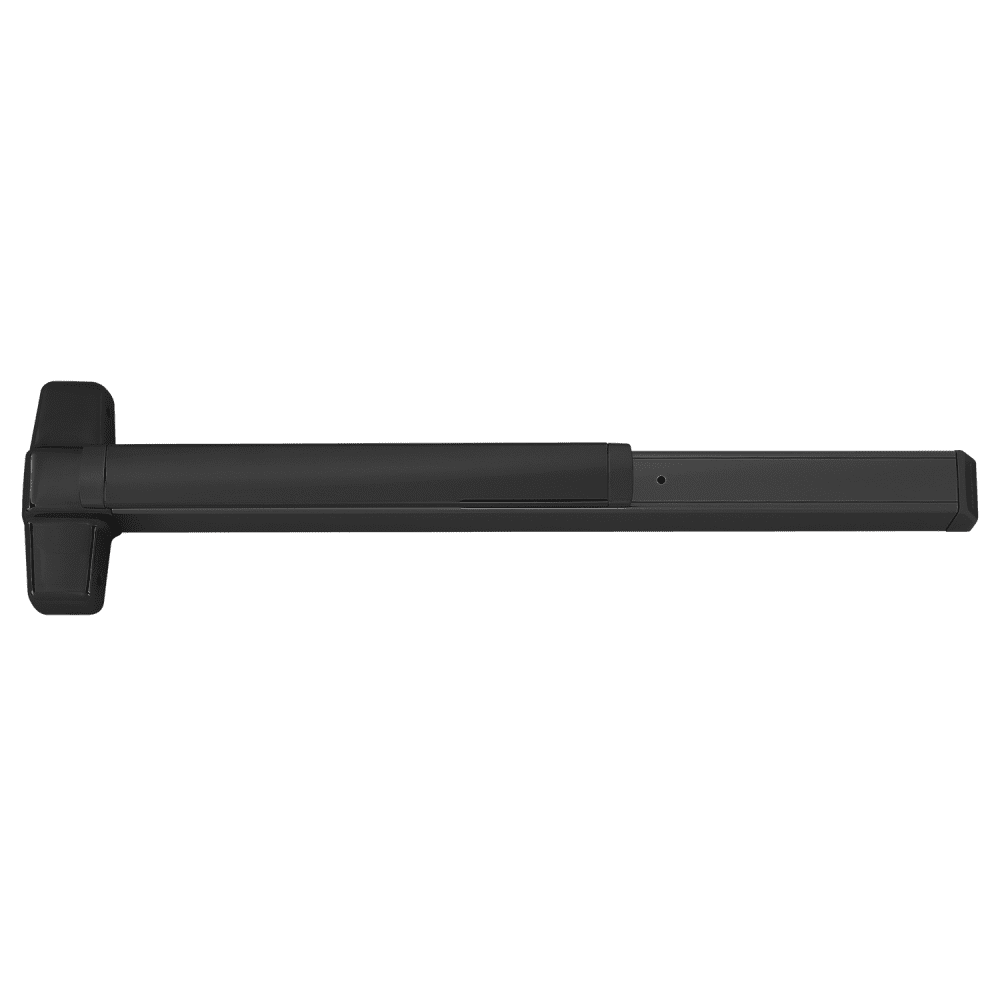

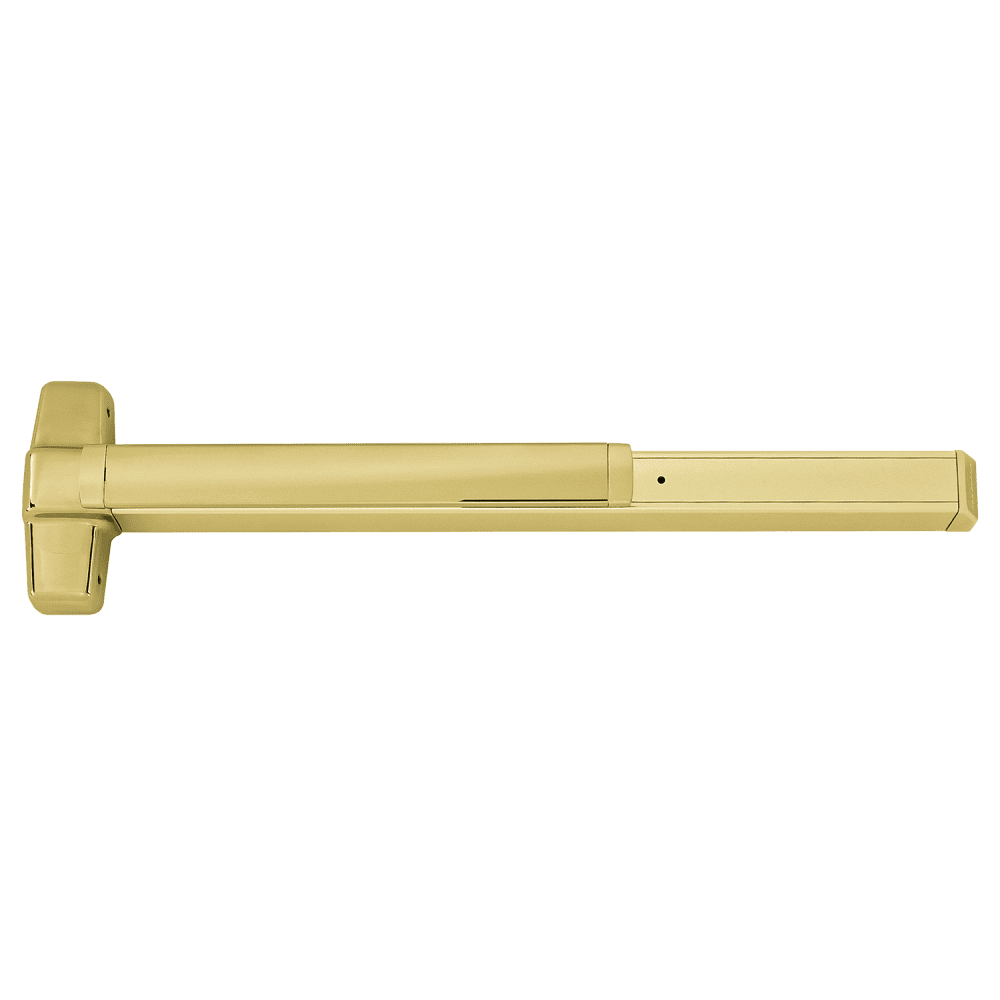

• • 605 (US3), 606 (US4), 612 (US10), 625 (US26), 626 (US26D) / 626AM, 628 (US28), 710 (313), 711 (315), 613 (US10B) and 643e (619 (US15) and 630 (US32D) available with 98 Series only)

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick wood doors.

Features and Options

Electrified Options

• • QEL - Quiet electric latch retraction
  • CXA - Chexit delayed exit
  • LX - Latch bolt monitor switch
  • RX - Request to exit
  • RX2 - Double request to exit
  • ESL - Emergency secure lockdown
  • SS - Signal switch
  • ALK - Alarm exit kit
  • WPRX - Waterproof request to exit (option available to order with Outdoor Defense)
  • CON - Allegion Connect
  • RX996L - Trim monitor switch
  • LXRX - Request to Exit/Latch Bolt Monitoring combination
  • RXLC - Request to Exit Low Current
  • LXLC - Latch Bolt Monitoring Low Current
  • LXRXLC - Request to Exit/Latch Bolt Monitoring combination Low Current
  • RXQEL - Request to exit / Quiet electric latch retraction
  • LXQEL - Latch bolt monitor switch / Quiet electric latch retraction
  • LXRXQEL - Request to Exit/Latch Bolt Monitoring combination / Quiet electric latch retraction
  • LXRXLCQEL - Request to Exit/Latch Bolt Monitoring combination / Low Curent / Quiet electric latch retraction

Mechanical Options

• • AX - Accessible device
  • GBK - Glass bead kit
  • LBL - Less bottom latch
  • PN - Pneumatic latch retraction
  • SNB - Sex bolts
  • SEC - Security screws
  • WH - Weep holes (option available to order with Outdoor Defense)

Dogging Features

• • Hex key dogging standard
  • Comes standard on 9850/9950 concealed vertical cable devices

Dogging options

• • HD - Hex Dogging (Standard)
  • CD - Cylinder dogging
  • CDSI - Cylinder dogging with security indicator
  • HDSI - Hex dogging with security indicator
  • LD - Less dogging
  • DI - Dogging indicator
  • CI - Cylinder dogging indicator
  • SD - Special center case dogging

Strike

• • 150 - Top (Unfinished)
  • 450 - Bottom (Unfinished)
