Product Overview:

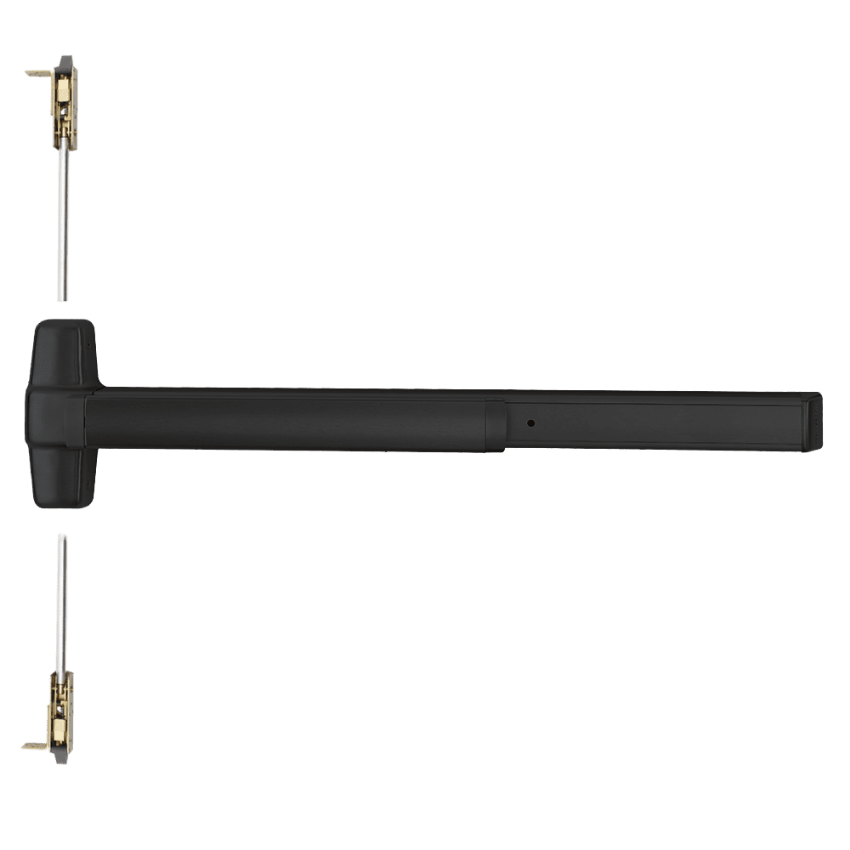

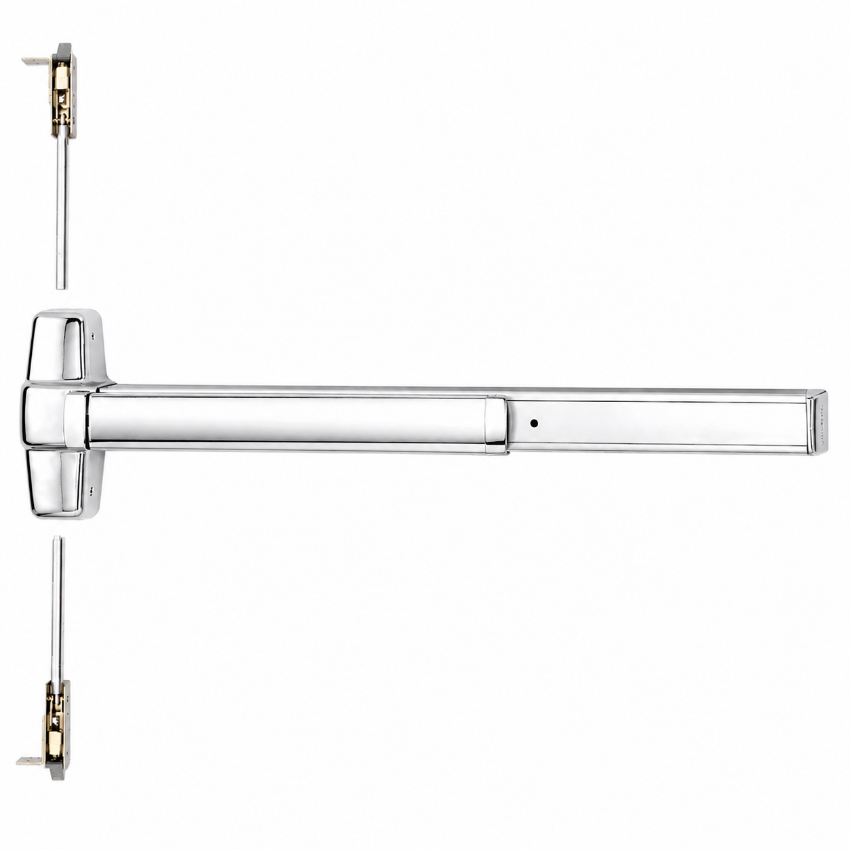

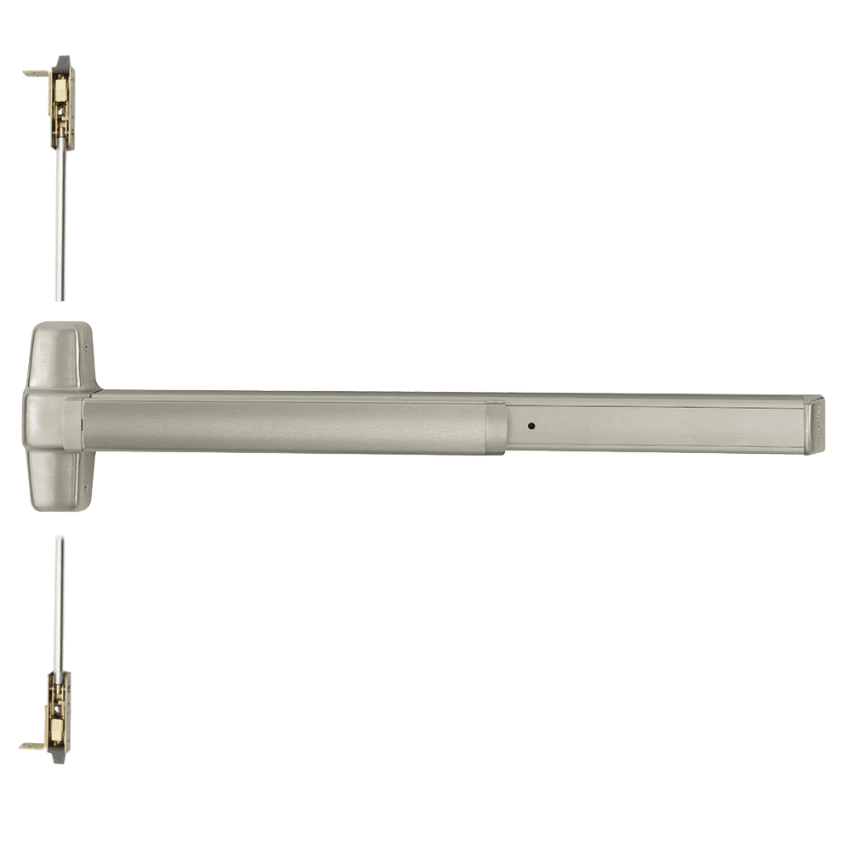

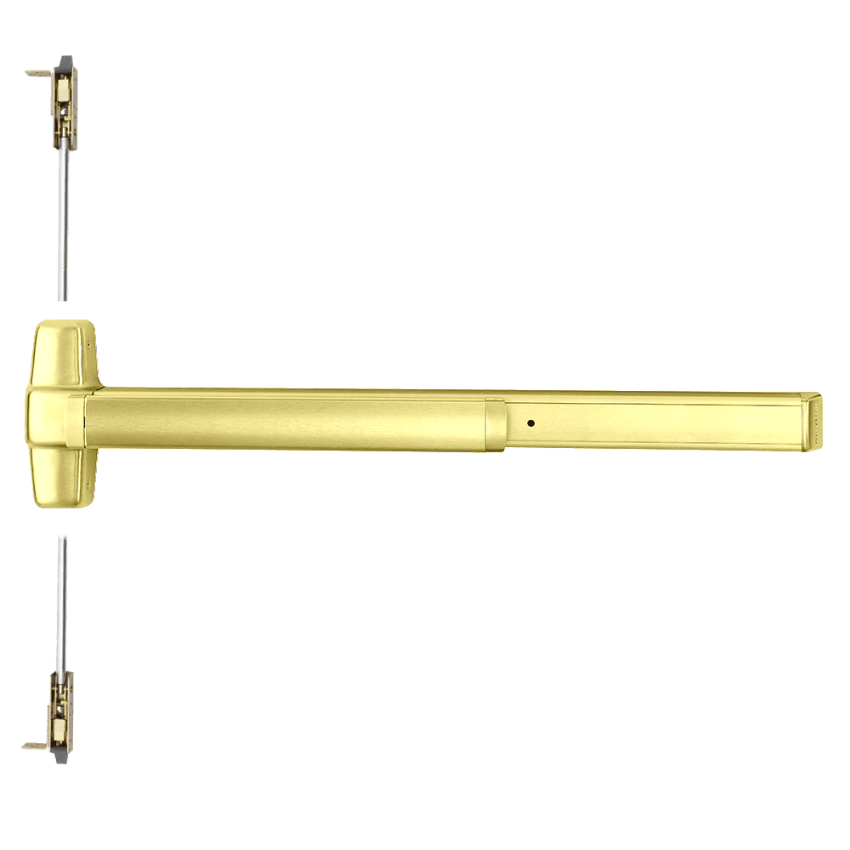

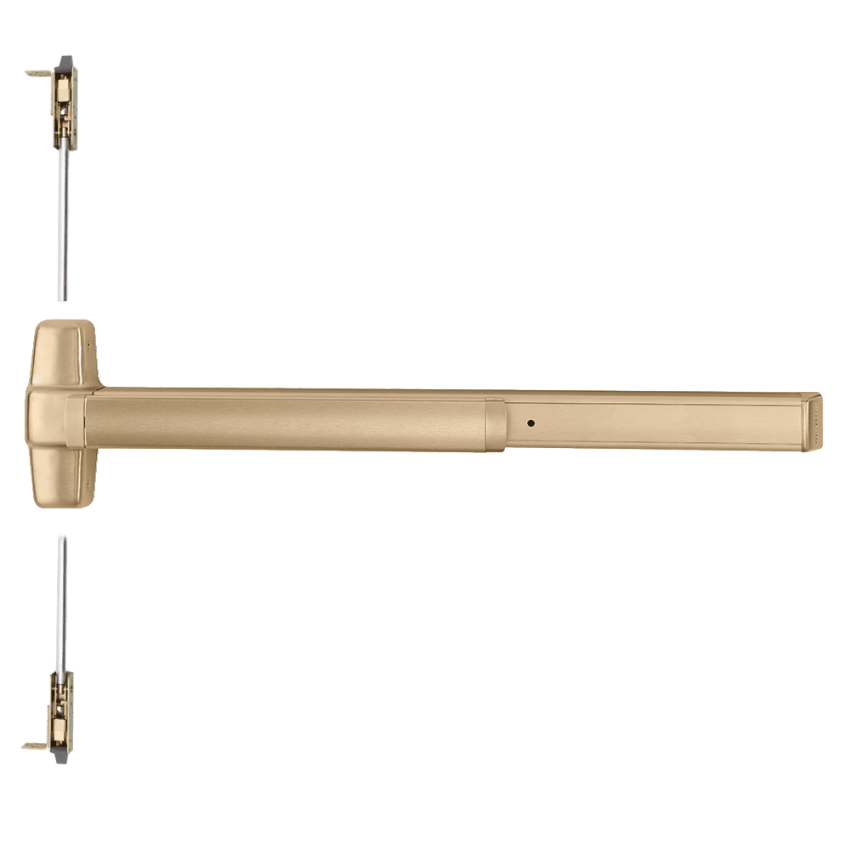

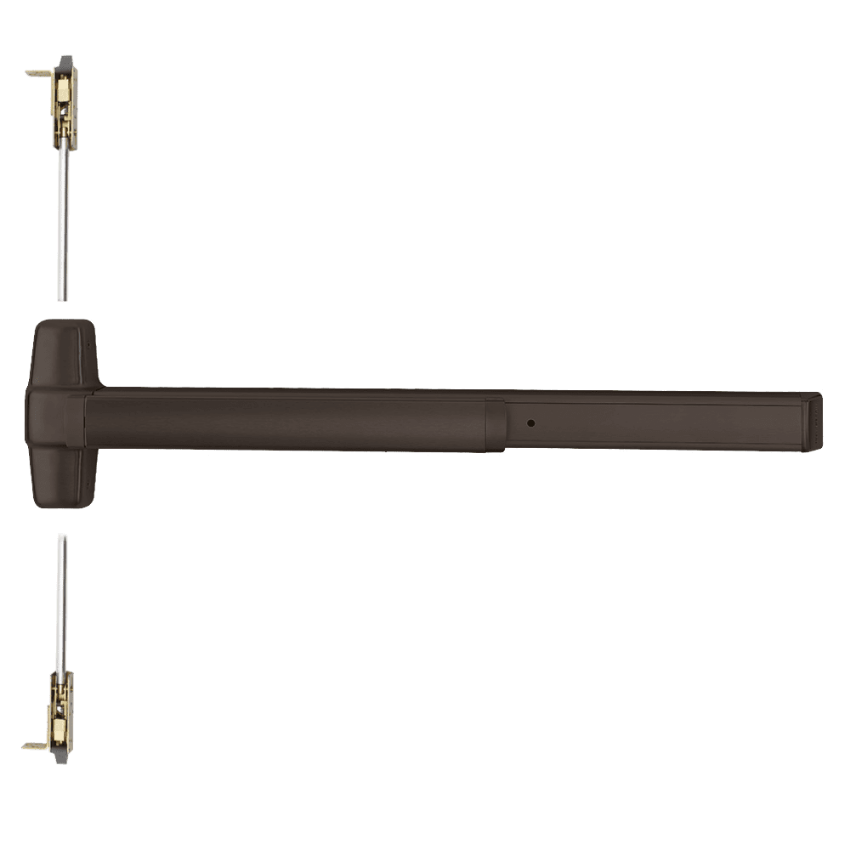

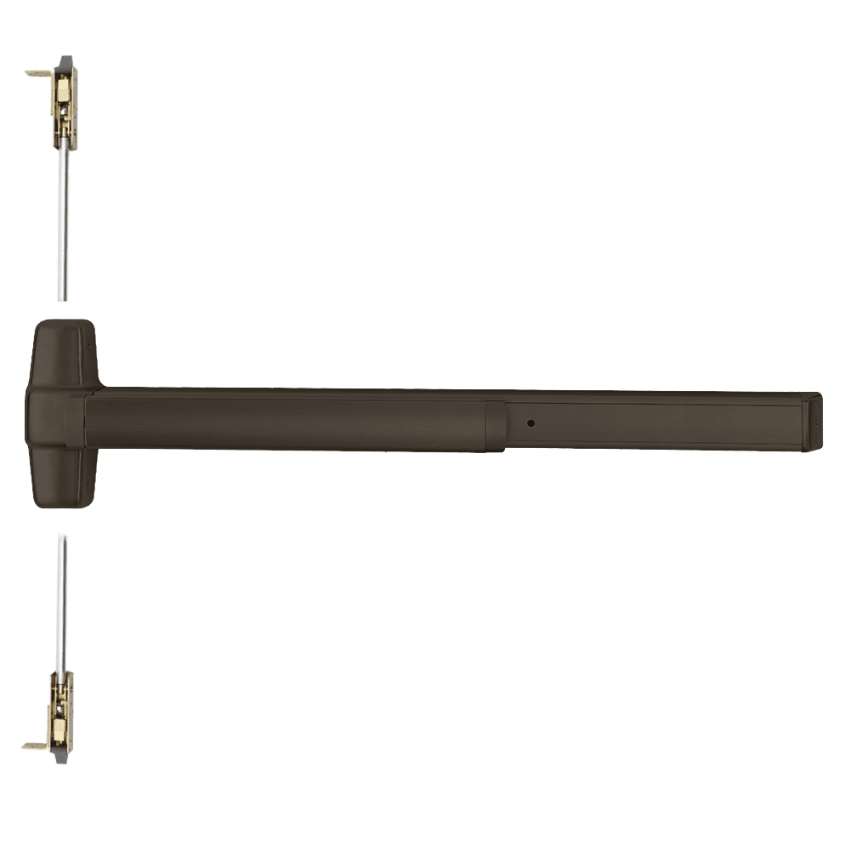

• 9848/9948 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware.
• These are certified to ANSI/BHMA A156.3 Grade 1.
• Covers stock hollow metal doors with 86 or 161 cutouts.
• The concealed vertical rod device is non-handed except when the following device options are used: -2 (double cylinder), -2SI (double cylinder with security indicator), SD (special dogging), or SS (signal switch).

Click Here for 9848/9948EO-F CVR Fire Rated Exit Device

Specifications:

Device Functions:

• • Device ships EO/DT/NL; Field selectable;
  • For TP, K or L remove NL drive screw from device

Device Length

• • 36" - 2'4" to 3' (711mm to 914mm) Door size
  • 48" - 2'10" to 4' (864mm to 1219mm) Door size
  • 24" - 2' (610mm) Door size

Device Centerline from finished floor

• • 39 5/8" (1006 mm) Standard
  • Adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)

Center case

• • 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case

• • 2 1/4" x 2 1/4" (57mm x 57mm)

Projection

• • Pushbar neutral – 3 13/16" (97mm)
  • Pushbar depressed – 3 1/16" (78mm)

Latch bolt

• • Deadlocking top bolt, 5⁄8" (16mm) throw
  • Deadlocking bottom bolt, 1 1/2" (38mm) throw

Door undercut

• • 3/4" (19mm) maximum, more than 1/4" minimum

Top and Bottom latch case

• • 4 1/4" x 1 1/2" x 1 1/8" (107mm x 38mm x 28mm)

Vertical Rods

• • Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm).
  • Bottom rod adjustable 35 5/8" (905mm) to 49 5/8" (1260mm).
  • Extension rod kits available for doors over 8'4" (2533mm)

Finishes

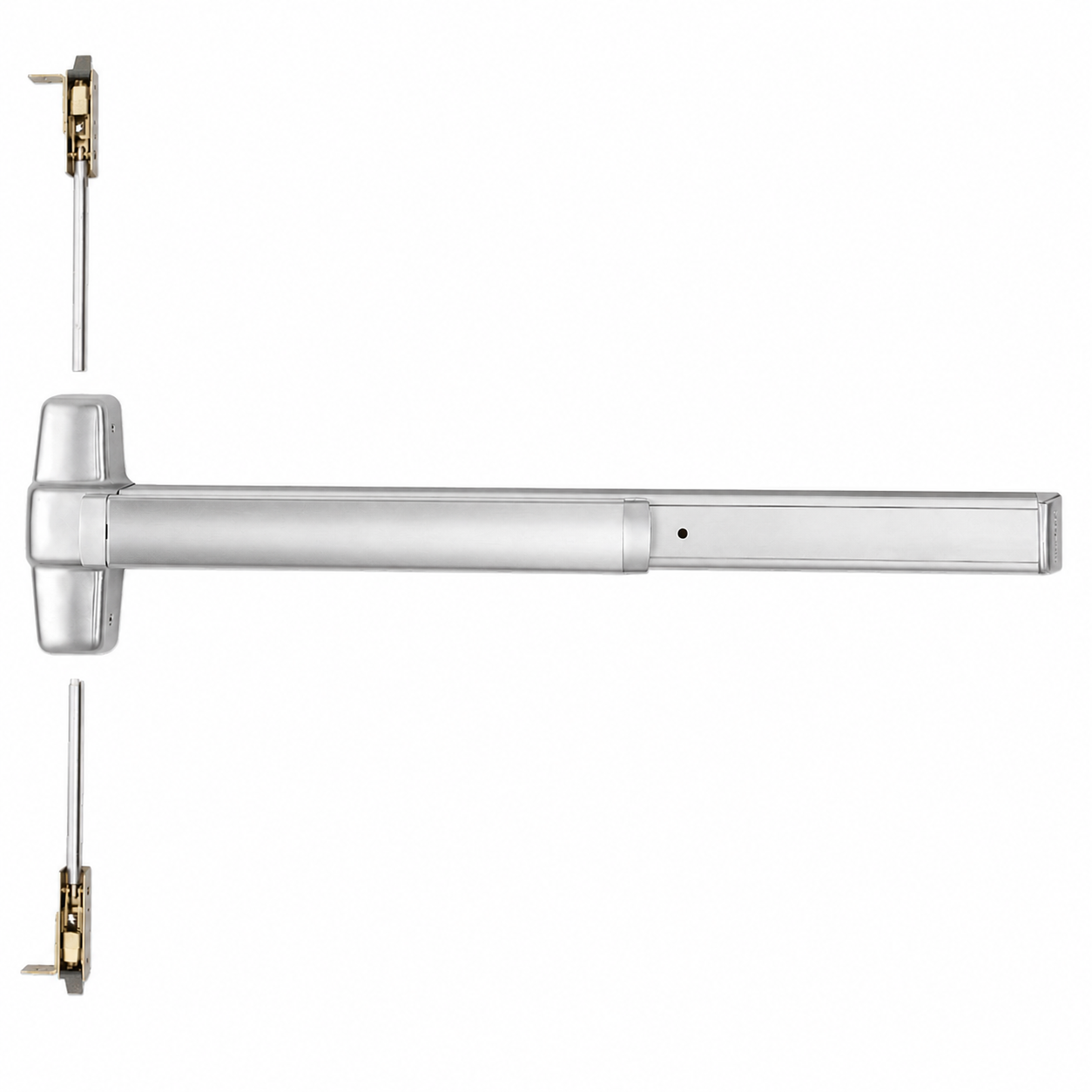

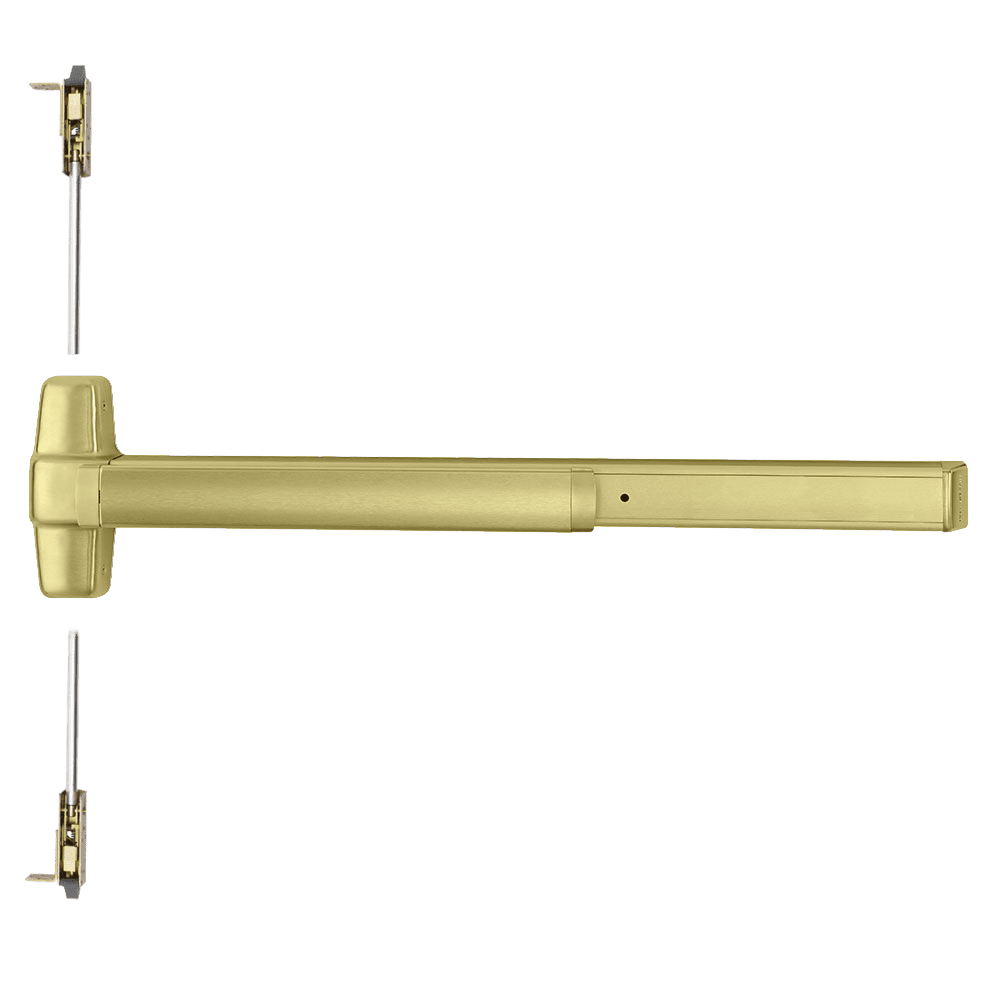

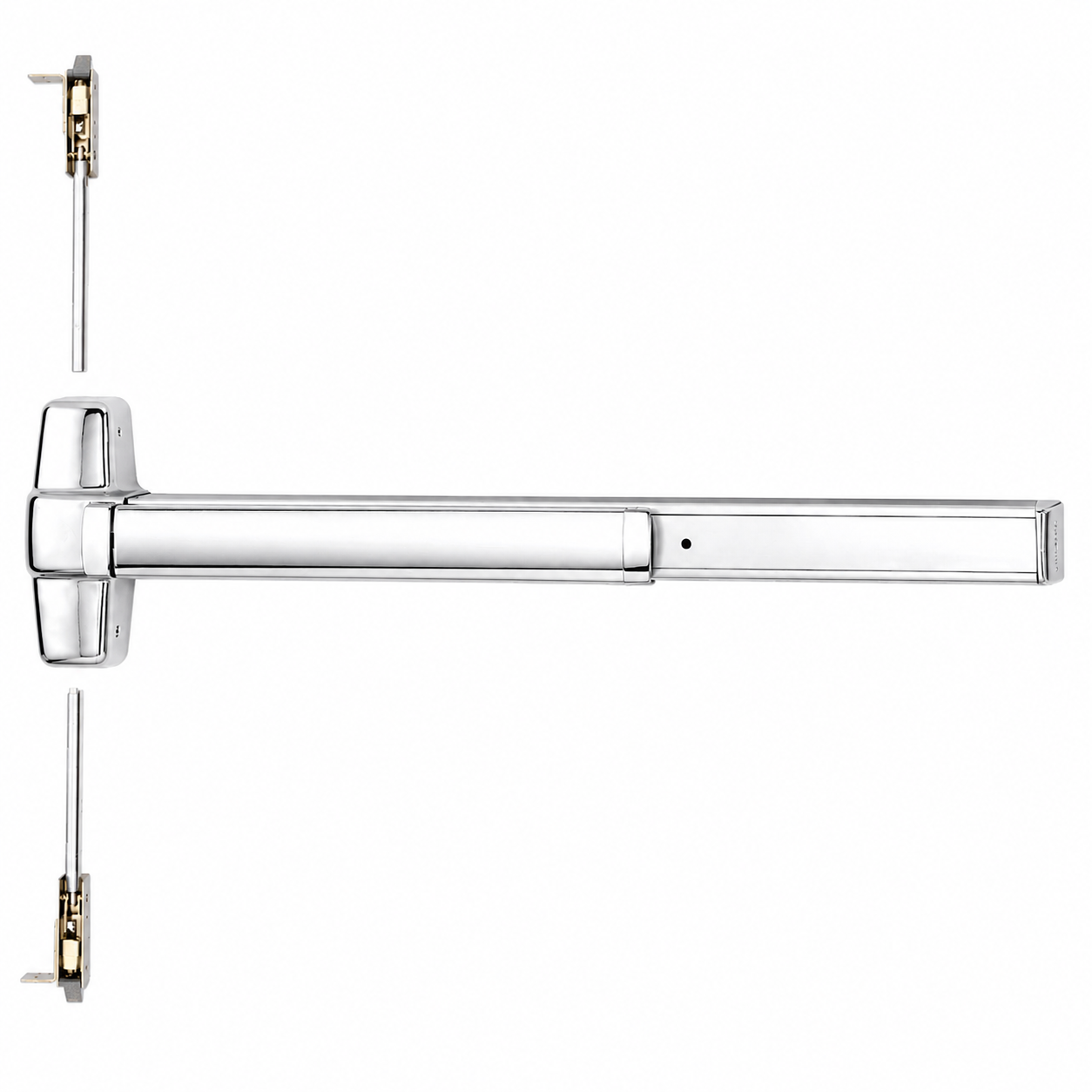

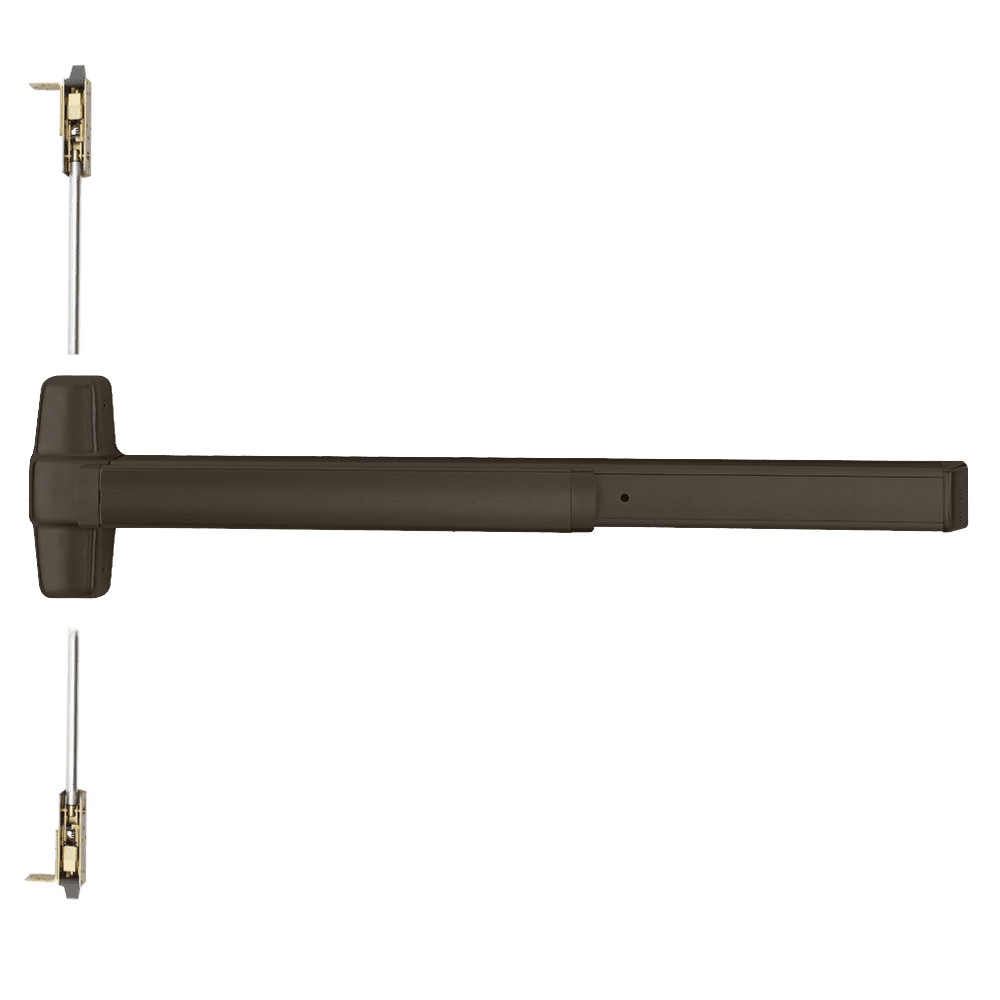

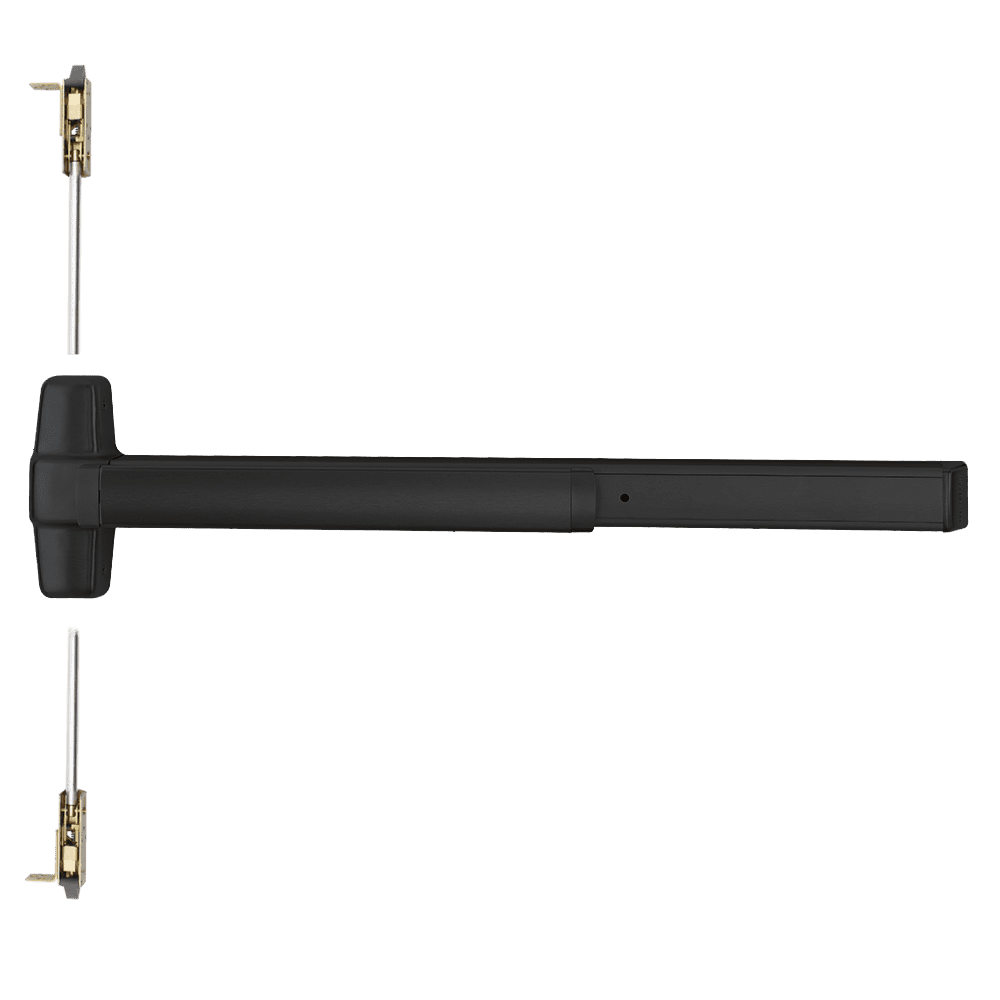

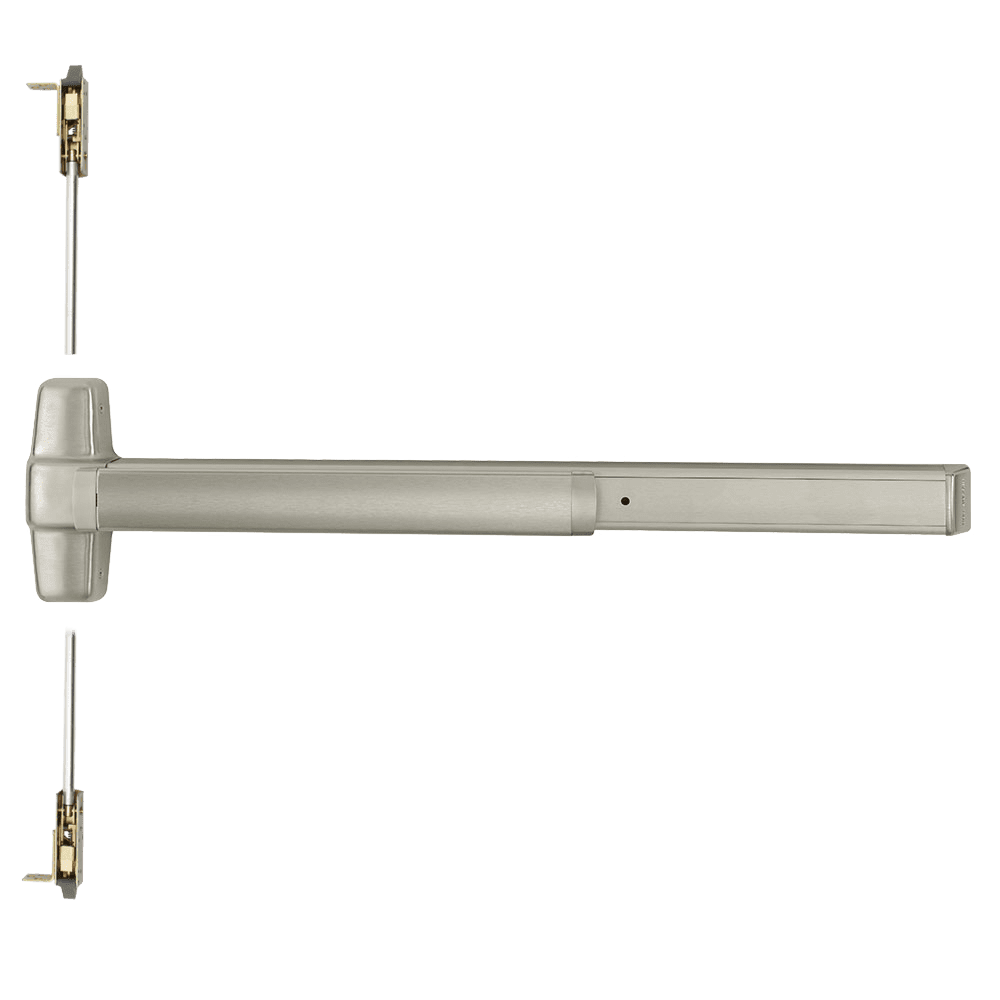

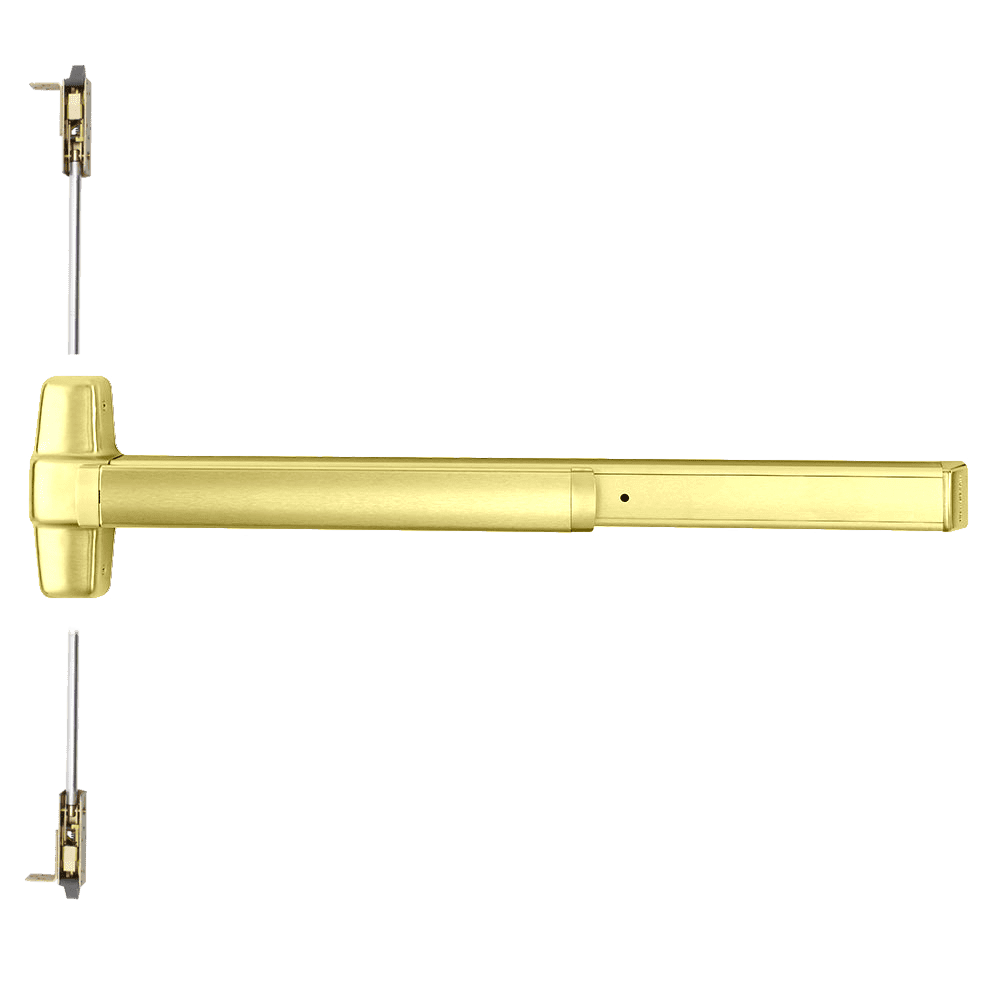

• • 605 (US3), 606 (US4), 612 (US10), 625 (US26), 626 (US26D) / 626AM, 628 (US28), 710 (313), 711 (315), 613 (US10B) and 643e (619 (US15) and 630 (US32D) available with 98 Series only)

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1 3⁄4" (44mm) to 2 1/4" (57mm) thick metal doors
  • Optional 425 SNB available

Features and Options

Electrified Options

• • QEL - Quiet electric latch retraction
  • CXA - Chexit delayed exit
  • LX - Latch bolt monitor switch
  • RX - Request to exit
  • RX2 - Double request to exit
  • ESL - Emergency secure lockdown
  • SS - Signal switch
  • ALK - Alarm exit kit
  • WPRX - Waterproof request to exit (option available to order with Outdoor Defense)
  • CON - Allegion Connect
  • LXRX - Request to Exit/Latch Bolt Monitoring combination
  • RXLC - Request to Exit Low Current
  • LXLC - Latch Bolt Monitoring Low Current
  • LXRXLC - Request to Exit/Latch Bolt Monitoring combination Low Current
  • RXQEL - Request to exit / Quiet electric latch retraction
  • LXQEL - Latch bolt monitor switch / Quiet electric latch retraction
  • LXRXQEL - Request to Exit/Latch Bolt Monitoring combination / Quiet electric latch retraction
  • LXRXLCQEL - Request to Exit/Latch Bolt Monitoring combination / Low Curent / Quiet electric latch retraction

Mechanical Options

• • -2 - Double cylinder
  • -2SI - Double cylinder with security indicator
  • GBK - Glass bead kit
  • PN - Pneumatic latch retraction
  • SNB - Sex bolts
  • SEC - Security screws
  • WH - Weep holes (option available to order with Outdoor Defense)

Dogging Features

• • Hex key dogging standard
  • Comes standard on 9848/9948 concealed vertical rod devices

Dogging options

• • HD - Hex Dogging (Standard)
  • CD - Cylinder dogging
  • CD-CXA - Chexit cylinder dogging
  • CDSI - Cylinder dogging with security indicator
  • HDSI - Hex dogging with security indicator
  • SD - Special center case dogging
  • LD - Less dogging
  • DI - Dogging indicator
  • CI - Cylinder dogging indicator

Strike

• • 338 - Top (Unfinished)
  • 385A - Bottom (Unfinished)
